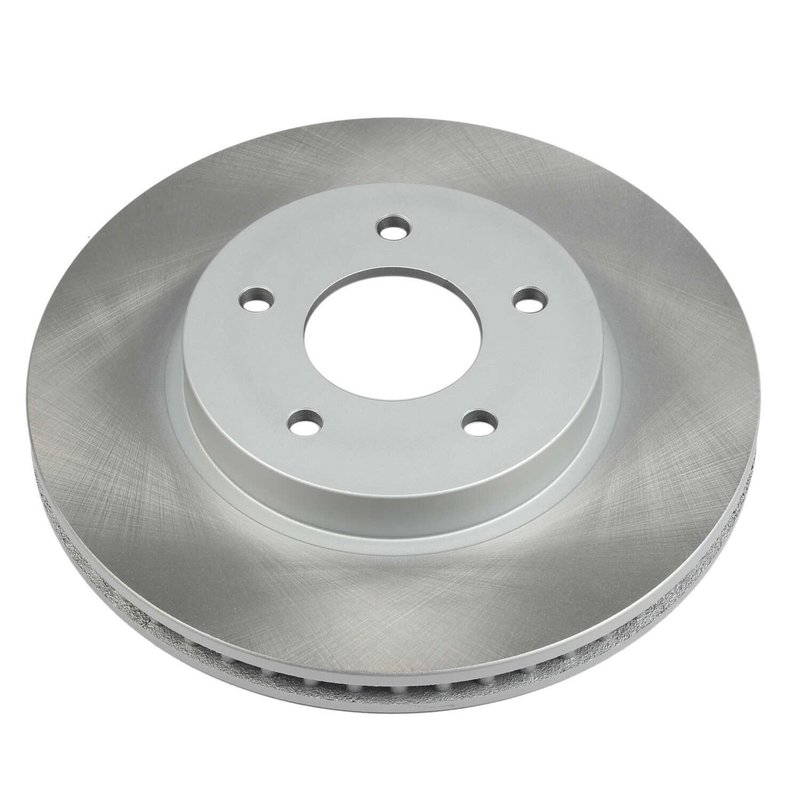

PowerStop AR8271SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8271SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.96 |
| Discard Thickness | 24.50 |
| Nominal Thickness | 1.02 |
| Nominal Thickness | 26.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.03 |
| Overall Height | 51.50 |
| Outside Diameter | 11.65 |
| Outside Diameter | 296.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 115.00 |
| Mounting Bolt Hole Circle Diameter | 4.53 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Chevrolet, Pontiac, and Saturn · 9 vehicles |
OE-style replacement. Direct bolt-on design matches original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast rotor. Smooth surface and mill-balanced construction for consistent service.
Cross-references 22666578 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated front brake rotor
The PowerStop AR8271SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It uses a partially coated design with corrosion-resistant protection on the hat, outer edge, and vanes to help preserve appearance behind alloy wheels.
Key features
- Direct bolt-on replacement for OE-style fitment
- Silver epoxy coating on corrosion-prone areas
- Vented, full cast construction with a smooth surface
- Mill balanced to match OE weight and vane count
- 11.65 in. outside diameter and 5-lug bolt pattern
Detailed description
PowerStop designed the AR8271SCR to match original equipment performance and specifications while adding a coated finish for improved corrosion resistance. The vented rotor design supports heat management, and the full cast construction provides the structural base expected in a replacement brake rotor. This part is a strong fit for Saturn Vue, Chevrolet Equinox, and Pontiac Torrent front brake service where OE-style dimensions and mounting details matter. The AR8271SCR is also identified by interchange number 22666578.
What it is used for
- Replacing a worn or warped front brake rotor
- Addressing brake pulsation during stopping
- Restoring smooth rotor surface contact
- Replacing a corroded rotor hat or edge
- Maintaining OE-style brake system dimensions
Installation notes and tips
Verify outside diameter, thickness, bolt circle diameter, and lug count before installation. This rotor is vented and uses a 5-lug, 115 mm bolt circle configuration. Confirm the vehicle’s front brake application and compare the existing rotor dimensions to the listed specifications before service.
Quality assurance
PowerStop builds this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment. The coated finish is intended to resist corrosion in exposed areas and help maintain a cleaner appearance over time.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Chevrolet | Equinox | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Pontiac | Torrent | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Chevrolet | Equinox | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Saturn | Vue | Front | PowerStop - Front Coated Hat and Edge Rotor |
