Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

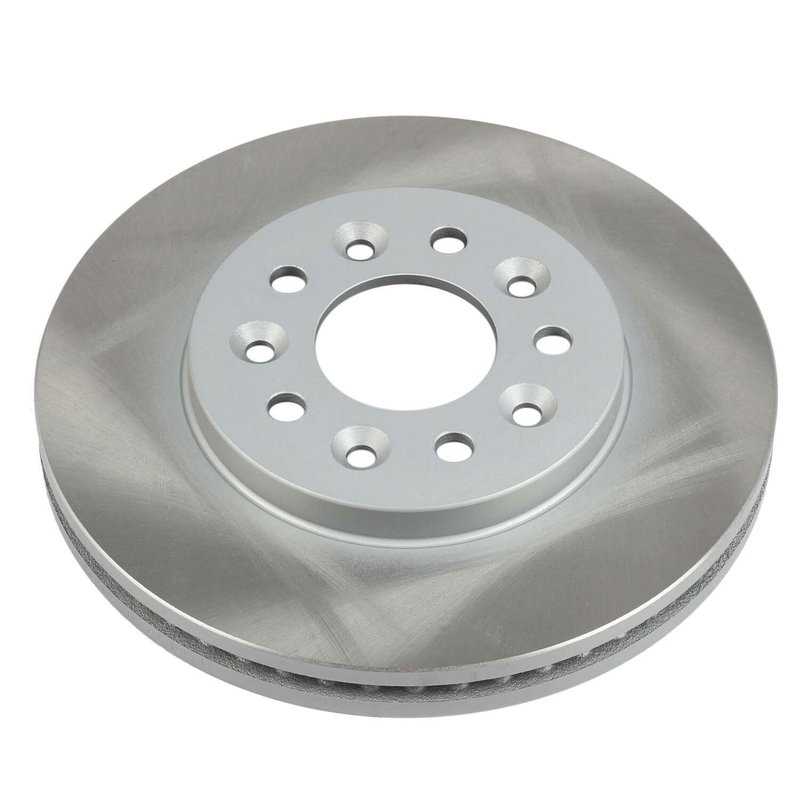

PowerStop AR85101SCR Disc Brake Rotor - Front
| Brand | PowerStop AR85101SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.12 |
| Discard Thickness | 28.50 |
| Nominal Thickness | 1.18 |
| Nominal Thickness | 30.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.89 |
| Overall Height | 48.00 |
| Outside Diameter | 11.54 |
| Outside Diameter | 293.10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Ford and Mercury · 8 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full-cast design. Smooth-surface rotor with mill-balanced construction for consistent service.
Cross-references 3F2Z 1125-AA, 5U2Z1V125E and 6F2Z 1125-A for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated front brake rotor replacement
PowerStop AR85101SCR is a direct bolt-on disc brake rotor built to match original equipment fit and performance requirements. It is engineered for 2004-2007 Ford Freestar and 2004-2007 Mercury Monterey front brake applications, with a coated hat and edge to help resist corrosion.
Key features
- Part number AR85101SCR for easy identification and ordering.
- Partially coated design helps protect corrosion-prone areas.
- Silver epoxy coating covers the hat, outer edge, and vanes.
- Full cast, vented rotor construction with a smooth surface finish.
- Mill balanced to support consistent brake operation.
- Matches OE weight and vane count for proper fitment.
Detailed fitment and design
This rotor is built for front brake service on the Ford Freestar and Mercury Monterey, and it follows original equipment specifications for dimensions and construction. The vented design, 11.54-inch outside diameter, 1.18-inch nominal thickness, and 5-lug bolt pattern support correct installation on the listed applications. PowerStop AR85101SCR is a practical replacement when you need a rotor that preserves OE-style fit while adding a corrosion-resistant coating for improved appearance behind alloy wheels.
Common issues this rotor can address
- Corrosion on the rotor hat, edge, or internal vanes.
- Brake pulsation caused by worn or out-of-spec rotors.
- Reduced braking consistency from rotor wear.
- Visible rust that affects wheel well appearance.
Installation notes and quality
Install on the specified front brake position only and verify rotor dimensions, bolt circle, and thickness before service. The rotor is a direct replacement for the listed Ford Freestar and Mercury Monterey applications, and the AR85101SCR part number should be matched to the vehicle before installation. PowerStop designs these rotors to align with OE performance and specification targets, including weight and vane count, for dependable fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | Freestar | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Mercury | Monterey | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Ford | Freestar | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Mercury | Monterey | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Ford | Freestar | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Mercury | Monterey | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Ford | Freestar | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Mercury | Monterey | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | ||||
