PowerStop AR85103SCR Disc Brake Rotor - Front
OE Quality 60-Day Returns
PowerStop
 PowerStop - Front Coated Hat and Edge Rotor

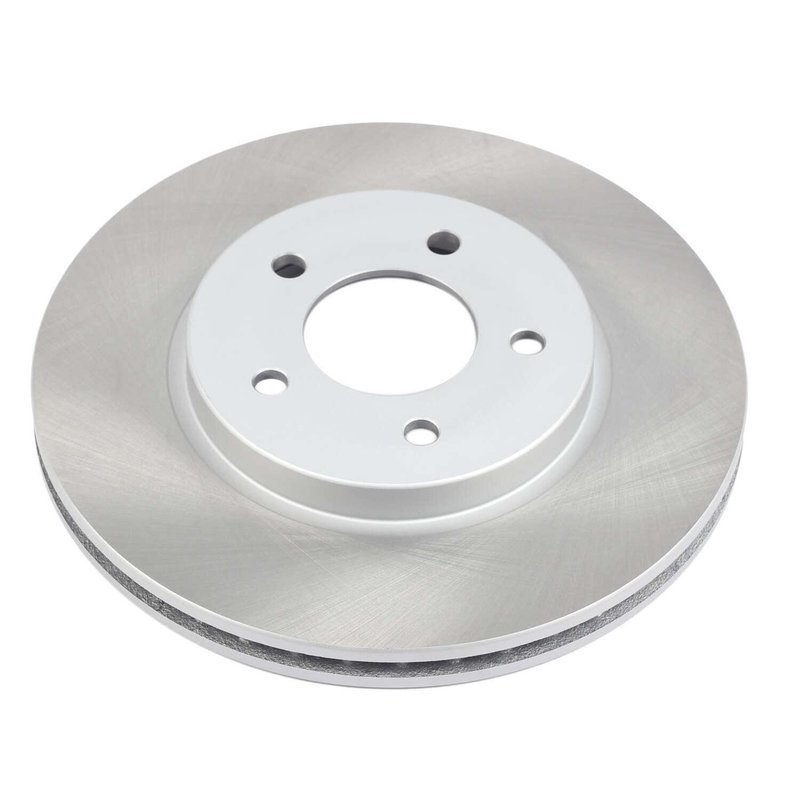

PowerStop AR85103SCR Disc Brake Rotor - Front

Brand PowerStop AR85103SCR
Position Front
Discard Thickness 0.94
Discard Thickness 23.90
Nominal Thickness 1.02
Nominal Thickness 25.90
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 1.84
Overall Height 46.70
Outside Diameter 11.92
Outside Diameter 302.80
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 114.30
Mounting Bolt Hole Circle Diameter 4.50
Stud/Lug Hole Quantity 5
Product line PowerStop - Front Coated Hat and Edge Rotor
Fits Ford, Mazda, and Mercury · 21 vehicles

OE-style replacement. Direct bolt-on rotor built to match original equipment dimensions and vane count.

Corrosion-resistant coating. Silver epoxy protects the hat, outer edge, and vanes from rust.

Vented full cast design. Smooth-surface rotor with mill-balanced construction for consistent service.

Cross-references 5L8Z 1125-AA, AL8Z 1125-A and EF91-33-25X for the same application. See all 4.

$79.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $79.24
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Coated Front Brake Rotor

PowerStop AR85103SCR is a direct bolt-on front disc brake rotor built to match original equipment dimensions and vane count. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance behind alloy wheels.

Key Features

  • Partially coated hat and edge design for corrosion resistance.
  • Full cast, vented rotor construction with a smooth surface.
  • Mill balanced for consistent operation.
  • Matches OE weight and vane count for proper fitment.
  • Compatible with Ford Escape, Mazda Tribute, and Mercury Mariner front brake applications.

Detailed Description

This PowerStop coated rotor is engineered as an OE-style replacement for front brake service. The vented full cast design measures 11.92 inches in outside diameter with a 4.50-inch bolt circle and 5-lug mounting pattern, while the 1.02-inch nominal thickness and 0.94-inch discard thickness support standard brake service requirements. The coated hat, outer edge, and vanes help resist rust in exposed areas, making AR85103SCR a practical choice for drivers who want a cleaner-looking brake assembly. This part cross-references Monroe Shocks & Struts (e.g., 5L8Z 1125-AA, AL8Z 1125-A) for the same application.

What It Is Used For

  • Replacing a worn or corroded front brake rotor.
  • Restoring smooth braking performance after rotor wear.
  • Addressing brake pulsation caused by uneven rotor surfaces.
  • Reducing visible rust on exposed rotor areas.
  • Maintaining OE-style fitment on Ford Escape, Mazda Tribute, and Mercury Mariner front brake systems.

Installation Notes and Tips

Verify rotor diameter, bolt circle, and thickness before installation. This rotor is a front application and should be matched to the vehicle’s brake system specifications. Clean the hub mounting surface before installing the rotor to help prevent runout-related issues. Confirm fitment for 2005-2012 Ford Escape, 2005-2006 and 2008-2011 Mazda Tribute, and 2005-2011 Mercury Mariner, front.

Quality Assurance

PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment.

Related reading

This part fits 21 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2012FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2011FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2011MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2011MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2010FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2010MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2010MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2009FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2009MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2009MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2008FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2008MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2008MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2007FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2007MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2006FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2006MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2006MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
2005FordEscapeFrontPowerStop - Front Coated Hat and Edge Rotor
2005MazdaTributeFrontPowerStop - Front Coated Hat and Edge Rotor
2005MercuryMarinerFrontPowerStop - Front Coated Hat and Edge Rotor
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
5L8Z 1125-AAAL8Z 1125-AEF91-33-25XZZDL-33-25X
