Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

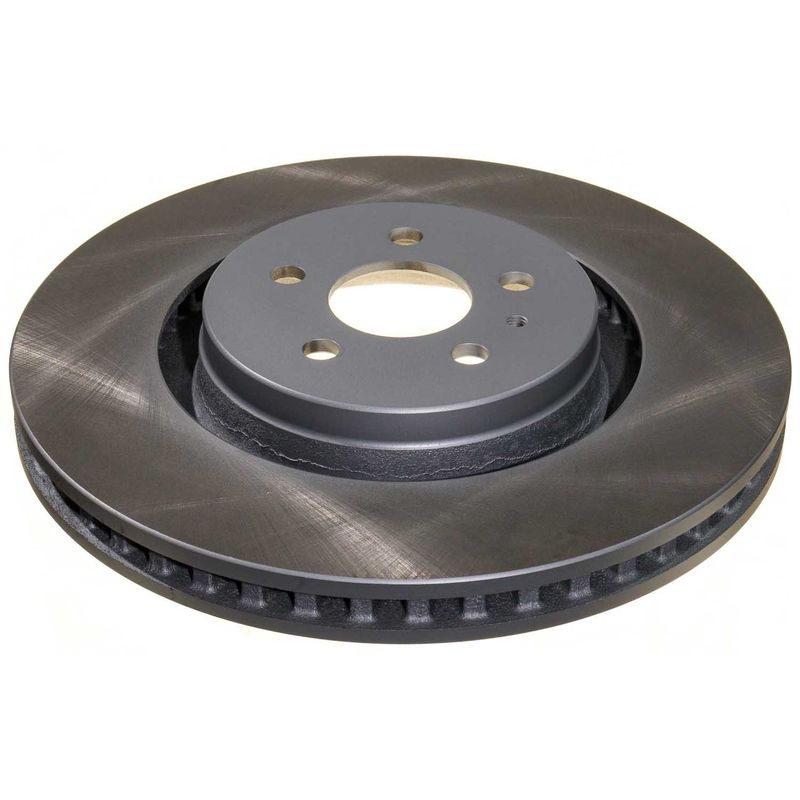

PowerStop AR85173SCR Disc Brake Rotor - Front
| Brand | PowerStop AR85173SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.20 |
| Discard Thickness | 30.50 |
| Nominal Thickness | 1.26 |
| Nominal Thickness | 32.10 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.07 |
| Overall Height | 52.60 |
| Outside Diameter | 13.58 |
| Outside Diameter | 345.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 108.00 |
| Mounting Bolt Hole Circle Diameter | 4.25 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Ford and Lincoln · 24 vehicles |
OE-style replacement. Direct bolt-on rotor for original equipment brake service.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth surface and mill-balanced construction for consistent braking.
Cross-references F2GZ 1125-D, F2GZ 1125-E and G3GZ 1125-B for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
PowerStop AR85173SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It is a coated, vented rotor with a smooth surface and mill-balanced construction for consistent brake service on compatible applications.
This rotor is engineered for Ford Edge, Ford Fusion, Lincoln Nautilus, Lincoln Continental, Lincoln MKZ, and Lincoln MKX front brake applications. The coated hat and edge help resist corrosion in exposed areas and keep the rotor looking cleaner behind alloy wheels.
Key Features
- Direct bolt-on replacement for OE-style brake service
- Silver epoxy coating on the hat, outer edge, and vanes for corrosion resistance
- Vented, full cast construction with a smooth friction surface
- Mill-balanced for OE-style fit and operation
- Built to match original equipment weight and vane count
Detailed Description
PowerStop AR85173SCR is designed for drivers who need a front brake rotor that matches original equipment specifications while adding corrosion protection in the areas most exposed to the elements. The 13.58-inch outside diameter, 5-lug bolt pattern, and vented design support proper fitment on the listed Ford and Lincoln applications, including Ford Edge, Ford Fusion, and Lincoln Nautilus front brake setups.
The coated hat and edge help reduce rust buildup where it is most visible, while the smooth braking surface and full cast construction support stable rotor performance. This part cross-references Ford and Lincoln OE numbers such as F2GZ 1125-D and G3GZ 1125-B for the same application.
What It Helps Address
- Brake rotor corrosion on exposed surfaces
- Uneven appearance behind alloy wheels
- Replacement needs for worn front brake rotors
- Fitment issues from non-OE-style rotor dimensions
- Brake service on vented front rotor applications
Installation Notes and Tips
Verify rotor diameter, bolt circle, and vented construction before installation. This rotor is a front application and should be matched to the vehicle’s original brake configuration. Clean the hub mounting surface thoroughly to help prevent runout concerns during brake service.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment on the listed applications. AR85173SCR is a direct replacement part for compatible Ford and Lincoln front brake systems.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2021 | Ford | Edge | SE | AWD | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2021 | Lincoln | Nautilus | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Ford | Edge | SEL | AWD | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Lincoln | Continental | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Lincoln | MKZ | — | — | 3.0L | V6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Lincoln | Nautilus | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Ford | Edge | SE | AWD | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Ford | Fusion | Sport | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Lincoln | Continental | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Lincoln | MKZ | — | — | 3.0L | V6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Lincoln | Nautilus | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Ford | Edge | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Ford | Fusion | Sport | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Lincoln | Continental | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Lincoln | MKX | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Lincoln | MKZ | — | — | 3.0L | V6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Ford | Edge | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Ford | Fusion | Sport | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Lincoln | Continental | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Lincoln | MKX | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Lincoln | MKZ | — | — | 3.0L | V6 | GAS | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Ford | Edge | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Lincoln | MKX | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2015 | Ford | Edge | — | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||||||
