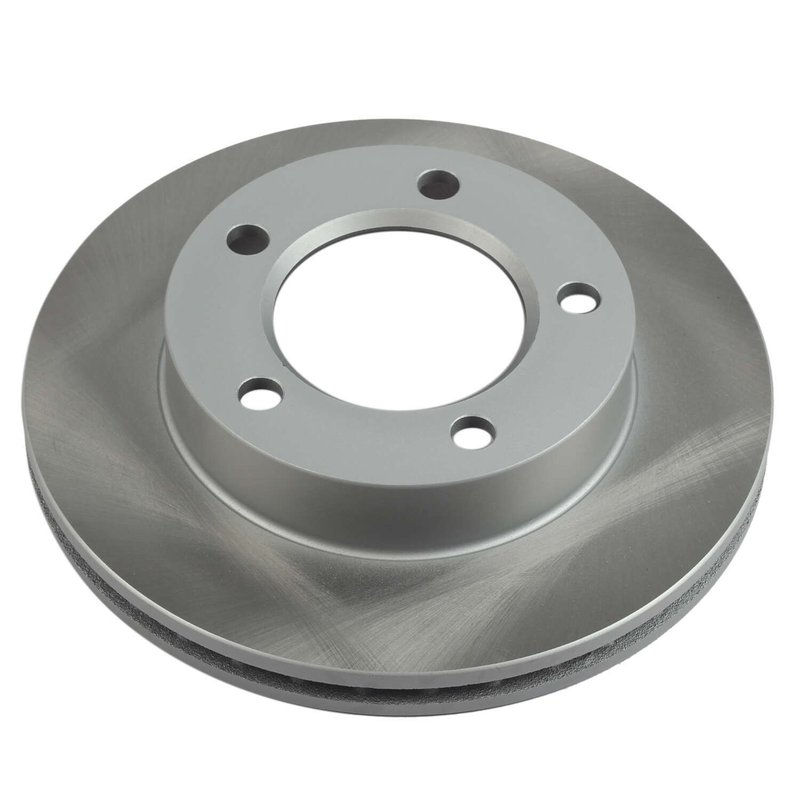

PowerStop AR8541SCR Disc Brake Rotor - Front
OE Quality 60-Day Returns
PowerStop
 PowerStop - Front Coated Hat and Edge Rotor

PowerStop AR8541SCR Disc Brake Rotor - Front

Brand PowerStop AR8541SCR
Position Front
Discard Thickness 0.96
Discard Thickness 24.40
Nominal Thickness 1.03
Nominal Thickness 26.10
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 2.56
Overall Height 65.00
Outside Diameter 11.69
Outside Diameter 297.00
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 139.70
Mounting Bolt Hole Circle Diameter 5.50
Stud/Lug Hole Quantity 5
Product line PowerStop - Front Coated Hat and Edge Rotor
Fits Ford · 6 vehicles

OE-style replacement. Direct bolt-on rotor built to match original equipment dimensions and performance targets.

Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust-prone exposure.

Vented full-cast design. Engineered for OE-like weight, vane count, and consistent braking performance.

Cross-references Centric Parts 120.65041, DuraGo BR54020 and Dynomax 54020 for the same application. See all 6.

$84.39Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $84.39
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Coated front brake rotor for Ford trucks

PowerStop AR8541SCR is a direct bolt-on disc brake rotor built to match original equipment dimensions and performance targets. It fits 1994-1996 Ford Bronco and 1994-1996 Ford F-150, front, with a vented full-cast design and corrosion-resistant coating on exposed areas.

Key features

  • Part number AR8541SCR for easy identification and ordering.
  • Partially coated hat and edge help resist corrosion and preserve appearance behind alloy wheels.
  • Vented rotor construction supports heat management during braking.
  • Mill-balanced full-cast design follows OE weight and vane count targets.
  • Smooth surface finish and 5-lug, 139.70 mm bolt circle dimensions.

Detailed description

PowerStop’s coated hat and edge rotor line focuses on OE-style replacement with practical corrosion protection. This AR8541SCR rotor uses a silver epoxy coating on the hat, outer edge, and vanes, helping reduce rust on the areas most exposed to moisture and road debris. The vented, full-cast construction is engineered to match original equipment specifications, including weight and vane count, for consistent fitment on the Ford Bronco and Ford F-150 applications listed.

The AR8541SCR is a strong match for buyers looking for a front brake rotor that keeps the braking system close to factory geometry while adding a cleaner appearance behind modern wheels. This part cross-references Centric Parts (e.g., 120.65041) for the same application.

What this rotor helps address

  • Brake rotor rust on exposed surfaces.
  • Uneven appearance from corrosion behind alloy wheels.
  • Heat buildup in a vented front brake rotor application.
  • Need for an OE-style replacement rotor with factory-like dimensions.

Installation notes and tips

Verify rotor diameter, thickness, bolt circle, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads and caliper components at the same time. Confirm the vehicle application by year, make, model, and front position before ordering AR8541SCR.

Quality assurance

PowerStop designs this rotor to align with original equipment performance and specifications, including weight and vane count, to support proper fitment on the listed Ford applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1996FordBronco—FrontPowerStop - Front Coated Hat and Edge Rotor
1996FordF-1504WDFrontPowerStop - Front Coated Hat and Edge Rotor
1995FordBronco—FrontPowerStop - Front Coated Hat and Edge Rotor
1995FordF-1504WDFrontPowerStop - Front Coated Hat and Edge Rotor
1994FordBronco—FrontPowerStop - Front Coated Hat and Edge Rotor
1994FordF-1504WDFrontPowerStop - Front Coated Hat and Edge Rotor
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Centric Parts — 120.65041DuraGo — BR54020Dynomax — 54020Four Seasons — 66438Parts Authority — PRT1905BD125408
