Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

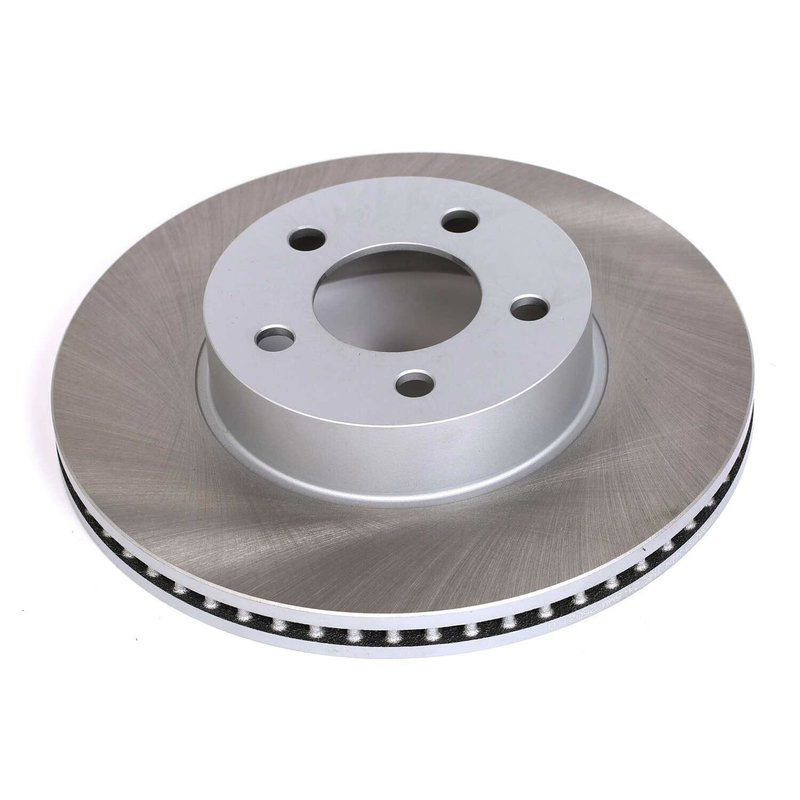

PowerStop AR8586SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8586SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.96 |
| Discard Thickness | 24.50 |
| Nominal Thickness | 1.02 |
| Nominal Thickness | 26.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.62 |
| Overall Height | 66.50 |
| Outside Diameter | 11.97 |
| Outside Diameter | 304.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Ford and Mazda · 25 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full-cast design. Smooth-surface rotor with mill-balanced construction for consistent operation.
Cross-references 1F60-33-251A, 1F6033251B and 1L5Z 1125-AA for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
PowerStop AR8586SCR is a direct bolt-on disc brake rotor built to match original equipment specifications for the front axle. It is a vented, smooth-surface rotor with a corrosion-resistant coating on the hat, outer edge, and vanes to help preserve appearance behind alloy wheels.
Key Features
- Direct replacement rotor with OE-style fitment and dimensions
- Silver epoxy coating on corrosion-prone areas for added rust resistance
- Vented full-cast construction for consistent brake performance
- Mill-balanced design to support smooth operation
- Matches OE weight and vane count for proper application fit
Detailed Description
PowerStop AR8586SCR is engineered as a front disc brake rotor for Ford Ranger, Mazda B4000, Ford Explorer Sport Trac, and Ford Explorer Sport applications. The coated hat and edge design helps protect exposed surfaces from corrosion while maintaining a clean appearance behind modern wheels. With a 304.00 mm outside diameter, 26.00 mm nominal thickness, and 24.50 mm discard thickness, this rotor is built around the original equipment specification set for the listed applications. This part cross-references Ford and Mazda OE numbers (e.g., 1F60-33-251A, 1L5Z 1125-AA) for the same application.
What It Is Used For
- Replacing a worn or warped front brake rotor
- Addressing brake pulsation during stopping
- Restoring proper rotor thickness for service limits
- Replacing a rusted rotor hat or outer edge
- Maintaining brake performance on the listed Ford and Mazda applications
Installation Notes and Tips
Install on the front position only for the listed fitments. Verify rotor diameter, bolt circle, and thickness before installation, and inspect pads, calipers, and hub surfaces for wear or corrosion that could affect braking performance. AR8586SCR is a direct bolt-on replacement, so it follows the original mounting pattern for the specified vehicles.
Quality Assurance
PowerStop designs this rotor to match OE performance and specifications, including weight and vane count, for confirmed fitment on the listed applications. The coated surfaces are intended to resist corrosion and help maintain appearance over time.
| Year | Make | Model | # Doors | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Mazda | B4000 | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Ford | Explorer Sport Trac | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Ford | Explorer Sport Trac | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Ford | Explorer Sport | 2 Door | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Ford | Explorer Sport Trac | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Ford | Ranger | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Mazda | B4000 | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Ford | Explorer Sport | 2 Door | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Ford | Explorer Sport Trac | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Ford | Explorer Sport | 2 Door | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Ford | Explorer Sport Trac | — | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | ||||||
