Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

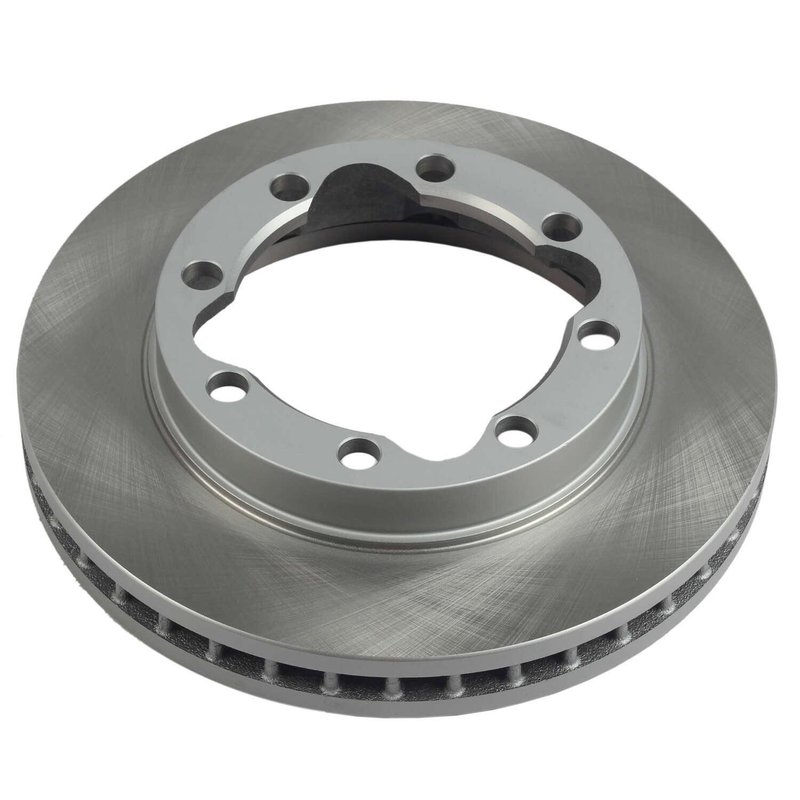

PowerStop AR8626SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8626SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.46 |
| Discard Thickness | 37.20 |
| Nominal Thickness | 1.54 |
| Nominal Thickness | 39.10 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 70.20 |
| Outside Diameter | 317.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 165.10 |
| Mounting Bolt Hole Circle Diameter | 6.50 |
| Stud/Lug Hole Quantity | 8 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Chevrolet, Dodge, and GMC · 34 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth, mill-balanced construction for consistent brake service.
Cross-references 12549137 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated OE-Style Front Rotor
The PowerStop AR8626SCR is a direct bolt-on disc brake rotor built to match original equipment performance and specifications. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance behind alloy wheels while maintaining OE-style fitment.
Key Features
- Partially coated rotor with silver epoxy on the hat, outer edge, and vanes
- Vented, full cast construction for OE-style brake service
- Mill balanced and smooth surfaced for consistent operation
- Built to match original equipment weight and vane count
- Direct replacement design for front brake applications
Detailed Description
PowerStop AR8626SCR is a front disc brake rotor engineered as a direct replacement for select Chevrolet K3500, GMC K3500, and Dodge Ram heavy-duty applications. The vented design, 317.00 mm outside diameter, and 8-lug bolt pattern align with the original equipment specifications used on these trucks. The coated hat and edge help resist corrosion in exposed areas, making this rotor a practical choice for maintaining a cleaner appearance in daily use and under demanding service conditions. This part cross-references Monroe Shocks & Struts (e.g., 12549137) for the same application.
What It Is Used For
- Replacing a worn or warped front brake rotor
- Restoring smooth braking performance and pedal feel
- Addressing rotor surface corrosion and visible rust on exposed areas
- Matching OE-style dimensions for heavy-duty brake service
- Supporting brake maintenance on Chevrolet K3500, GMC K3500, and Dodge Ram applications
Installation Notes and Tips
Verify rotor diameter, bolt circle, and axle or GVW notes before installation. This rotor is listed for front applications only, with fitment varying by model year and configuration on Dodge Ram 2500 and Ram 3500 trucks. Clean the hub mounting surface thoroughly and inspect pads, calipers, and hardware condition before completing the brake service.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment on listed applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2000 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Dodge | Ram 2500 | 4WD | Front | 8800 lb. GVW; PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Dodge | Ram 2500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Dodge | Ram 2500 | 4WD | Front | With 8800 Lb GVW; PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Dodge | Ram 3500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Dodge | Ram 2500 | 4WD | Front | With 4500 Lb Front Axle; PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | Dodge | Ram 2500 | 4WD | Front | With 4500 Lb Front Axle; PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1994 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1994 | Dodge | Ram 2500 | 4WD | Front | With 4500 Lb Front Axle; PowerStop - Front Coated Hat and Edge Rotor |
| 1994 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1994 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1993 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1993 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1992 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1992 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1991 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1991 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1990 | Chevrolet | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1990 | GMC | K3500 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||
