Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

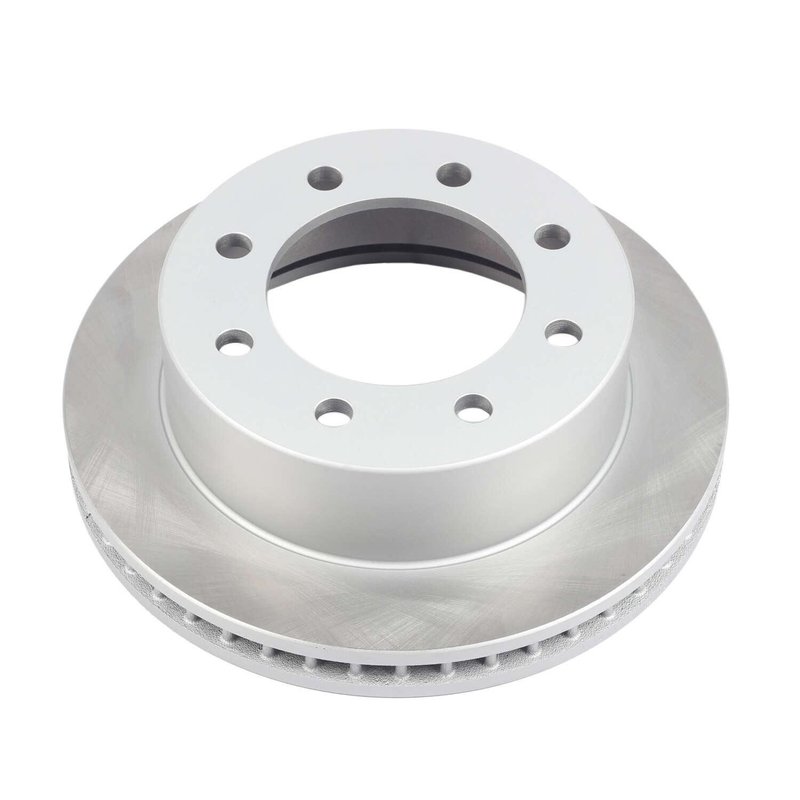

PowerStop AR8746SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8746SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.32 |
| Discard Thickness | 33.50 |
| Nominal Thickness | 1.40 |
| Nominal Thickness | 35.60 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 102.10 |
| Overall Height | 4.02 |
| Outside Diameter | 12.85 |
| Outside Diameter | 326.40 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 165.10 |
| Mounting Bolt Hole Circle Diameter | 6.50 |
| Stud/Lug Hole Quantity | 8 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Dodge · 6 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth surface and mill-balanced construction support consistent braking.
Cross-references 5015 230AA and 5200 9414AB for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated front brake rotor
PowerStop AR8746SCR is a coated, direct bolt-on disc brake rotor built to match original equipment dimensions and vane count. It is made for drivers who want a replacement rotor with corrosion protection on the hat, outer edge, and vanes.
Compatible with Dodge Ram 2500 and Dodge Ram 3500 front brake applications, this vented rotor uses a full cast construction, mill balancing, and a smooth surface finish. The silver epoxy coating helps preserve appearance behind alloy wheels while resisting rust in exposed areas.
Key features
- Part number AR8746SCR for direct replacement identification
- Partially coated design protects corrosion-prone areas
- Vented rotor construction for heat management
- Full cast build with mill-balanced construction
- Smooth braking surface with OE-style dimensions
- 8-lug bolt pattern with 165.10 mm bolt circle diameter
Detailed fitment and design
Fits 2000-2002 Dodge Ram 2500, front. Fits 2000-2002 Dodge Ram 3500, front. PowerStop AR8746SCR is engineered as a front coated hat and edge rotor that follows original equipment weight and vane count for proper fitment. The 12.85-inch outside diameter, 4.02-inch overall height, and vented design support consistent brake service on Ram 2500 and Ram 3500 trucks.
This part cross-references Monroe Shocks & Struts (e.g., 5015 230AA, 5200 9414AB) for the same application.
Common replacement needs
- Rust on the rotor hat, edge, or internal vanes
- Brake pulsation from worn or uneven rotor surfaces
- Loss of braking consistency from a thin rotor
- Visible corrosion behind alloy wheels
- Rotor replacement for front brake service
Installation notes and quality
Verify rotor dimensions, bolt circle diameter, and lug hole count before installation. Confirm the vehicle uses the listed front application and compare the old rotor to the new part number AR8746SCR before service. PowerStop states these rotors are built to original equipment performance and specifications for fitment consistency.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Dodge | Ram 2500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Dodge | Ram 2500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Dodge | Ram 3500 | RWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||
