Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

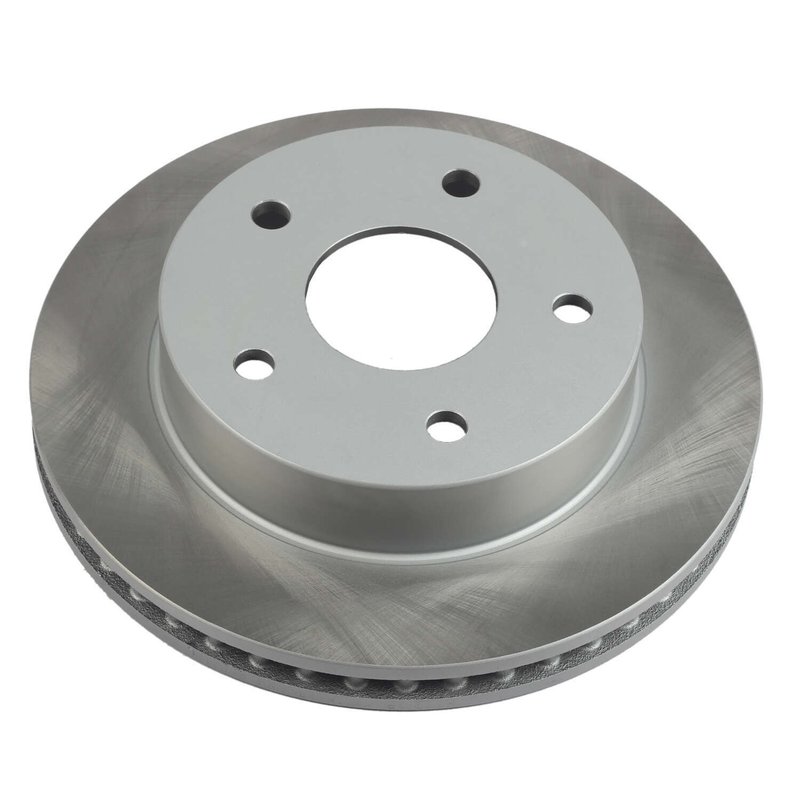

PowerStop AR8748SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8748SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.12 |
| Discard Thickness | 28.40 |
| Nominal Thickness | 1.18 |
| Nominal Thickness | 30.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.90 |
| Overall Height | 73.70 |
| Outside Diameter | 12.10 |
| Outside Diameter | 307.30 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 139.70 |
| Mounting Bolt Hole Circle Diameter | 5.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Dodge · 2 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth surface and mill-balanced construction support consistent braking.
Cross-references 5200 9801AA for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
PowerStop AR8748SCR is a direct bolt-on disc brake rotor built for drivers who want an OE-style replacement with added corrosion protection. It is made for the front brake position and matches original equipment performance and specifications for fitment confidence.
Fits 2000-2001 Dodge Ram 1500, front. This rotor is also identified by part number AR8748SCR.
Key Features
- Partially coated rotor with silver epoxy on corrosion-prone areas.
- Coated hat, outer edge, and vanes help resist rust buildup.
- Full cast, vented construction with a smooth surface finish.
- Mill balanced to support consistent brake operation.
- Built to match OE weight and vane count for direct replacement fitment.
Detailed Description
PowerStop AR8748SCR is a coated front disc brake rotor engineered as a direct replacement for original equipment. The vented, full cast design uses a rust-resistant coating on the hat, outer edge, and internal vanes to help preserve appearance and reduce corrosion in exposed areas. With OE-matching weight and vane count, this rotor is built to maintain the original braking layout on the Dodge Ram 1500 while providing a cleaner look behind alloy wheels.
The AR8748SCR rotor measures 12.10 inches in outside diameter, 1.18 inches nominal thickness, and 2.90 inches overall height. It uses a 5-lug, 5.50-inch bolt circle and a smooth surface type. If you are replacing worn or corroded front brake rotors on a 2000-2001 Dodge Ram 1500, this PowerStop rotor offers a straightforward OE-style solution.
This part cross-references Monroe Shocks & Struts (e.g., 5200, 9801AA) for the same application.
What It Is Used For
- Replacing a worn front brake rotor with an OE-style part.
- Addressing rotor rust on the hat, edge, or internal vanes.
- Restoring smooth braking performance after rotor wear.
- Maintaining a clean appearance behind alloy wheels.
- Correcting brake pulsation caused by rotor condition.
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and vented construction before installation. Clean the hub mounting surface thoroughly to help prevent runout issues and uneven rotor seating. Follow the vehicle service procedure for brake inspection, pad condition, and torque specifications during installation on the Dodge Ram 1500.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Dodge | Ram 1500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Dodge | Ram 1500 | 4WD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||
