Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

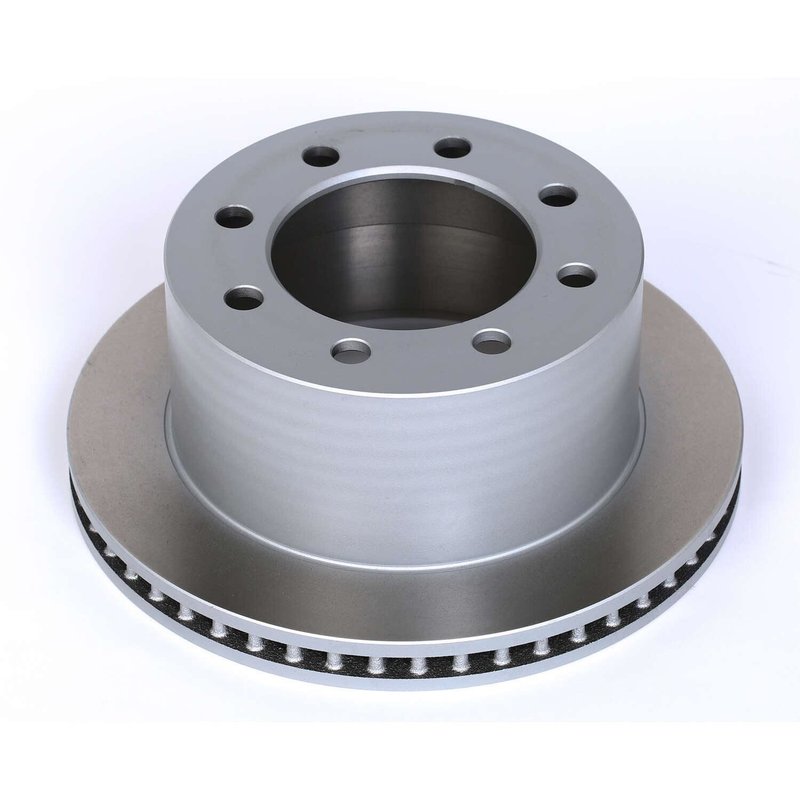

PowerStop AR8753SCR Disc Brake Rotor - Rear
| Brand | PowerStop AR8753SCR |
|---|---|
| Position | Rear |
| Discard Thickness | 1.12 |
| Discard Thickness | 28.40 |
| Nominal Thickness | 1.18 |
| Nominal Thickness | 30.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 130.90 |
| Overall Height | 5.15 |
| Outside Diameter | 12.72 |
| Outside Diameter | 323.20 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 165.10 |
| Mounting Bolt Hole Circle Diameter | 6.50 |
| Stud/Lug Hole Quantity | 8 |
| Product line | PowerStop - Rear Coated Hat and Edge Rotor |
| Fits | Dodge · 6 vehicles |
OE-style replacement. Direct bolt-on design matches original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Built for stable braking performance and consistent heat control.
Cross-references 5200 9932AA for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear coated brake rotor for Ram trucks
PowerStop AR8753SCR is a rear disc brake rotor built as a direct bolt-on replacement for original equipment. It combines a vented, full cast design with a corrosion-resistant coating on the hat, outer edge, and vanes to help preserve appearance and service life.
Key features
- Direct bolt-on replacement for OE-style brake service
- Silver epoxy coating on corrosion-prone areas
- Vented rotor design for heat management
- Full cast construction with mill balancing
- Smooth friction surface for consistent pad contact
- Matches OE weight and vane count for fitment accuracy
Detailed description
PowerStop designed the AR8753SCR to match original equipment performance and specifications while adding a coated finish for improved corrosion resistance. The coated hat and edge help maintain a cleaner appearance behind alloy wheels, while the vented, full cast construction supports stable braking performance. This rotor is a fitment-specific replacement for 2000-2002 Dodge Ram 2500 and 2000-2002 Dodge Ram 3500 rear brake applications. This part cross-references Monroe Shocks & Struts (e.g., 5200, 9932AA) for the same application.
What this rotor helps address
- Corrosion on exposed rotor surfaces
- Brake pulsation caused by worn rotor surfaces
- Reduced braking consistency from heat buildup
- Fitment issues when replacing an OE rear rotor
Installation notes and tips
Verify rotor diameter, bolt circle, and thickness before installation. This rotor uses an 8-lug mounting pattern and a 6.50-inch bolt circle, so confirm the hub and brake package match the listed application. Use new brake pads only if the existing pads are worn or uneven, and inspect caliper hardware and wheel bearings during service.
Quality assurance
PowerStop builds this rotor to match OE performance and specifications, including weight and vane count, for guaranteed fitment.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 4WD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2002 | Dodge | Ram 3500 | 4WD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2001 | Dodge | Ram 2500 | 4WD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2001 | Dodge | Ram 3500 | RWD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2000 | Dodge | Ram 2500 | RWD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2000 | Dodge | Ram 3500 | RWD | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
