Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

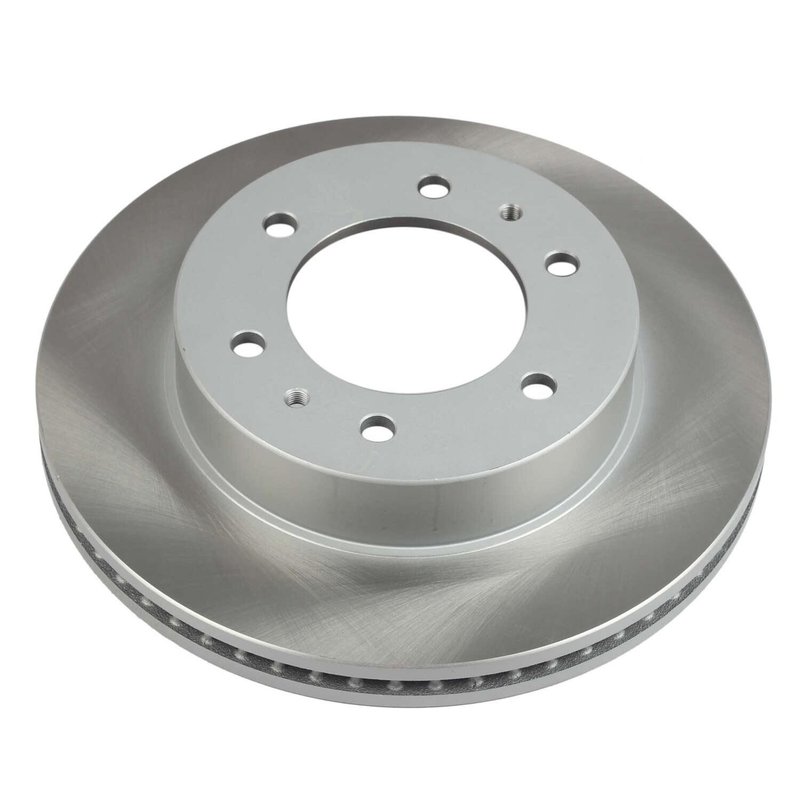

PowerStop AR8769SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8769SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.04 |
| Discard Thickness | 26.50 |
| Nominal Thickness | 1.10 |
| Nominal Thickness | 28.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.76 |
| Overall Height | 70.00 |
| Outside Diameter | 12.40 |
| Outside Diameter | 315.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 139.70 |
| Mounting Bolt Hole Circle Diameter | 5.50 |
| Stud/Lug Hole Quantity | 6 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Hummer · 7 vehicles |
OE-style replacement. Direct bolt-on brake rotor with factory-matched specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth-surface rotor built for consistent brake performance.
Cross-references 15202106 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
PowerStop AR8769SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It uses a partially coated design with corrosion-resistant protection on the hat, outer edge, and vanes to help preserve appearance behind alloy wheels.
Key Features
- Direct bolt-on replacement for OE-style brake service
- Silver epoxy coating on corrosion-prone areas
- Vented, full cast rotor construction
- Mill balanced for consistent operation
- Smooth surface finish with OE-matched weight and vane count
Detailed Description
PowerStop designed the AR8769SCR to match original equipment performance and specifications while adding a coated finish for improved corrosion resistance. The vented, full cast construction measures 12.40 inches in outside diameter with a 5.50-inch bolt circle and 6 lug holes, and it is built to the same weight and vane count targets used for OE fitment. This makes it a practical replacement for brake service on the Hummer H3 and Hummer H3T when a front rotor with factory-style dimensions is required. The AR8769SCR also cross-references Monroe Shocks & Struts 15202106 for the same application.
Common Uses
- Replacing a worn or below-spec front brake rotor
- Addressing rotor corrosion on exposed hat and edge areas
- Restoring smooth braking performance after rotor wear
- Matching OE-style dimensions during brake repair
Installation Notes
Verify rotor diameter, bolt circle, lug count, and overall height before installation. This rotor is a front application for the listed Hummer H3 and Hummer H3T fitments. Confirm brake system measurements against the vehicle before service to ensure proper fitment.
Quality Assurance
PowerStop builds this rotor to OE-style performance and specification targets, including weight and vane count, for consistent fitment and function.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Hummer | H3 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Hummer | H3T | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Hummer | H3 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Hummer | H3T | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Hummer | H3 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Hummer | H3 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Hummer | H3 | Front | PowerStop - Front Coated Hat and Edge Rotor |
