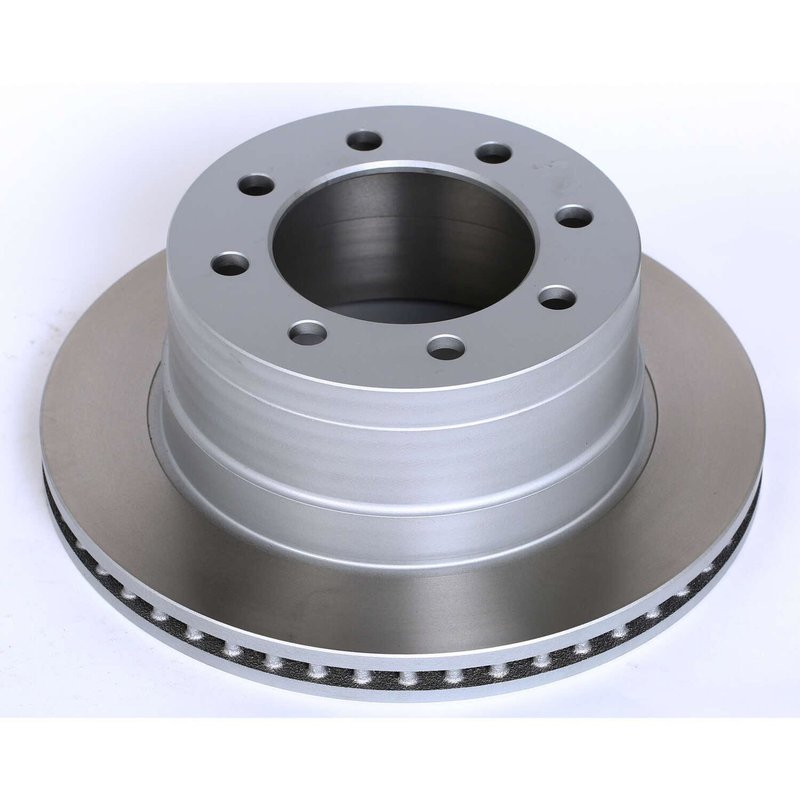

PowerStop AR8772SCR Disc Brake Rotor - Rear
OE Quality 60-Day Returns
PowerStop
 PowerStop - Rear Coated Hat and Edge Rotor

PowerStop AR8772SCR Disc Brake Rotor - Rear

Brand PowerStop AR8772SCR
Position Rear
Discard Thickness 1.12
Discard Thickness 28.40
Nominal Thickness 1.18
Nominal Thickness 30.00
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 131.00
Overall Height 5.16
Outside Diameter 13.88
Outside Diameter 352.50
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 165.10
Mounting Bolt Hole Circle Diameter 6.50
Stud/Lug Hole Quantity 8
Product line PowerStop - Rear Coated Hat and Edge Rotor
Fits Dodge · 15 vehicles

OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.

Corrosion protection. Silver epoxy coating covers the hat, edge, and vanes.

Vented cast design. Full cast construction with a smooth braking surface.

Cross-references 5201 0144AA for the same application. See all 1.

$142.10Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $142.10
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Rear coated brake rotor overview

PowerStop AR8772SCR is a rear disc brake rotor built as a direct bolt-on replacement for original equipment. It is made for Dodge Ram 1500, Dodge Ram 2500, and Dodge Ram 3500 applications that call for a vented rear rotor with corrosion protection.

The coated hat and edge design helps protect exposed areas from rust while keeping the rotor looking cleaner behind alloy wheels. PowerStop AR8772SCR is engineered to match OE weight and vane count for proper fitment and consistent brake performance.

Key features

  • Part number AR8772SCR
  • Direct bolt-on replacement for OE-style service
  • Silver epoxy coating on the hat, outer edge, and vanes
  • Vented full cast rotor construction
  • Mill balanced for stable operation
  • 13.88 in. outside diameter with 8-lug bolt pattern

Detailed fitment and design

Compatible with 2006-2008 Dodge Ram 1500, rear; 2003-2008 Dodge Ram 2500, rear; and 2003-2008 Dodge Ram 3500, rear. This rotor uses a smooth surface and vented design with 1.18 in. nominal thickness and 1.12 in. discard thickness. The 5.16 in. overall height and 6.50 in. bolt circle diameter support OE-style replacement needs on Ram truck brake service.

PowerStop’s coated rotor line focuses on corrosion resistance in the areas most exposed to road moisture and debris. For Ram 1500, Ram 2500, and Ram 3500 rear brake repair, AR8772SCR provides a fit-focused replacement that follows original equipment specifications.

Common issues this rotor can address

  • Brake rotor rust on the hat, edge, or internal vanes
  • Brake pulsation caused by worn or uneven rotor surfaces
  • Reduced braking consistency from rotor wear
  • Fitment problems from non-OE-style replacement parts
  • Visible corrosion behind alloy wheels

Installation notes and quality

Install as a rear brake rotor replacement on the listed Dodge Ram applications. Verify rotor dimensions, bolt circle diameter, and axle position before installation. The rotor is supplied without an ABS tone ring.

PowerStop designs this coated rotor to match original equipment performance and specifications, including weight and vane count, for accurate fitment on the listed Ram truck applications. Part number AR8772SCR and interchange reference 5201 0144AA may be useful when confirming the correct replacement.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeDrive TypePositionNotes
2008DodgeRam 1500Extended Crew Cab Pickup—RearAlso called Mega Cab; PowerStop - Rear Coated Hat and Edge Rotor
2008DodgeRam 2500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2008DodgeRam 3500—4WDRearPowerStop - Rear Coated Hat and Edge Rotor
2007DodgeRam 1500Extended Crew Cab Pickup—RearAlso called Mega Cab; PowerStop - Rear Coated Hat and Edge Rotor
2007DodgeRam 2500—4WDRearPowerStop - Rear Coated Hat and Edge Rotor
2007DodgeRam 3500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2006DodgeRam 1500Extended Crew Cab Pickup—RearAlso called Mega Cab; PowerStop - Rear Coated Hat and Edge Rotor
2006DodgeRam 2500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2006DodgeRam 3500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2005DodgeRam 2500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2005DodgeRam 3500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2004DodgeRam 2500—4WDRearPowerStop - Rear Coated Hat and Edge Rotor
2004DodgeRam 3500—4WDRearPowerStop - Rear Coated Hat and Edge Rotor
2003DodgeRam 2500—RWDRearPowerStop - Rear Coated Hat and Edge Rotor
2003DodgeRam 3500—4WDRearPowerStop - Rear Coated Hat and Edge Rotor
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
5201 0144AA
