PowerStop AR9314 Disc Brake Rotor - Front or Rear
OE Quality 60-Day Returns
PowerStop
 Power Stop - OE Stock Replacement Brake Rotor

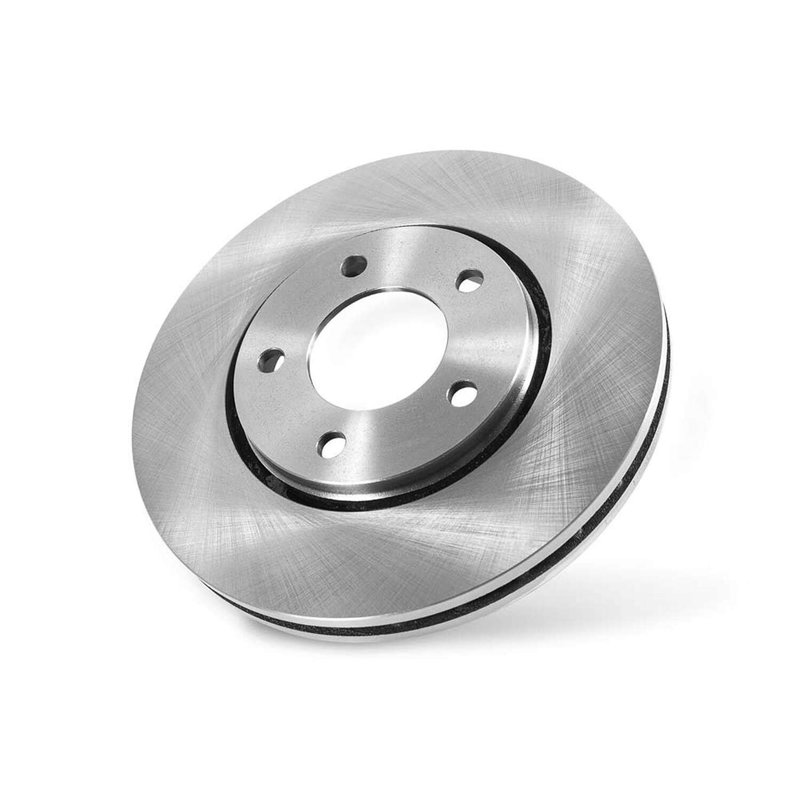

PowerStop AR9314 Disc Brake Rotor - Front or Rear

Brand PowerStop AR9314
Position Front and Rear
Discard Thickness 1.32
Discard Thickness 33.60
Nominal Thickness 1.44
Nominal Thickness 36.60
Rust Resistant Coating No
Overall Height 3.20
Overall Height 81.60
Outside Diameter 15.00
Outside Diameter 381.00
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 184.20
Mounting Bolt Hole Circle Diameter 7.30
Stud/Lug Hole Quantity 10
Product line Power Stop - OE Stock Replacement Brake Rotor
Fits Ford and Workhorse Custom Chassis · 48 vehicles

OE stock replacement. Direct-fit rotor for original equipment-style brake service.

Vented design. Helps move heat away from the braking surface more efficiently.

Heavy-duty fitment. Built around large chassis dimensions and 10-lug mounting patterns.

$157.16Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $157.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

OE Stock Replacement Rotor

Power Stop Autospecialty disc brake rotor AR9314 is a direct-fit replacement for heavy-duty Ford and Workhorse applications. It is built as a vented rotor with a 15.00-inch outside diameter and 10-lug mounting pattern for the specified chassis fitments.

Key Features

  • Direct-fit brake rotor for original equipment-style replacement
  • Vented design for improved heat dissipation
  • 15.00-inch outside diameter with 3.20-inch overall height
  • 10-hole bolt circle and 10 stud/lug holes
  • Fits front and rear applications listed for Ford and Workhorse chassis

Detailed Fitment and Design

Power Stop AR9314 is an OE stock replacement disc brake rotor engineered around the listed chassis specifications, including 1.44-inch nominal thickness, 1.32-inch discard thickness, and 184.20 mm bolt circle diameter. Compatible applications include Fits 2021-2023 Ford F-53 Motorhome Chassis, front; Fits 2021-2022 Ford F-59 Commercial Stripped Chassis, front; Fits 2016-2019 Ford F-53 Motorhome Chassis, front; Fits 2011-2015 Ford F-53 Motorhome Chassis, front; Fits 2008-2009 Ford F-53 Motorhome Chassis, front; Fits 2001-2011 Workhorse Custom Chassis W22, front; Fits 2001-2011 Workhorse Custom Chassis W22, rear; Fits 2004-2008 Ford F-650, front; and Fits 2004-2008 Ford F-750, front. This part number, AR9314, is used across multiple heavy-duty chassis configurations where the rotor dimensions and hat style must match the original setup.

Common Replacement Uses

  • Replacing a worn rotor with thickness below service limits
  • Correcting brake pulsation caused by rotor wear or distortion
  • Restoring proper brake contact on heavy-duty chassis
  • Addressing rotor fitment issues on 10-lug, hat-style applications

Installation Notes and Tips

Verify outside diameter, overall height, bolt circle diameter, and lug-hole count before installation. Confirm the vehicle’s GVW and axle configuration against the listed fitment notes, especially on Ford F-53, Ford F-59, Ford F-650, Ford F-750, and Workhorse W22 applications. Match the rotor to the correct front or rear position shown in the fitment data. Part number AR9314 should be checked against the existing rotor dimensions before ordering.

Quality Assurance

Power Stop lists this Autospecialty rotor as a direct-fit solution for original equipment fit and performance. The AR9314 part number is part of Power Stop’s OE stock replacement rotor line for applications that require factory-style dimensions and fit.

Related reading

This part fits 48 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2023FordF-53 Motorhome ChassisFront24,000 to 26,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2022FordF-53 Motorhome ChassisFront24,000 to 26,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2022FordF-59 Commercial Stripped ChassisFront24,000 to 26,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2021FordF-53 Motorhome ChassisFront24,000 to 26,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2021FordF-59 Commercial Stripped ChassisFront24,000 to 26,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2019FordF-53 Motorhome ChassisFrontover 23,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2018FordF-53 Motorhome ChassisFrontover 23,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2017FordF-53 Motorhome ChassisFrontover 23,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2016FordF-53 Motorhome ChassisFrontover 23,000 lb GVW; Power Stop - OE Stock Replacement Brake Rotor
2015FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2014FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2013FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2012FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2011FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2011Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2011Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2010Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2010Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2009FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2009Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2009Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2008FordF-53 Motorhome ChassisFrontOver 23,000 lb GVW; Dana 17060S Rear Axle; Power Stop - OE Stock Replacement Brake Rotor
2008FordF-650Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2008FordF-750Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2008Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2008Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2007FordF-650Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2007FordF-750Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2007Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2007Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2006FordF-650Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2006FordF-750Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2006Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2006Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2005FordF-650Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2005FordF-750Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2005Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2005Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2004FordF-650Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2004FordF-750Front10 Hole, Hat Shaped, 3.2" Overall Height; Power Stop - OE Stock Replacement Brake Rotor
2004Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2004Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2003Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2003Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2002Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2002Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2001Workhorse Custom ChassisW22Front10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
2001Workhorse Custom ChassisW22Rear10 Lug Hat Shaped Rotor; 20,700, 21,200, 22,000 lb GVW; 3.20 inches Tall; Power Stop - OE Stock Replacement Brake Rotor
