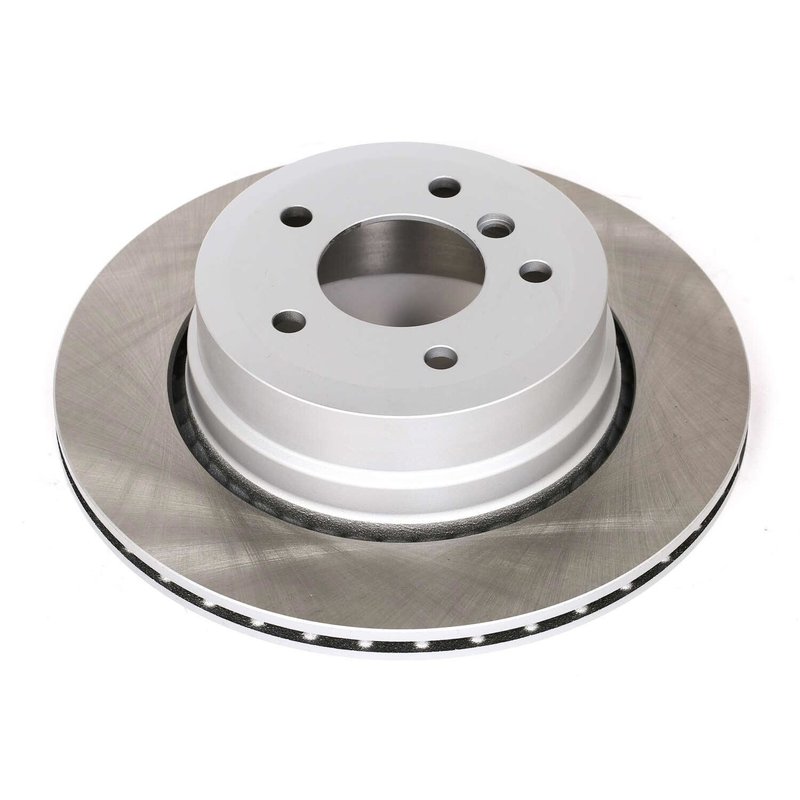

PowerStop EBR1022SCR Disc Brake Rotor - Rear
OE Quality 60-Day Returns
PowerStop
 PowerStop - Rear Coated Hat and Edge Rotor

PowerStop EBR1022SCR Disc Brake Rotor - Rear

Brand PowerStop EBR1022SCR
Position Rear
Discard Thickness 0.72
Discard Thickness 18.40
Nominal Thickness 0.78
Nominal Thickness 19.90
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 3.39
Overall Height 86.10
Outside Diameter 12.58
Outside Diameter 319.60
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 120.00
Mounting Bolt Hole Circle Diameter 4.72
Stud/Lug Hole Quantity 5
Product line PowerStop - Rear Coated Hat and Edge Rotor
Fits BMW · 11 vehicles

OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.

Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.

Vented full cast design. Smooth rotor construction supports consistent braking performance.

Cross-references 34 21 6 763 345 and 34216864053 for the same application. See all 2.

$107.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $107.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Rear coated brake rotor for BMW fitment

This PowerStop rear disc brake rotor is a direct bolt-on replacement built to match original equipment specifications. It is engineered for BMW applications and uses a corrosion-resistant coating on exposed areas to help preserve appearance and function.

  • Part number EBR1022SCR for rear brake service applications.
  • Part number EBR1022SCR with a vented, full cast rotor design.
  • Silver epoxy coating on the hat, outer edge, and vanes helps resist corrosion.
  • Mill balanced construction supports OE-style fit and smooth operation.
  • Matches original equipment weight and vane count for confirmed fitment.

Detailed fitment and design

PowerStop Coated Hat and Edge Rotors are made as a partially coated replacement rotor for BMW rear brake applications. The smooth vented design measures 12.58 inches in outside diameter and uses a 5-lug, 120 mm bolt circle. Compatible With 2006-2007 BMW 525xi, rear; 2006-2007 BMW 530xi, rear; 2008 BMW 528xi, rear; 2008 BMW 535xi, rear; 2009-2010 BMW 528i xDrive, rear; 2009-2010 BMW 535i xDrive, rear; and 2010 BMW 528i, rear. This rotor is intended for drivers replacing a worn rear brake rotor on BMW 5 Series and xDrive-equipped models while keeping OE-style dimensions and appearance. This part cross-references BMW OE numbers 34 21 6 763 345 and 34216864053 for the same application.

Common issues this rotor can address

  • Brake pulsation caused by rotor wear or thickness variation
  • Corrosion on the hat, edge, or internal vanes
  • Reduced braking consistency from a worn rear rotor surface
  • Visible rust behind alloy wheels
  • Fitment problems when replacing an OE-style rear rotor

Installation notes and quality assurance

Verify rotor diameter, bolt circle, and rear-position fitment before installation. Clean the hub mounting surface and inspect related brake components for wear before reassembly. PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2010BMW528iRearPowerStop - Rear Coated Hat and Edge Rotor
2010BMW528i xDriveRearPowerStop - Rear Coated Hat and Edge Rotor
2010BMW535i xDriveRearPowerStop - Rear Coated Hat and Edge Rotor
2009BMW528i xDriveRearPowerStop - Rear Coated Hat and Edge Rotor
2009BMW535i xDriveRearPowerStop - Rear Coated Hat and Edge Rotor
2008BMW528xiRearPowerStop - Rear Coated Hat and Edge Rotor
2008BMW535xiRearPowerStop - Rear Coated Hat and Edge Rotor
2007BMW525xiRearPowerStop - Rear Coated Hat and Edge Rotor
2007BMW530xiRearPowerStop - Rear Coated Hat and Edge Rotor
2006BMW525xiRearPowerStop - Rear Coated Hat and Edge Rotor
2006BMW530xiRearPowerStop - Rear Coated Hat and Edge Rotor
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
34 21 6 763 34534216864053
