Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

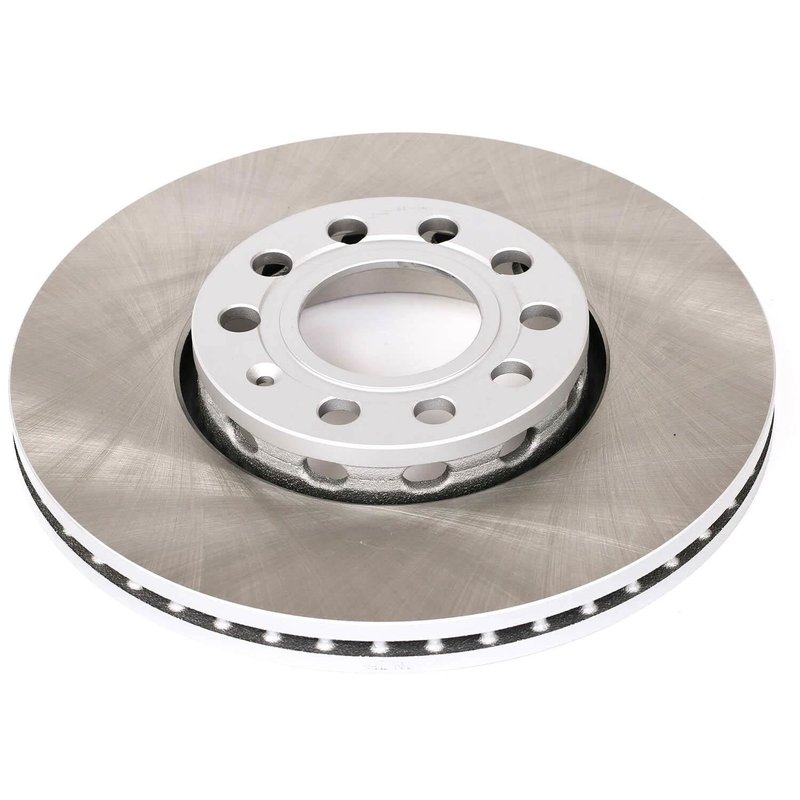

PowerStop EBR430SCR Disc Brake Rotor - Front
| Brand | PowerStop EBR430SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.91 |
| Discard Thickness | 23.00 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.83 |
| Overall Height | 46.50 |
| Outside Diameter | 11.34 |
| Outside Diameter | 288.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 112.00 |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Audi and Volkswagen · 44 vehicles |
OE-style replacement. Direct bolt-on design follows original equipment specifications for fitment consistency.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust-prone exposure.
Vented full cast rotor. Smooth braking surface and mill-balanced construction support stable service.
Cross-references 4A0 615 301 C, 4A0 615 301 E and 4B0 615 301 B for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The PowerStop EBR430SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It is designed for Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, and Volkswagen Passat applications with the correct front fitment.
This coated rotor uses a silver epoxy finish on corrosion-prone areas to help preserve appearance behind alloy wheels. The EBR430SCR also matches OE weight and vane count for fitment consistency and braking performance.
Key Features
- Part number EBR430SCR for front brake applications.
- Partially coated rotor with rust-resistant silver epoxy on the hat, outer edge, and vanes.
- Vented, full cast construction with a smooth surface type.
- Mill balanced for consistent operation.
- Built to match original equipment specifications, including weight and vane count.
Detailed Description
PowerStop’s coated hat and edge rotor line focuses on OE-style replacement parts with corrosion protection where it matters most. The EBR430SCR is a vented front rotor with a 288 mm outside diameter, 25 mm nominal thickness, and a 5-lug, 112 mm bolt circle pattern. Its full cast construction and smooth braking surface support stable, predictable service in the front brake system.
For buyers searching for a front brake rotor for Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, or Volkswagen Passat, this rotor is built to follow the original equipment dimensions and mounting pattern. The EBR430SCR is also cross-referenced to 4A0 615 301 C and 8E0 615 301 Q for the same application.
Common Issues This Part Addresses
- Corrosion on the rotor hat, edge, or internal vanes.
- Brake pulsation caused by worn or out-of-spec rotors.
- Reduced braking consistency from uneven rotor wear.
- Fitment problems when replacing an OE front rotor.
- Visible rust behind alloy wheels.
Installation Notes
Compatible with front brake rotor applications only. Verify rotor diameter, thickness, bolt circle, and vehicle-specific chassis notes before installation, especially on 2004 and 2002-2003 Audi A4 models and 1998 Volkswagen Passat applications with chassis breakpoints. Use standard brake service procedures and confirm the hub and mounting surfaces are clean before fitting the rotor.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for consistent fitment. The coated surfaces are intended to resist corrosion in exposed areas and help maintain a cleaner appearance over time.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Audi | A4 | Convertible | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Audi | A4 Quattro | Convertible | — | 3.0L | V6 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Audi | A4 Quattro | Sedan | — | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Volkswagen | Passat | — | AWD | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Audi | A4 | Convertible | — | 1.8L | L4 | Front | To CH# 8E-5-006-000; PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Audi | A4 Quattro | — | — | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Volkswagen | Passat | — | — | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Audi | A4 | Sedan | — | 1.8L | L4 | Front | To CH# 8E-5-060-000; PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Audi | A4 Quattro | — | — | 3.0L | V6 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Volkswagen | Passat | — | — | 2.8L | V6 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Audi | A4 | Sedan | — | 1.8L | L4 | Front | To CH# 8E-5-060-000; PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Audi | A4 Quattro | — | — | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Volkswagen | Passat | — | — | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Volkswagen | Passat | — | FWD | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2000 | Volkswagen | Passat | — | FWD | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1999 | Volkswagen | Passat | — | FWD | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1998 | Volkswagen | Passat | — | — | — | — | Front | From CH# 3B-X-124-108; PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1997 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Audi | A4 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Audi | A4 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1996 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | Audi | A6 | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 1995 | Audi | A6 Quattro | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
