Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

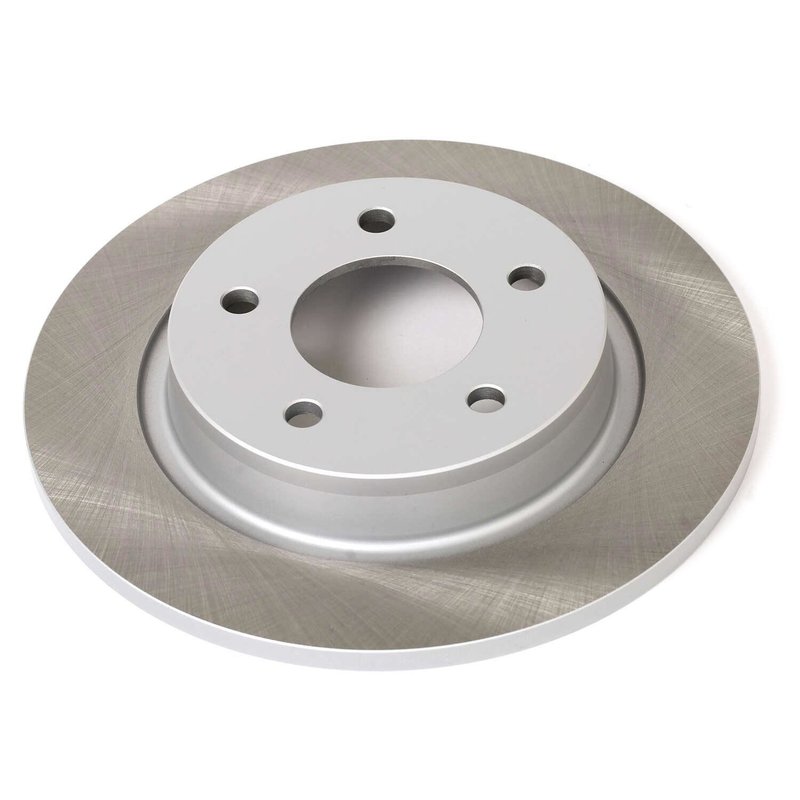

PowerStop JBR1116SCR Disc Brake Rotor - Rear
| Brand | PowerStop JBR1116SCR |
|---|---|
| Position | Rear |
| Discard Thickness | 0.35 |
| Discard Thickness | 9.00 |
| Nominal Thickness | 10.90 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 40.70 |
| Outside Diameter | 279.80 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Rear Coated Hat and Edge Rotor |
| Fits | Mazda · 10 vehicles |
Direct bolt-on replacement. Matches original equipment specifications for straightforward brake service.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
OE-style rotor design. Full cast construction with mill balancing and a smooth surface finish.
Cross-references BP6Y-26-251E, C25Y-26-251A and C25Y-26-251B for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated rear brake rotor
This PowerStop rear disc brake rotor is a direct bolt-on replacement for the original equipment part. It is built for the Mazda 3 and uses a corrosion-resistant coating on exposed areas to help preserve appearance and service life.
Key features
- Part number JBR1116SCR for easy identification
- Partially coated design protects the hat, outer edge, and vanes from corrosion
- Full cast construction with a smooth surface finish
- Mill balanced for consistent operation
- Matches original equipment weight and vane count for fitment accuracy
- Solid rotor design with a 279.80 mm outside diameter
Detailed fitment and design
Fits 2004-2013 Mazda 3, rear. This rotor is engineered to match original equipment specifications, including weight and vane count, which helps maintain proper fit and braking performance. The silver epoxy coating is applied to corrosion-prone areas so the rotor keeps a cleaner look behind alloy wheels. JBR1116SCR is a practical replacement choice for drivers servicing a Mazda 3 rear brake system with an OE-style rotor.
What this rotor helps address
- Surface rust on exposed rotor areas
- Brake service needs on a worn rear rotor
- Loss of original equipment appearance behind wheels
- Fitment issues from non-matching rotor dimensions
Installation notes and tips
Fits 2004-2013 Mazda 3, rear. Verify rotor dimensions, bolt circle diameter, and solid rotor configuration before installation. The 5-lug, 114.30 mm bolt circle specification should be matched to the vehicle hub before assembly. Use standard brake service procedures and inspect related brake components during replacement.
Quality assurance
PowerStop designs this rotor as a direct replacement that follows original equipment performance and specification targets. The coated finish is intended to resist corrosion in exposed areas, and the part number JBR1116SCR identifies the correct application for ordering and service.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Mazda | 3 | S | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2012 | Mazda | 3 | Mazdaspeed | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2011 | Mazda | 3 | Mazdaspeed | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2010 | Mazda | 3 | S | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2009 | Mazda | 3 | Mazdaspeed | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2008 | Mazda | 3 | S | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2007 | Mazda | 3 | S | — | — | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2006 | Mazda | 3 | — | 2.3L | L4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2005 | Mazda | 3 | — | 2.3L | L4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2004 | Mazda | 3 | — | 2.3L | L4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
