Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

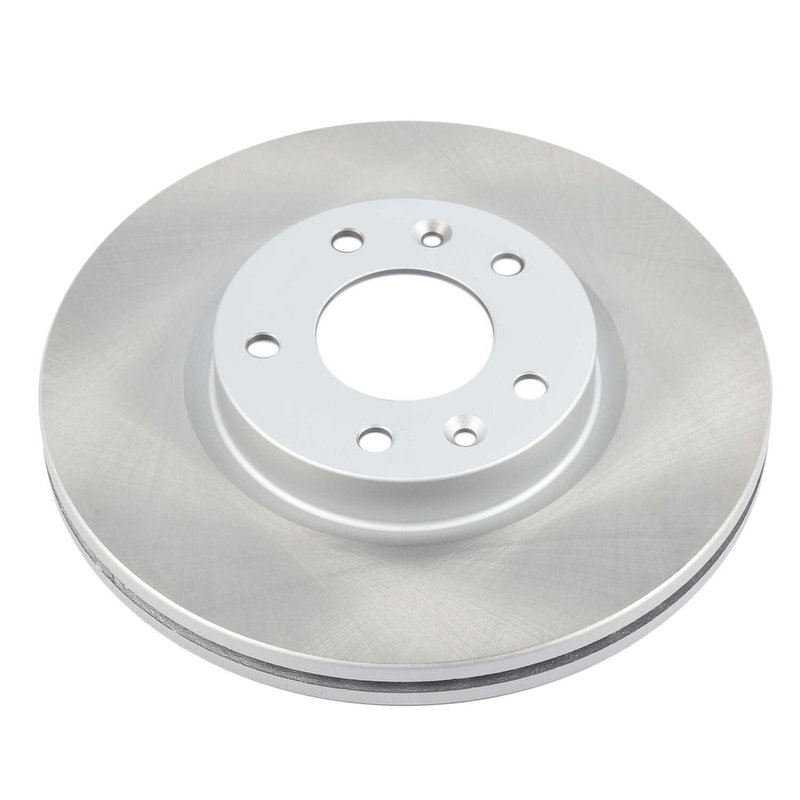

PowerStop JBR1154SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1154SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.91 |
| Discard Thickness | 23.00 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.91 |
| Overall Height | 48.60 |
| Outside Diameter | 11.77 |
| Outside Diameter | 299.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Ford, Lincoln, Mazda, and Mercury · 28 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full-cast design. Smooth braking surface with mill-balanced construction for consistent service.
Cross-references 6E5Z 1125-AA, 9E5Z 1125-A and 9E5Z 1125-B for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
PowerStop JBR1154SCR is a direct bolt-on disc brake rotor built to match original equipment dimensions and performance targets. It is designed for front brake service on select Ford, Lincoln, Mazda, and Mercury applications, with a corrosion-resistant finish that helps preserve appearance behind alloy wheels.
Key Features
- Part number JBR1154SCR
- Partially coated rotor with silver epoxy on corrosion-prone areas
- Rust-resistant coating on the hat, outer edge, and vanes
- Vented, full-cast construction with a smooth surface
- Mill balanced for consistent operation
- Matches OE weight and vane count for fitment accuracy
Detailed Description
PowerStop’s coated hat and edge rotor line focuses on OE-style replacement with added corrosion protection. This rotor uses a vented, full-cast design and a 299 mm outside diameter, 114.3 mm bolt circle, and five lug holes. The coated finish is applied to exposed areas that commonly show rust, while the braking surface remains smooth for standard pad contact. JBR1154SCR is a practical choice for drivers servicing a Ford Fusion, Lincoln MKZ, Mazda 6, or Mercury Milan front brake system where OE dimensions matter.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Is Used For
- Replacing a worn front disc brake rotor
- Addressing rotor rust on exposed surfaces
- Restoring braking performance after thickness wear
- Maintaining OE-style fit on compatible brake systems
- Supporting smooth pad-to-rotor contact
Installation Notes and Tips
Verify rotor diameter, bolt circle, and thickness before installation. This rotor is a front application and does not include an ABS tone ring. Confirm pad condition, hub surface cleanliness, and caliper operation during brake service. Use the vehicle’s service specifications for torque and bedding procedures.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, to support accurate fitment on the listed applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Mazda | 6 | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Lincoln | MKZ | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Mazda | 6 | S | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Ford | Fusion | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Lincoln | Zephyr | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Mazda | 6 | S | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Mercury | Milan | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||
