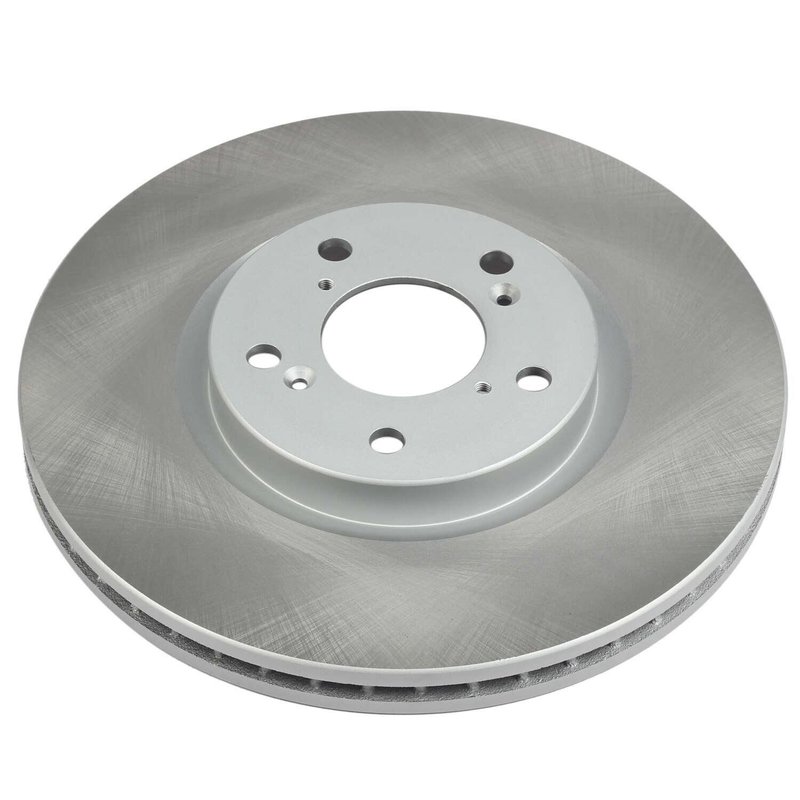

PowerStop JBR1171SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1171SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.02 |
| Discard Thickness | 26.00 |
| Nominal Thickness | 1.10 |
| Nominal Thickness | 28.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.86 |
| Overall Height | 47.30 |
| Outside Diameter | 12.99 |
| Outside Diameter | 330.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 120.00 |
| Mounting Bolt Hole Circle Diameter | 4.72 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Acura and Honda · 25 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, outer edge, and vanes from rust.
Vented full-cast design. Smooth surface and mill-balanced construction support consistent braking.
Cross-references 45251-STX-A00, 45251-STX-H01 and 45251-TY3-A00 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
The PowerStop JBR1171SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance behind alloy wheels while matching OE weight and vane count.
Compatible with Acura and Honda applications, this vented rotor is engineered for consistent braking performance and OE-style fitment. The JBR1171SCR is a practical choice for drivers replacing worn front rotors on the Acura RLX, Acura MDX, Acura ZDX, or Honda Pilot.
Key Features
- Part number JBR1171SCR for easy identification
- Partially coated design helps resist corrosion on exposed surfaces
- Silver epoxy coating covers the hat, outer edge, and vanes
- Full cast, mill-balanced construction
- Vented rotor design with smooth friction surface
- Built to match original equipment specifications for fitment
Detailed Description
PowerStop’s coated hat and edge rotor line focuses on OE-style replacement with added corrosion protection. This rotor is designed to install as a direct replacement and follows original equipment dimensions, including outside diameter, thickness, and vane count. The vented construction supports heat management during repeated braking, while the smooth surface provides a consistent contact area for the brake pads. For Acura RLX, Acura MDX, Acura ZDX, and Honda Pilot front brake service, the JBR1171SCR offers a fit-focused replacement option that aligns with factory specifications.
What It Helps Address
- Rotor wear that reduces braking consistency
- Surface corrosion on exposed rotor areas
- Brake pulsation caused by worn or uneven rotors
- Visible rust behind alloy wheels
- Fitment issues from non-OE-style replacement rotors
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and front application before installation. This rotor is a direct bolt-on replacement, but proper brake service practices should be followed, including inspection of pads, calipers, and hub surfaces. Confirm the vehicle application against the listed fitment for Acura RLX, Acura MDX, Acura ZDX, and Honda Pilot models.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment. The coated surfaces add corrosion resistance for long-term appearance and serviceability.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2015 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2015 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2014 | Acura | RLX | Sport Hybrid SH-AWD | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2014 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2013 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2013 | Acura | ZDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2013 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Acura | ZDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Acura | ZDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Acura | ZDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Honda | Pilot | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Acura | MDX | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
