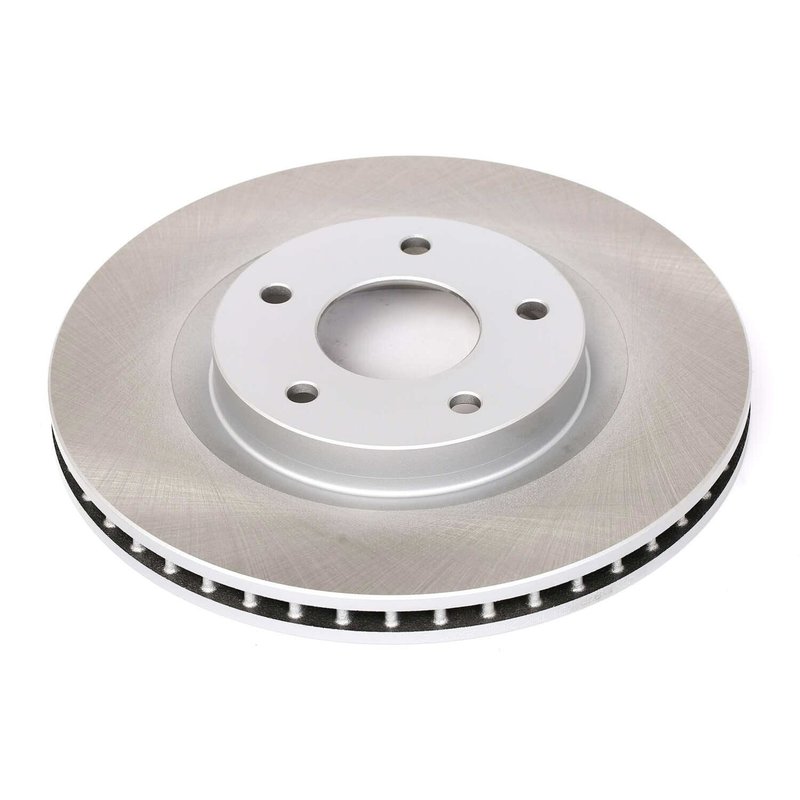

PowerStop JBR1197SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1197SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.94 |
| Discard Thickness | 24.00 |
| Nominal Thickness | 1.02 |
| Nominal Thickness | 26.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.73 |
| Overall Height | 44.00 |
| Outside Diameter | 11.65 |
| Outside Diameter | 296.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Nissan · 14 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full cast design. Smooth-surface rotor with mill-balanced construction for consistent operation.
Cross-references 40206-JG00A, 40206-JG00B and 40206-JG00C for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
PowerStop JBR1197SCR is a coated front disc brake rotor built as a direct bolt-on replacement for original equipment. It is engineered for drivers who want OE-style fitment, corrosion protection, and consistent braking performance in a vented rotor design.
Key Features
- Partially coated rotor with silver epoxy on corrosion-prone areas
- Coated hat, outer edge, and vanes help resist rust
- Vented, full cast construction with a smooth surface finish
- Mill balanced to support OE-style operation
- Matches original equipment weight and vane count for fitment confidence
Detailed Description
This PowerStop coated hat and edge rotor is designed to replace the original front brake rotor on select Nissan applications. The JBR1197SCR uses a full cast, vented construction with a 296 mm outside diameter, 26 mm nominal thickness, and 24 mm discard thickness. Its 4.50-inch bolt circle and five lug holes align with the specified OE-style mounting pattern. The rust-resistant coating is applied to the hat, outer edge, and internal vanes to help preserve appearance behind alloy wheels while maintaining the rotor’s braking surface where it matters most. This part cross-references Nissan OE numbers 40206-JG00A and 40206-JG00B for the same application.
What It Helps Address
- Corrosion on exposed rotor surfaces
- Brake rotor replacement for worn or out-of-spec components
- Uneven appearance from rust buildup behind wheels
- Fitment issues caused by incorrect rotor dimensions
- Noise or vibration related to rotor wear
Installation Notes
Compatible with 2014-2015 Nissan Rogue Select, front; 2008-2013 Nissan Rogue, front; and 2007-2012 Nissan Sentra, front. Verify rotor dimensions, bolt circle, and hub fitment before installation. The rotor is a direct bolt-on replacement and is intended to match OE specifications for the listed applications.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment on the listed applications. Part number JBR1197SCR is built to OE-style standards for the specified Nissan brake systems.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Nissan | Rogue Select | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2014 | Nissan | Rogue Select | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2013 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2012 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2011 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2010 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2009 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Nissan | Rogue | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2008 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2007 | Nissan | Sentra | SE-R | Front | PowerStop - Front Coated Hat and Edge Rotor |
