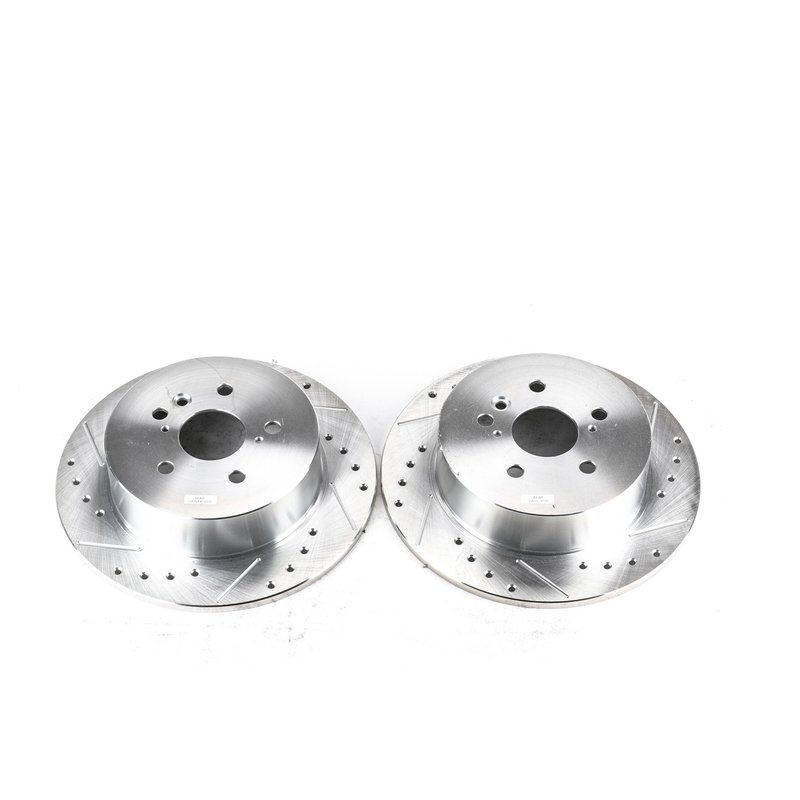

PowerStop JBR1369XPR Disc Brake Rotor Set - Rear

Power Stop Rear Drilled, Slotted and Zinc Plated Brake Rotor Pair Overview

The Power Stop - Rear Drilled, Slotted and Zinc Plated Brake Rotor Pair (Part Number JBR1369XPR) is designed specifically for Toyota Highlander models. This disc brake rotor set offers enhanced braking performance with a solid rotor design featuring both drilled and slotted surfaces for improved heat dissipation and consistent stopping power.

• Compatible with Toyota Highlander rear brake system
• Solid disc brake rotors with drilled and slotted surface
• Zinc plated for rust resistance and extended rotor life
• Nominal thickness of 10.00 mm and discard thickness of 8.50 mm
• Outside diameter of 309.00 mm and overall height of 69.50 mm
• Mounting bolt hole circle diameter of 114.30 mm with 5 lug holes

Product Line Details: Power Stop Rear Drilled, Slotted and Zinc Plated Rotors

The Power Stop - Rear Drilled, Slotted and Zinc Plated Brake Rotor Pair is part of Power Stop's specialized product line designed to improve braking efficiency and rotor durability. The drilled and slotted surface pattern helps reduce brake fade by allowing gases and heat to escape, while the zinc plating provides a protective coating against rust and corrosion. This combination is engineered to maintain consistent braking performance under demanding conditions, making it suitable for the rear brake system of the Toyota Highlander.

Technical Specifications and Features

This disc brake rotor set features a solid rotor type with a nominal thickness of 10.00 mm and a discard thickness of 8.50 mm, ensuring reliable wear limits. The rotors measure 309.00 mm in outside diameter and have an overall height of 69.50 mm. The mounting bolt hole circle diameter is 114.30 mm, accommodating 5 lug holes with a 4.50 mm diameter. The slotted and drilled surface design enhances braking by improving pad bite and heat dissipation, while the zinc plating offers rust resistance to extend rotor life.

Common Applications and Problem Solving

• Replacement for worn or warped rear brake rotors on Toyota Highlander
• Improves heat dissipation to reduce brake fade during heavy braking
• Addresses rust and corrosion issues with zinc plating protection
• Enhances braking performance with slotted and drilled rotor surfaces
• Maintains proper rotor thickness for safe and effective braking

Installation Notes and Tips

When installing the Power Stop JBR1369XPR rotor pair, ensure the rotors meet the minimum discard thickness of 8.50 mm before installation. Properly torque the mounting bolts to the manufacturer’s specifications and inspect brake pads for wear or damage. It is recommended to replace brake pads when installing new rotors to optimize braking performance. Clean the rotor surface to remove any protective coating residue before use.

Quality Assurance and Warranty

Power Stop brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The zinc plating provides additional corrosion resistance to extend rotor life. While specific warranty details are not provided here, Power Stop products typically come with a limited warranty against defects in materials and workmanship. Always refer to the manufacturer’s warranty documentation for complete coverage information.
