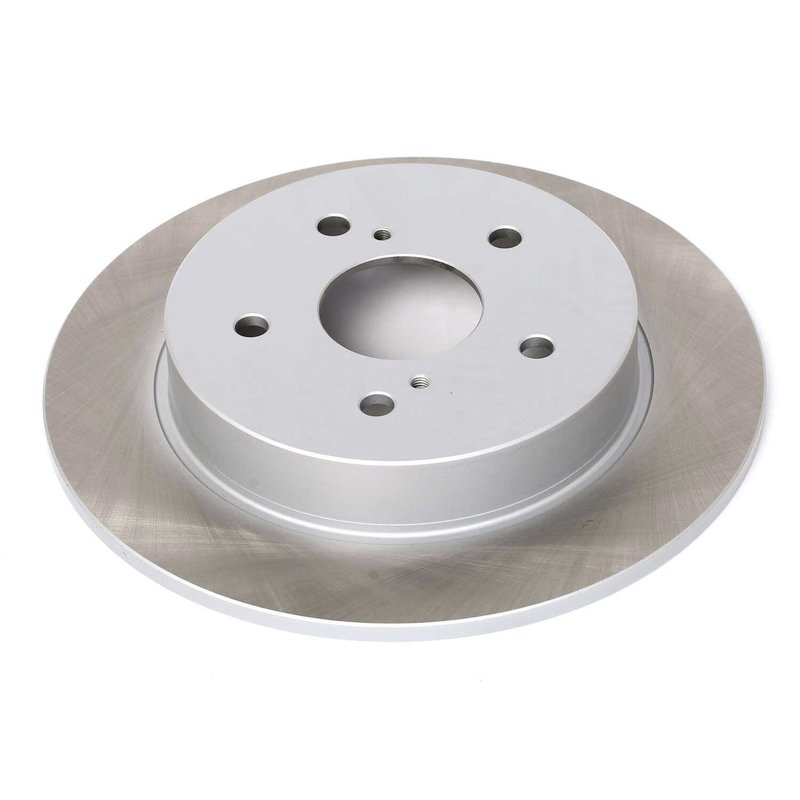

PowerStop JBR1505SCR Disc Brake Rotor - Rear
| Brand | PowerStop JBR1505SCR |
|---|---|
| Position | Rear |
| Discard Thickness | 0.31 |
| Discard Thickness | 8.00 |
| Nominal Thickness | 0.35 |
| Nominal Thickness | 9.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.69 |
| Overall Height | 43.00 |
| Outside Diameter | 10.94 |
| Outside Diameter | 278.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Rear Coated Hat and Edge Rotor |
| Fits | Suzuki · 8 vehicles |
OE-style replacement. Direct bolt-on rotor engineered to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Balanced construction. Mill-balanced full cast design with a smooth braking surface.
Cross-references 55611-80J00, 55611-80J01 and 55611-80J02 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
PowerStop JBR1505SCR is a rear disc brake rotor built as a direct bolt-on replacement for original equipment. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance and resist rust behind alloy wheels.
Compatible with Suzuki SX4 and Suzuki SX4 Crossover rear brake applications, this rotor is engineered to match OE weight and vane count for proper fitment and consistent performance. The JBR1505SCR also cross-references Suzuki part numbers 55611-80J00 and 55611-80J01 for the same application.
Key Features
- Part number JBR1505SCR for rear brake service
- Direct bolt-on OE-style replacement
- Silver epoxy coating on the hat, outer edge, and vanes
- Full cast, solid rotor construction with smooth surface
- Mill balanced for consistent rotational quality
- Designed to match original equipment specifications
Detailed Description
PowerStop’s coated hat and edge rotor line focuses on practical corrosion protection and OE-style fit. This rotor is a solid, full cast design with a 10.94-inch outside diameter, 4.50-inch bolt circle, and five lug holes. The coated finish helps protect exposed areas from rust while keeping the rotor looking cleaner behind the wheel.
For rear brake service on the Suzuki SX4 and Suzuki SX4 Crossover, JBR1505SCR is built to align with original equipment dimensions and performance targets. The part number JBR1505SCR is a straightforward choice when replacing a worn rear rotor with a coated, direct-fit design.
Common Issues This Rotor Can Address
- Rust buildup on exposed rotor surfaces
- Brake pulsation caused by worn rotor surfaces
- Reduced braking consistency from rotor wear
- Cosmetic corrosion visible behind alloy wheels
- Fitment problems from non-OE-style replacement parts
Installation Notes and Tips
Verify rotor diameter, bolt circle, and rear application before installation. This rotor uses a solid design and does not include an ABS tone ring. Confirm the hub and brake components are clean and within specification so the new rotor seats properly.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment. The coated finish adds corrosion resistance to the hat, edge, and vanes for long-term appearance protection.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2012 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2012 | Suzuki | SX4 Crossover | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2011 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2010 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2009 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2008 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
| 2007 | Suzuki | SX4 | Rear | PowerStop - Rear Coated Hat and Edge Rotor |
