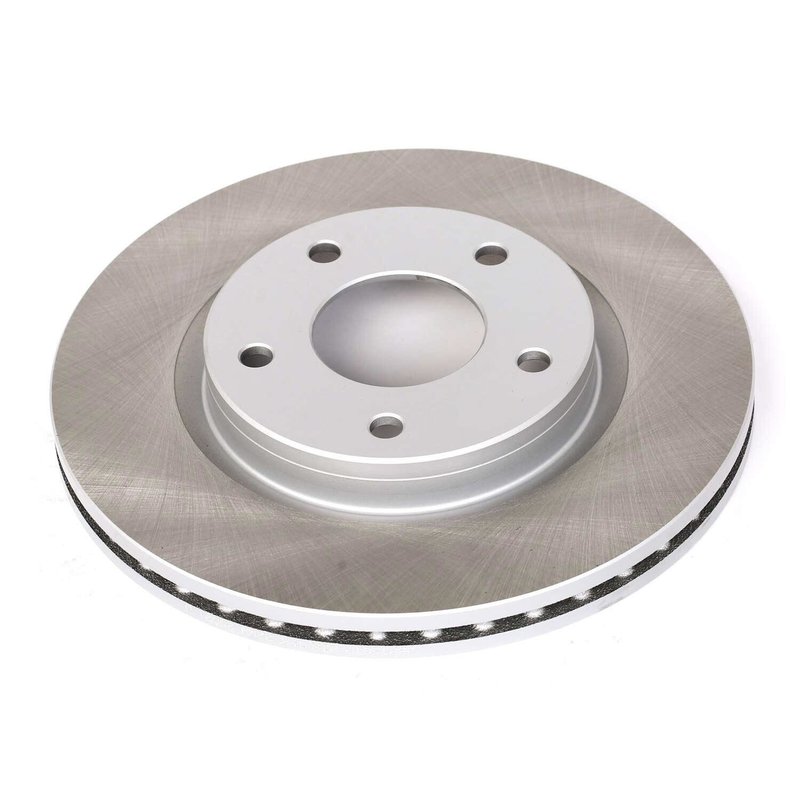

PowerStop JBR1591SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1591SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.87 |
| Discard Thickness | 22.00 |
| Nominal Thickness | 0.94 |
| Nominal Thickness | 24.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.73 |
| Overall Height | 44.00 |
| Outside Diameter | 11.02 |
| Outside Diameter | 280.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Nissan · 7 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented cast design. Full cast construction with a smooth surface and mill balance.
Cross-references 40206-3SG0A, 40206-3SG0B and 40206-3SG0E for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated front brake rotor
PowerStop JBR1591SCR is a direct bolt-on disc brake rotor built to match original equipment dimensions and performance targets. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance and resist rust behind alloy wheels.
Fits 2013-2019 Nissan Sentra, front. This rotor is a fitment-specific replacement for the Nissan Sentra front brake application and is identified by part number JBR1591SCR.
Key features
- Part number JBR1591SCR for easy catalog matching.
- Partially coated design protects the hat, outer edge, and vanes from corrosion.
- Vented, full cast construction with a smooth surface finish.
- Mill balanced to support OE-style operation and consistent braking feel.
- Built to match original equipment weight and vane count for guaranteed fitment.
Detailed description
PowerStop JBR1591SCR is a coated hat and edge rotor engineered as an OE-style replacement for the Nissan Sentra. The vented, full cast design measures 280 mm in outside diameter with a 114.3 mm bolt circle and five lug holes, while the 24 mm nominal thickness and 22 mm discard thickness provide the dimensional reference needed for service planning. The rust-resistant coating is applied where corrosion commonly starts, helping the rotor maintain a cleaner appearance in exposed wheel areas. The part number JBR1591SCR also cross-references Nissan 40206-3SG0A and 40206-3SG0B for the same application.
What it is used for
- Replacing a worn or rusted front brake rotor.
- Restoring smooth braking performance after rotor wear.
- Addressing corrosion on the hat, edge, or internal vanes.
- Matching OE-style dimensions for a direct replacement service job.
Installation notes and tips
Verify rotor diameter, thickness, bolt pattern, and vented construction before installation. Clean the hub mounting surface thoroughly so the rotor seats flat and runs true. Follow the vehicle service manual for torque procedure and brake bedding after installation.
Quality assurance
PowerStop designs this rotor to match original equipment specifications, including weight and vane count, for confirmed fitment on the listed application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Nissan | Sentra | 1.8L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2015 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2014 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2013 | Nissan | Sentra | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
