Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

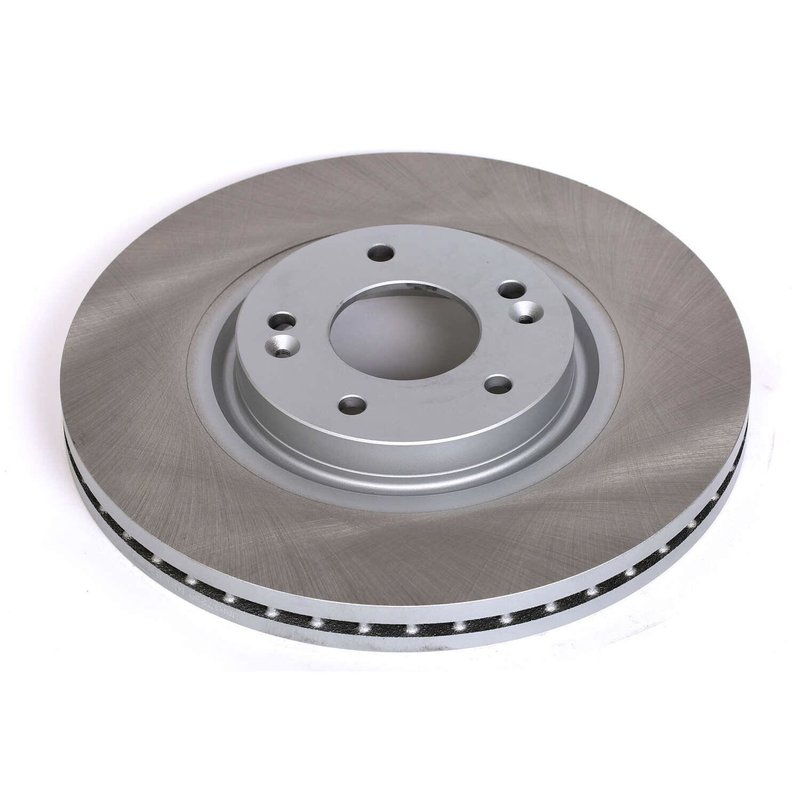

PowerStop JBR1723SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1723SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.06 |
| Discard Thickness | 27.00 |
| Nominal Thickness | 1.15 |
| Nominal Thickness | 29.10 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.94 |
| Overall Height | 49.30 |
| Outside Diameter | 12.60 |
| Outside Diameter | 320.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Kia · 7 vehicles |
OE-style replacement. Direct bolt-on design matches original equipment specifications for straightforward service.
Corrosion-resistant coating. Silver epoxy protects the hat, outer edge, and vanes from rust.
Vented full cast rotor. Built for consistent braking performance with a smooth surface finish.
Cross-references 51712-A9000 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
The PowerStop JBR1723SCR is a direct bolt-on front brake rotor for the Kia Sedona. It is built to match original equipment dimensions and vane count, with a corrosion-resistant coating on the hat, outer edge, and vanes for a cleaner appearance behind alloy wheels.
Key Features
- Partially coated rotor with silver epoxy on corrosion-prone areas
- Vented, full cast construction for OE-style brake performance
- Mill balanced for smooth operation
- Smooth surface finish
- Direct replacement design with OE-matching specifications
Detailed Description
PowerStop JBR1723SCR is engineered as a front disc brake rotor for 2015-2021 Kia Sedona applications. The vented design, 12.60-inch outside diameter, and OE-matching weight and vane count support proper fitment and consistent braking performance. The coated hat and edge help resist rust in exposed areas, while the smooth braking surface and full cast construction provide a familiar OE-style replacement for routine brake service. This part cross-references Hyundai/Kia 51712-A9000 for the same application.
Common Issues This Part May Address
- Rotor corrosion on exposed hat and edge surfaces
- Brake pulsation caused by worn or uneven rotor surfaces
- Reduced braking consistency from a rotor that no longer meets thickness specifications
- Visible rust behind alloy wheels
Installation Notes and Tips
Compatible with 2015-2021 Kia Sedona front brake applications. Verify rotor diameter, bolt circle, and thickness before installation. The 5-lug, 114.30 mm bolt circle and vented design should be matched to the vehicle’s original brake setup for correct fitment.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2015 | Kia | Sedona | Front | PowerStop - Front Coated Hat and Edge Rotor |
