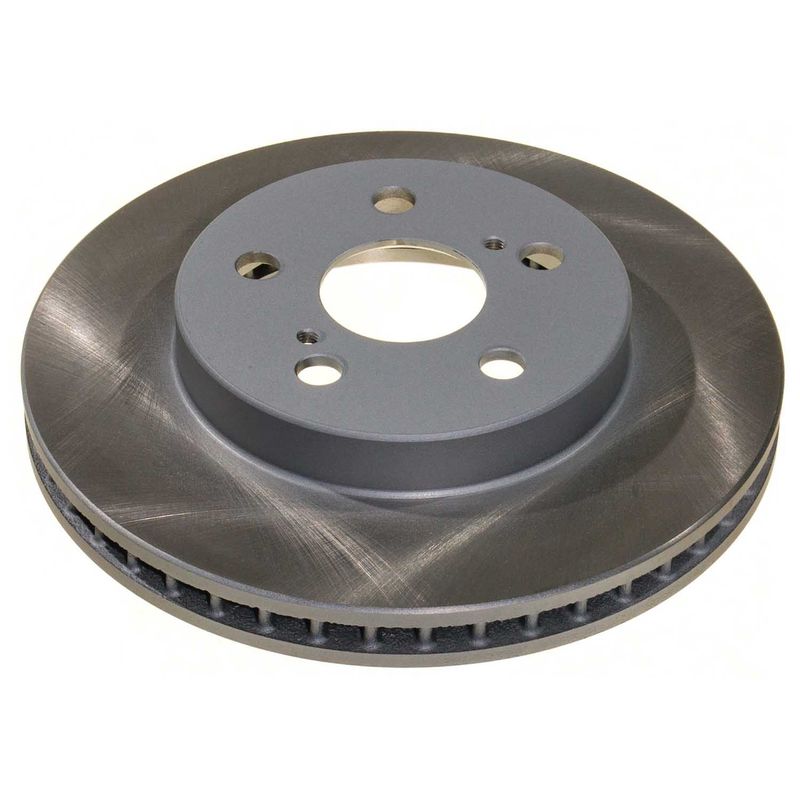

PowerStop JBR1744SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR1744SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.87 |
| Discard Thickness | 22.00 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.94 |
| Overall Height | 49.40 |
| Outside Diameter | 10.04 |
| Outside Diameter | 255.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 100.00 |
| Mounting Bolt Hole Circle Diameter | 3.94 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Toyota · 17 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.
Vented full-cast design. Smooth braking surface with mill-balanced construction for OE fitment.
Cross-references 43512-47060 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated front brake rotor
This PowerStop disc brake rotor is a direct bolt-on replacement built to match original equipment specifications. It is a coated, vented rotor with corrosion-resistant protection on the hat, outer edge, and vanes for a cleaner appearance behind alloy wheels.
Fits 2020-2022 Toyota Corolla, front. Fits 2016-2022 Toyota Prius, front. Fits 2019-2022 Toyota Prius AWD-e, front. Fits 2017-2019 Toyota Prius Prime, front.
Key features
- Part number JBR1744SCR for easy identification and ordering.
- Silver epoxy coating on corrosion-prone areas helps resist rust.
- Vented, full-cast construction with a smooth surface finish.
- Mill-balanced design matches OE weight and vane count.
- Direct bolt-on replacement for OE-style fitment.
Detailed description
PowerStop JBR1744SCR is a front coated hat and edge rotor engineered for Toyota Corolla, Toyota Prius, Toyota Prius AWD-e, and Toyota Prius Prime applications listed in the fitment data. The rotor uses full-cast construction, a vented design, and a smooth braking surface to match original equipment dimensions and performance targets. Its rust-resistant coating covers the hat, outer edge, and internal vanes to help preserve appearance and reduce corrosion exposure.
The JBR1744SCR is designed around OE specifications, including weight and vane count, which supports consistent installation and proper rotor replacement on the specified Toyota models. This part cross-references 43512-47060 for the same application.
What this rotor helps address
- Corrosion on exposed rotor surfaces and internal vanes.
- Brake pulsation caused by worn or damaged rotors.
- Uneven braking feel from a rotor that no longer meets OE dimensions.
- Visible rust behind alloy wheels.
Installation notes and tips
Verify rotor diameter, bolt pattern, and thickness before installation. This rotor is a front application and should be matched to the vehicle position shown in the fitment data. Clean the hub mounting surface before installing the rotor to help maintain proper seating and brake performance.
Quality assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed fitment on the listed applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2022 | Toyota | Corolla | Hybrid LE | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2022 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2022 | Toyota | Prius AWD-e | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2021 | Toyota | Corolla | — | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2021 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2021 | Toyota | Prius AWD-e | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Toyota | Corolla | — | 1.8L | L4 | FULL HYBRID EV-GAS (FHEV) | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Toyota | Prius AWD-e | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Toyota | Prius AWD-e | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Toyota | Prius Prime | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Toyota | Prius Prime | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Toyota | Prius Prime | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Toyota | Prius | — | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | ||||||||
