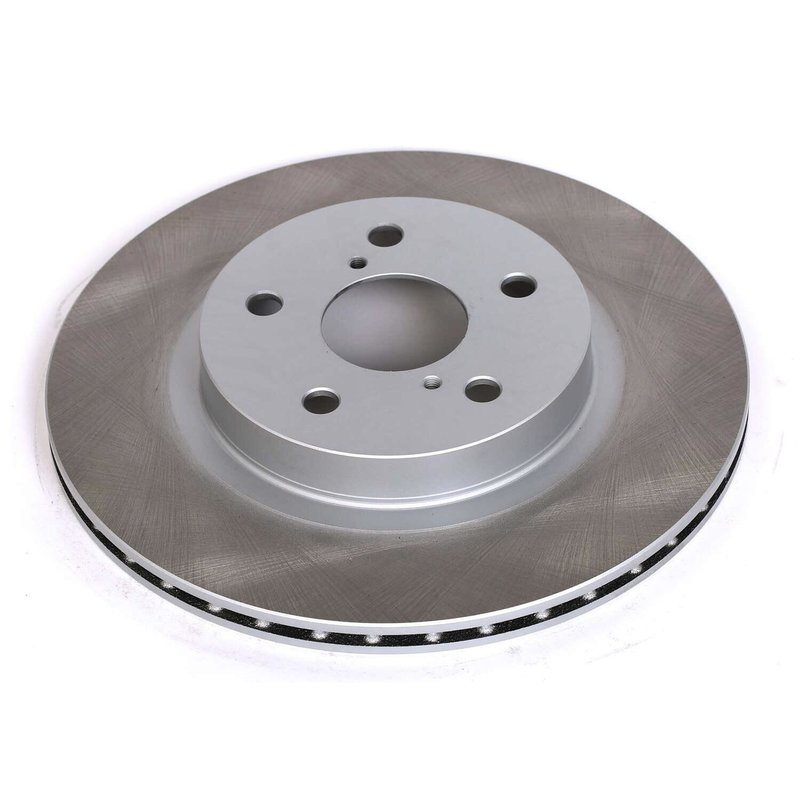

PowerStop JBR793SCR Disc Brake Rotor - Front
OE Quality 60-Day Returns
PowerStop
 PowerStop - Front Coated Hat and Edge Rotor

PowerStop JBR793SCR Disc Brake Rotor - Front

Brand PowerStop JBR793SCR
Position Front
Discard Thickness 0.63
Discard Thickness 16.00
Nominal Thickness 0.71
Nominal Thickness 18.00
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 1.83
Overall Height 46.50
Outside Diameter 11.85
Outside Diameter 301.00
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 114.30
Mounting Bolt Hole Circle Diameter 4.50
Stud/Lug Hole Quantity 5
Product line PowerStop - Front Coated Hat and Edge Rotor
Fits Toyota · 8 vehicles

OE-style replacement. Direct bolt-on brake rotor with original-equipment dimensions and fit.

Corrosion-resistant coating. Silver epoxy covers the hat, outer edge, and vanes for added protection.

Vented cast design. Full cast construction with a smooth surface and mill balancing.

Cross-references 43512-42010 and 43512-42020 for the same application. See all 2.

$71.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $71.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

PowerStop JBR793SCR is a coated front disc brake rotor built as a direct bolt-on replacement for original equipment. It is made for drivers who want OE-style fitment, corrosion protection, and consistent braking performance in a vented rotor design.

Key Features

  • Partially coated rotor with silver epoxy on corrosion-prone areas
  • Coated hat, outer edge, and vanes help resist rust
  • Full cast construction with mill balancing for stable operation
  • Vented, smooth-surface design matched to OE specifications
  • 11.85 in. outside diameter, 4.50 in. bolt circle, 5-lug pattern

Detailed Description

This PowerStop brake rotor is engineered to match original equipment weight and vane count for proper fit and function. The coated hat and edge help preserve appearance behind alloy wheels while the vented full cast design supports heat management during repeated stops. For Toyota RAV4 brake rotor replacement applications, JBR793SCR provides a direct-fit solution that follows OE dimensions and mounting layout.

Compatible with 1996-2003 Toyota RAV4 front brake rotor applications, this part number JBR793SCR is a practical choice for restoring rotor condition when the original surface is worn or corrosion has started to form. The same part number, JBR793SCR, is also referenced by 43512-42010 and 43512-42020 for the same application.

Common Uses

  • Replacing a worn front brake rotor with correct OE-style dimensions
  • Addressing rust on the hat, edge, or vane areas
  • Restoring smooth braking feel after rotor wear or scoring
  • Maintaining a cleaner appearance behind alloy wheels
  • Supporting consistent braking performance on a Toyota RAV4

Installation Notes

Install as a direct bolt-on rotor replacement and verify disc thickness, outside diameter, and bolt pattern before installation. This rotor uses a vented, 5-lug design with a 114.30 mm bolt circle and no ABS tone ring included. Confirm the vehicle’s front brake rotor application and compare the existing rotor dimensions to JBR793SCR before service.

Quality Assurance

PowerStop designs its coated rotors to match OE performance and specifications, including weight and vane count, for guaranteed fitment. The corrosion-resistant coating is applied to the hat, outer edge, and vanes to help protect exposed surfaces.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelFuel TypePositionNotes
2003ToyotaRAV4BATTERY EV (EV/BEV)FrontPowerStop - Front Coated Hat and Edge Rotor
2002ToyotaRAV4BATTERY EV (EV/BEV)FrontPowerStop - Front Coated Hat and Edge Rotor
2001ToyotaRAV4BATTERY EV (EV/BEV)FrontPowerStop - Front Coated Hat and Edge Rotor
2000ToyotaRAV4BATTERY EV (EV/BEV)FrontPowerStop - Front Coated Hat and Edge Rotor
1999ToyotaRAV4GASFrontPowerStop - Front Coated Hat and Edge Rotor
1998ToyotaRAV4GASFrontPowerStop - Front Coated Hat and Edge Rotor
1997ToyotaRAV4—FrontPowerStop - Front Coated Hat and Edge Rotor
1996ToyotaRAV4—FrontPowerStop - Front Coated Hat and Edge Rotor
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
43512-4201043512-42020
