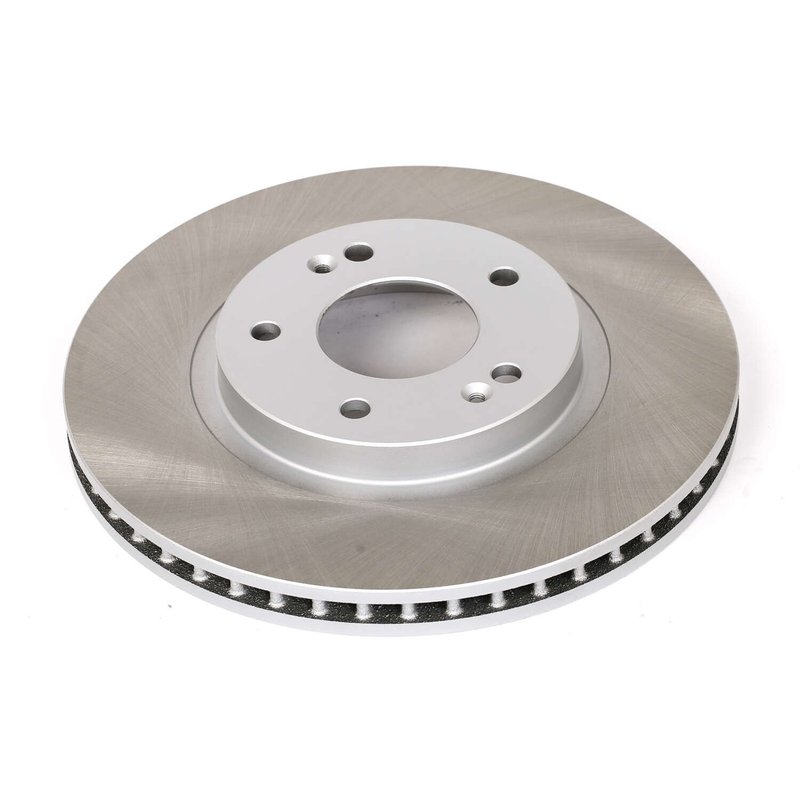

PowerStop JBR948SCR Disc Brake Rotor - Front
| Brand | PowerStop JBR948SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.96 |
| Discard Thickness | 24.40 |
| Nominal Thickness | 1.02 |
| Nominal Thickness | 26.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.81 |
| Overall Height | 46.10 |
| Outside Diameter | 11.57 |
| Outside Diameter | 293.80 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.30 |
| Mounting Bolt Hole Circle Diameter | 4.50 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Hyundai · 6 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, outer edge, and vanes from rust.
Vented full cast design. Smooth surface and mill-balanced construction support consistent braking.
Cross-references 51712-26100 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
PowerStop JBR948SCR is a direct bolt-on disc brake rotor built for OE-style replacement on select applications. It combines a vented, full cast design with a corrosion-resistant coating to help preserve appearance and performance.
Key Features
- Partially coated rotor with silver epoxy on corrosion-prone areas
- Rust-resistant finish on the hat, outer edge, and vanes
- Vented construction for heat management
- Full cast rotor with mill-balanced construction
- Smooth friction surface for consistent brake contact
- Matches original equipment weight and vane count for fitment
Detailed Description
PowerStop JBR948SCR is engineered as a front disc brake rotor for the 2001-2006 Hyundai Santa Fe. The coated hat and edge design helps reduce visible corrosion behind alloy wheels, while the vented, smooth-surface rotor supports stable braking performance. With OE-matched specifications and direct bolt-on fitment, this rotor is built to replace the original part without changing the vehicle’s brake system layout. The JBR948SCR part number is also referenced by 51712-26100 for the same application.
PowerStop’s coated rotor line focuses on practical corrosion protection and OE-style replacement fitment. The silver epoxy coating is applied to areas that are commonly exposed to rust, helping the rotor maintain a cleaner appearance over time.
What It Helps Address
- Visible rust on the rotor hat and outer edge
- Brake vibration caused by worn or uneven rotors
- Reduced braking consistency from heat buildup
- Fitment issues when replacing an OE-style front rotor
- Premature corrosion on exposed rotor surfaces
Installation Notes and Tips
Fits 2001-2006 Hyundai Santa Fe, front. Verify rotor dimensions, bolt circle, and brake system specifications before installation. The JBR948SCR is a direct replacement rotor, so it should be matched to the original application and inspected alongside pads and related brake components during service.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Hyundai | Santa Fe | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Hyundai | Santa Fe | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2004 | Hyundai | Santa Fe | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2003 | Hyundai | Santa Fe | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2002 | Hyundai | Santa Fe | 4WD | 2.7L | V6 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2001 | Hyundai | Santa Fe | — | 2.7L | V6 | Front | PowerStop - Front Coated Hat and Edge Rotor |
