Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

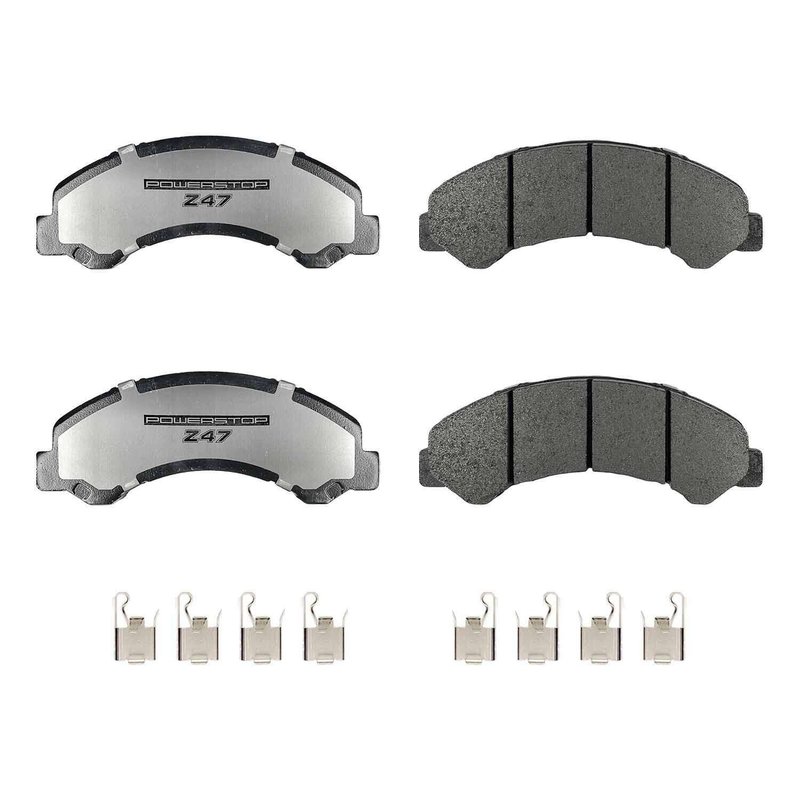

PowerStop Z47-826 Disc Brake Pad Set - Front
| Brand | PowerStop Z47-826 |
|---|---|
| Position | Front |
| 10701 | Yes |
| Pad Wear Sensor Included | Yes |
| Slotted | Yes |
| Friction Material Composition | Semi-metallic |
| Mounting Hardware Included | Yes |
| Grade Type | Performance |
| Pad Shims Included | Yes |
| Brake Lubricant Included | No |
| Pad Wear Sensor Type | Mechanical |
| Chamfered Edges | No |
| Friction Surface Scorched | Yes |
| Outer Pad Overall Thickness | 19.9 |
| Inner Pad Overall Thickness | 19.9 |
| Product line | Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| Fits | Chevrolet and GMC · 12 vehicles |
Fleet-duty formula. Carbon-fiber semi-metallic compound built for demanding brake service.
Hardware included. Premium stainless-steel hardware is provided for brake service completion.
Wear sensor included. Mechanical pad wear sensor and shims are part of the pad set.
Cross-references Centric Parts 106.08260 and SX826 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Heavy-Duty Front Brake Pads
PowerStop Z47-826 is a front disc brake pad set built for medium-duty and fleet use where vehicles operate at full gross vehicle weight on a daily basis. It uses a semi-metallic, carbon-fiber reinforced friction formula to deliver consistent stopping performance and lower cost per mile in severe-duty service.
Key Features
- Semi-metallic friction material with carbon-fiber reinforcement for demanding brake applications.
- Mechanical friction attachment to the backing plate for added shear resistance.
- Slotted, scorched pad surface for stable initial performance.
- Pad shims and a mechanical wear sensor are included.
- Premium stainless-steel hardware is included for brake service completion.
Fitment Details
Compatible with front brake applications on 1997-2000 Chevrolet W3500 Tiltmaster, 1997-2000 Chevrolet W4500 Tiltmaster, 1998-2000 GMC W3500 Forward, and 1998-2000 GMC W4500 Forward. Fits 1997 Chevrolet W4500 Tiltmaster, front; Fits 1997 GMC W4500 Forward, front; Fits 1998 Chevrolet W3500 Tiltmaster, front; Fits 1998-2000 Chevrolet W4500 Tiltmaster, front; Fits 1998-2000 GMC W3500 Forward, front; Fits 1998-2000 GMC W4500 Forward, front. Part number Z47-826 is the correct reference for these applications, and Z47-826 is also cross-referenced to Centric Parts 106.08260 and SX826 for the same application.
What It Helps Address
- Brake fade during repeated heavy-load stops.
- Reduced pad durability in fleet and commercial duty cycles.
- Inconsistent friction under severe service conditions.
- Brake service delays caused by worn or missing wear indicators.
- Brake job completion issues when replacement hardware is needed.
Installation Notes and Tips
Use the vehicle notes to confirm gross vehicle weight and caliper casting details before ordering. Inspect rotors, calipers, and guide hardware during installation, and follow the service procedure for pad bedding after replacement. Verify the front position and application-specific notes for the Chevrolet W3500 Tiltmaster, Chevrolet W4500 Tiltmaster, GMC W3500 Forward, and GMC W4500 Forward before installation.
Quality Assurance
PowerStop positions the Z47 MD and Fleet line for severe-duty fleet service, with a carbon-fiber semi-metallic compound and mechanically attached friction material for added strength in demanding use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Chevrolet | W3500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 2000 | Chevrolet | W4500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 2000 | GMC | W4500 Forward | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1999 | Chevrolet | W3500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1999 | Chevrolet | W4500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1999 | GMC | W4500 Forward | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1998 | Chevrolet | W3500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1998 | Chevrolet | W4500 Tiltmaster | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1998 | GMC | W3500 Forward | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1998 | GMC | W4500 Forward | Front | GVW Over 14000 and under 16000 Lbs.; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1997 | Chevrolet | W4500 Tiltmaster | Front | Caliper Casting# AD57T / A918; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| 1997 | GMC | W4500 Forward | Front | Caliper Casting# AD57T / A918; Power Stop - Front Z47 MD and Fleet Carbon-Fiber Semi-Met Brake Pads with Hardware Kit |
| No rows match your filter. | ||||
