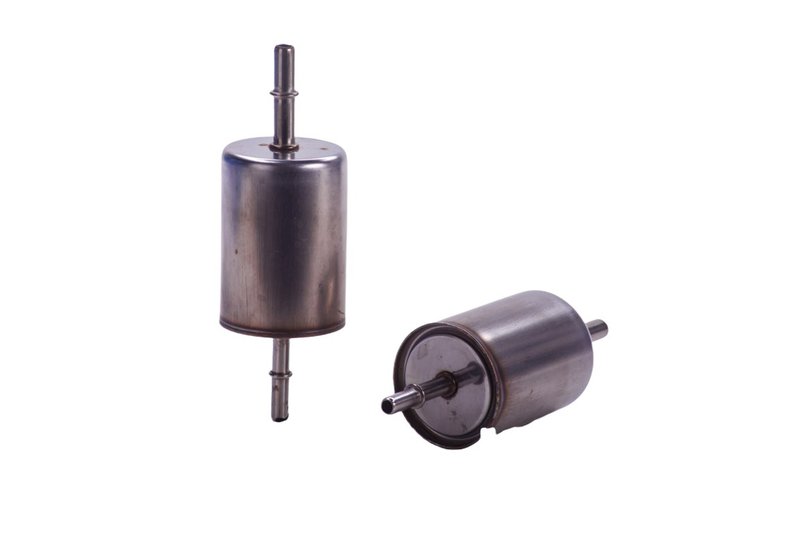

Premium Guard PF7416 Fuel Filter

Fuel Filter Overview

Premium Guard PF7416 is a specific-fit in-line fuel filter for gas applications. It is built for Chrysler, Dodge, and Eagle vehicles from the 1993-1997 model years, including Chrysler Concorde, Chrysler Intrepid, Chrysler LHS, Dodge Intrepid, Eagle Vision, and Chrysler New Yorker applications.

With male inlet and outlet connections and a regular-grade design, this fuel filter is sized for direct replacement service in the fuel delivery system. The PF7416 part number is also useful when cross-checking replacement options for the same application.

• Specific-fit in-line fuel filter for gas fuel systems
• Male inlet and outlet ends for matching connection style
• Regular-grade construction for routine fuel filtration service
• Fits Chrysler, Dodge, and Eagle applications from 1993-1997
• Premium Guard PF7416 identification for catalog matching

Detailed Fitment and Function

Compatible With Chrysler Concorde, Chrysler Intrepid, Chrysler LHS, Dodge Intrepid, Eagle Vision, and Chrysler New Yorker applications, this Premium Guard fuel filter is designed around the listed dimensions and in-line mounting style. The PF7416 uses a 6.42-inch body length, 2.16-inch outside diameter at the top and bottom, and male ends with 9.5 mm inlet and 7.9 mm outlet port sizes. Those specifications matter when matching the filter to the fuel line connection points and available space in the fuel system.

This part cross-references Wix 33301 and Baldwin BF1181 for the same application. Use PF7416 when you need a specific-fit fuel filter for 1993-1997 Chrysler Concorde, 1993-1997 Dodge Intrepid, or 1993-1997 Eagle Vision service.

Common Replacement Reasons

• Restricted fuel flow from a clogged filter element
• Hard starting caused by fuel delivery restriction
• Engine hesitation under load from reduced fuel supply
• Maintenance replacement for aging in-line fuel filtration

Installation Notes

Confirm the inlet and outlet port sizes, overall length, and in-line mounting layout before installation. The filter does not list a gasket or seal included, so verify sealing components separately during service. Match the fuel line routing and connection orientation to the vehicle’s existing fuel system layout.

Quality Assurance

Premium Guard PF7416 is cataloged as a specific-fit replacement fuel filter and is cross-referenced to multiple aftermarket part numbers for the same application, including Wix 33301 and Baldwin BF1181.
