Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

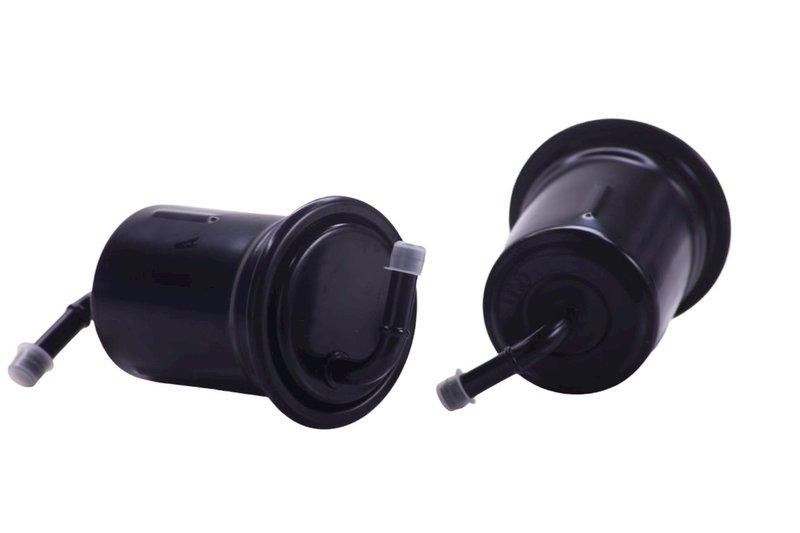

Premium Guard PF7735 Fuel Filter
| Brand | Premium Guard PF7735 |
|---|---|
| Inlet Outside Diameter | 0.31 |
| Inlet Outside Diameter | 7.9 |
| Outlet Outside Diameter | 0.31 |
| Outlet Outside Diameter | 7.9 |
| Fuel Type | Gas |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Height | 140.5 |
| Height | 5.53 |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Gasket Or Seal Included | No |
| End 1 Port Outside Diameter | 0.31 |
| End 1 Port Outside Diameter | 7.9 |
| End 2 Port Outside Diameter | 0.31 |
| End 2 Port Outside Diameter | 7.9 |
| Micron Rating | 10 |
| Flow Rate | 33.29 |
| Bottom Outside Diameter | 2.17 |
| Bottom Outside Diameter | 55 |
| Outside Diameter Top | 2.76 |
| Outside Diameter Top | 70 |
| Mounting Type | In-line |
| Fits | Ford and Suzuki · 10 vehicles |
Specific-fit design. Built for direct replacement in the listed fuel system applications.
10-micron filtration. Captures fine debris to help keep fuel moving cleanly.
In-line mounting. Uses male inlet and outlet connections for a straightforward layout.
Cross-references Anchor 3510, Focus Auto Parts 86510 and Four Seasons 73510 for the same application. See all 30.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Filter Overview
Premium Guard PF7735 is a specific-fit fuel filter for gas applications with in-line mounting. It is built with male inlet and outlet connections, a 10-micron rating, and a 33.29 flow rate for fuel system filtration. Fits 2002-2006 Suzuki XL-7, 2001 Suzuki Grand Vitara, and 1994-1997 Ford Aspire.
Key Features
- Specific-fit fuel filter for gas fuel systems.
- In-line design with male inlet and outlet ends.
- 10-micron filtration for fine particle capture.
- 33.29 flow rate for steady fuel delivery.
- Gasket or seal not included.
Detailed Description
Premium Guard PF7735 is a replacement fuel filter for vehicles that use an in-line, specific-fit configuration. The filter measures 140.5 mm in height, with a 70 mm top outside diameter and a 55 mm bottom outside diameter, and uses 7.9 mm inlet and outlet port dimensions. This part number, PF7735, is listed for 2002-2006 Suzuki XL-7, 2001 Suzuki Grand Vitara, and 1994-1997 Ford Aspire, making it a fitment-focused option for those applications. The PF7735 is intended for gas fuel systems and uses a regular grade construction.
What It Is Used For
- Replacing a restricted fuel filter that can reduce fuel flow.
- Addressing contamination in the fuel supply.
- Restoring proper filtration in an in-line fuel system.
- Supporting consistent fuel delivery in gas applications.
Installation Notes and Tips
Confirm the vehicle’s fuel line size, inlet and outlet orientation, and in-line mounting layout before installation. Match the specific-fit application to the vehicle listed in the fitment data for PF7735. Because no gasket or seal is included, inspect the existing sealing components and replace them if needed during service.
Quality Assurance
Premium Guard PF7735 is a specific-fit replacement filter built to the listed dimensions and filtration rating for the stated applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2006 | Suzuki | XL-7 | 2.7L | V6 | — |
| 2005 | Suzuki | XL-7 | 2.7L | V6 | — |
| 2004 | Suzuki | XL-7 | 2.7L | V6 | — |
| 2003 | Suzuki | XL-7 | 2.7L | V6 | — |
| 2002 | Suzuki | XL-7 | 2.7L | V6 | — |
| 2001 | Suzuki | Grand Vitara | 2.7L | V6 | — |
| 1997 | Ford | Aspire | 1.3L | L4 | — |
| 1996 | Ford | Aspire | 1.3L | L4 | — |
| 1995 | Ford | Aspire | 1.3L | L4 | — |
| 1994 | Ford | Aspire | 1.3L | L4 | — |
| No rows match your filter. | |||||
