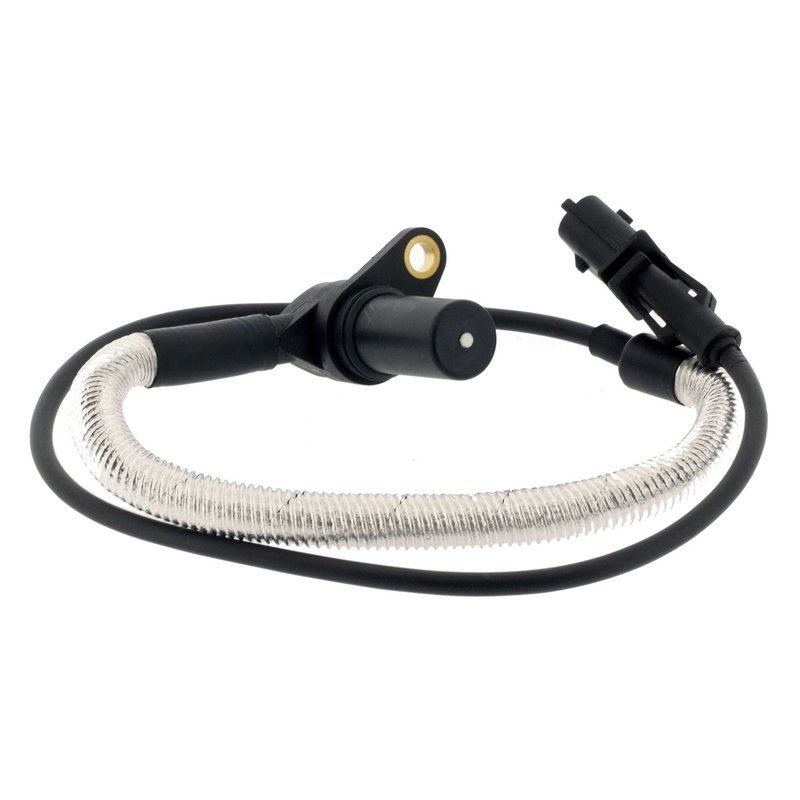

Prenco 4D-1007 Engine Crankshaft Position Sensor

Overview of Prenco Engine Crankshaft Position Sensor 4D-1007

The Prenco Engine Crankshaft Position Sensor 4D-1007 is designed specifically for Cadillac Catera and CTS models. This sensor plays a critical role in engine management by accurately monitoring the crankshaft's position and speed, ensuring optimal ignition timing and engine performance.

• Wiring harness length: 25.0 inches for flexible installation
• Terminal type: Blade terminals for secure electrical connections
• Wire quantity: 3 wires for reliable signal transmission
• Connector quantity: 1 connector with a rectangular shape
• Connector gender: Female connector compatible with male terminals
• Terminal quantity: 3 terminals with male gender
• Sensor body diameter: 0.7 inches for compact fitment
• Mounting bracket not included

Detailed Product Description

The Prenco 4D-1007 crankshaft position sensor is engineered to meet the specific requirements of Cadillac Catera and CTS vehicles. Featuring a 25-inch wiring harness, it provides ample length for straightforward routing within the engine bay. The sensor includes a single rectangular female connector designed to mate with male blade terminals, ensuring a secure and stable electrical connection. With three wires and terminals, this sensor reliably transmits crankshaft position data to the engine control unit (ECU). The compact 0.7-inch sensor body diameter allows for easy integration into the engine assembly without interference. Note that this sensor does not come with a mounting bracket, so the existing bracket on the vehicle should be used during installation.

Common Applications and Issues Addressed

• Restores accurate crankshaft position detection for proper ignition timing
• Resolves engine stalling or misfiring related to faulty sensor signals
• Eliminates difficulty starting the engine caused by sensor failure
• Prevents check engine light triggers related to crankshaft sensor faults
• Improves overall engine performance and fuel efficiency in Cadillac Catera and CTS

Installation Notes and Tips

• Ensure the wiring harness is routed away from high-heat sources to prevent damage
• Verify connector polarity: female connector on sensor mates with male terminals on vehicle harness
• Use existing mounting bracket from the vehicle as this sensor does not include one
• Check for secure blade terminal connections to avoid intermittent signal loss
• Consult vehicle service manual for torque specifications and sensor location

Quality Assurance and Warranty

Prenco Engine Crankshaft Position Sensor 4D-1007 is manufactured to meet OEM specifications for Cadillac Catera and CTS models. Each sensor undergoes rigorous testing to ensure reliable performance and durability under normal operating conditions. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor or region.
