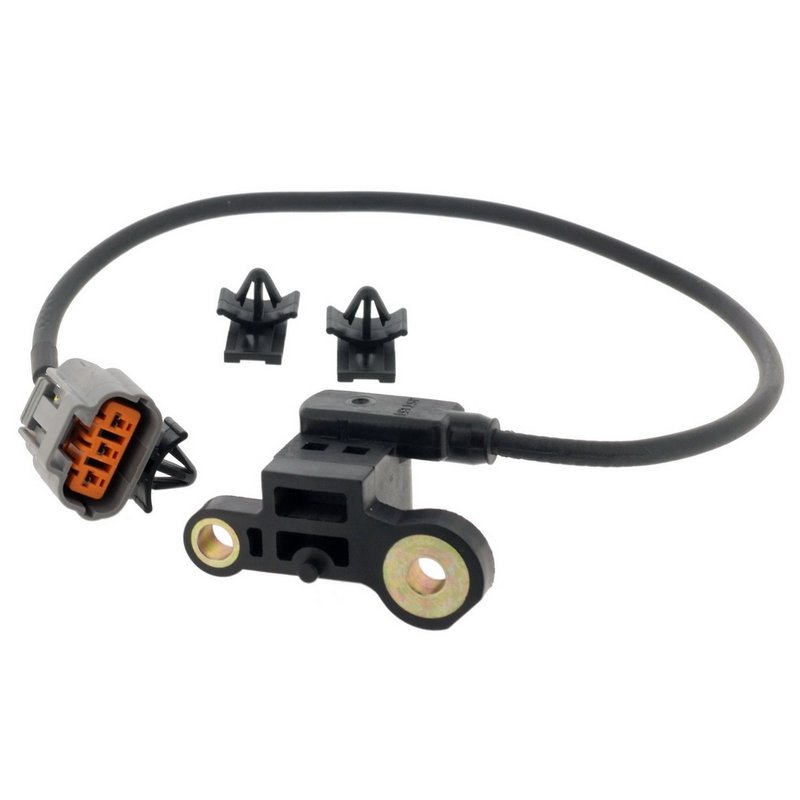

Prenco 4D-1097 Engine Crankshaft Position Sensor
| Brand | Prenco 4D-1097 |
|---|---|
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Mounting Bracket Included | No |
| Terminal Gender | Female |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Wire Quantity | 3 |
| Wiring Harness Length | 16.0 |
| Fits | Mazda · 12 vehicles |
Crankshaft position sensor. Monitors crankshaft position for precise engine timing.
3-wire design. Features a rectangular male connector with blade terminals.
Direct-fit replacement. No mounting bracket included for a cleaner install.
Cross-references Anchor 9694, Beck/Arnley 180-0323 and Standard Ignition PC224 for the same application. See all 6.
Engine Crankshaft Position Sensor for Mazda
Prenco 4D-1097 is an engine crankshaft position sensor built for direct-fit service on select Mazda applications. It uses a 3-wire layout with a rectangular 1-connector design, a male connector, female terminals, and a 16.0 wiring harness length for a straightforward replacement on the listed vehicles.
Key Features
- Engine crankshaft position sensor for ignition system service
- Prenco 4D-1097 part number for accurate catalog matching
- 3-wire configuration with 3 terminals
- Rectangular connector shape with 1 connector
- Male connector and female terminal design
- Blade terminal type
- 16.0 wiring harness length
- No mounting bracket included
Detailed Description
This Prenco crankshaft position sensor monitors crankshaft position and engine speed data used by the engine control system for timing and fuel management. It is listed for 1998-2002 Mazda 626, 1999-2003 Mazda Protege, and 2002-2003 Mazda Protege5, making it a focused replacement choice for Mazda Protege crankshaft position sensor and Mazda 626 crankshaft position sensor applications. The Prenco 4D-1097 cross-references Beck/Arnley 180-0323 and Standard Ignition PC224 for the same application.
What It Helps Address
- Crankshaft position signal loss
- Intermittent no-start conditions
- Stalling related to crank signal interruption
- Rough running caused by inaccurate engine speed input
- Check engine light concerns tied to crank sensor faults
Installation Notes and Tips
Verify connector shape, terminal style, and harness length against the original sensor before installation. Confirm the vehicle application by year and model: Fits 1998-2002 Mazda 626, N/A; Fits 1999-2003 Mazda Protege, N/A; Fits 2002-2003 Mazda Protege5, N/A. Inspect the connector and wiring for corrosion, damaged terminals, or heat-related wear before connecting the new sensor. Because no mounting bracket is included, reuse the existing mounting arrangement if required by the vehicle.
Quality Assurance
Prenco replacement parts are cataloged to match the listed fitment and connector specifications for accurate service selection. Use the part number 4D-1097 to confirm the correct crankshaft position sensor for your Mazda Protege, Protege5, or 626 application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Mazda | Protege | N/A | — |
| 2003 | Mazda | Protege5 | N/A | — |
| 2002 | Mazda | 626 | N/A | — |
| 2002 | Mazda | Protege | N/A | — |
| 2002 | Mazda | Protege5 | N/A | — |
| 2001 | Mazda | 626 | N/A | — |
| 2001 | Mazda | Protege | N/A | — |
| 2000 | Mazda | 626 | N/A | — |
| 2000 | Mazda | Protege | N/A | — |
| 1999 | Mazda | 626 | N/A | — |
| 1999 | Mazda | Protege | N/A | — |
| 1998 | Mazda | 626 | N/A | — |
| No rows match your filter. | ||||
