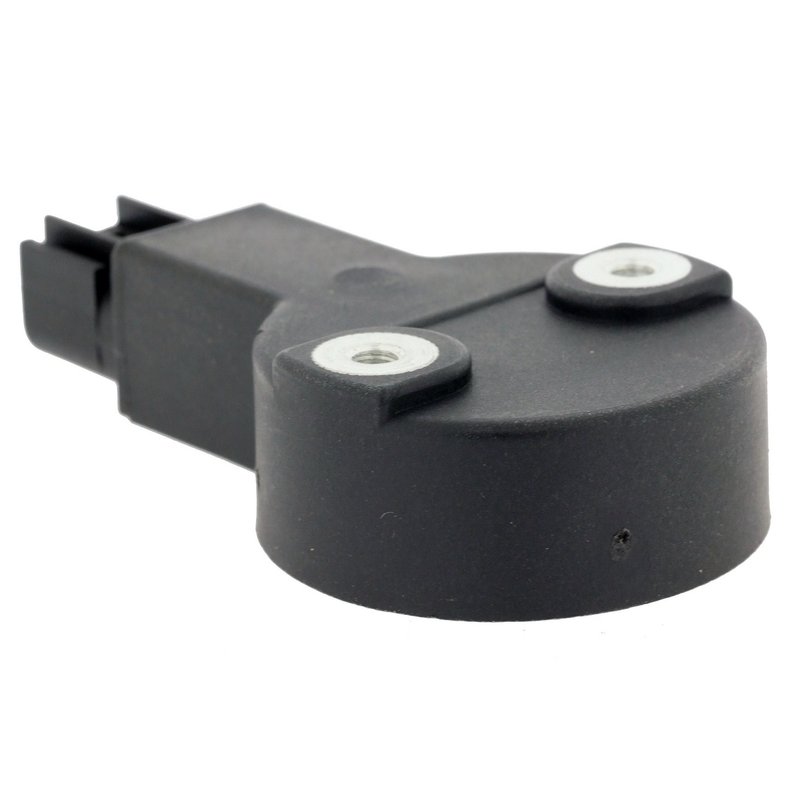

Prenco 4E-1009 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor for Ford and Mazda

Prenco 4E-1009 is an engine camshaft position sensor built with a rectangular female connector, blade terminals, and a regular-grade construction for direct replacement service. It is a fitment-based solution for Ford Ranger, Taurus, Windstar, Mustang, Thunderbird, Freestar, Explorer, Mercury Sable, and Mazda B3000 applications that use the listed connector configuration.

Key Features

• Engine camshaft position sensor for ignition system signal monitoring
• Prenco 4E-1009 replacement part number for catalog matching
• Rectangular connector shape with 1 female connector
• 2 blade terminals for the specified vehicle harness connection
• Regular grade construction for everyday repair use
• No mounting bracket included

Detailed Description

The Prenco 4E-1009 camshaft position sensor helps the engine control system track camshaft position so the PCM can manage ignition timing and fuel delivery based on the signal it receives. This part is listed for 1998-2008 Ford Ranger, 1998-2007 Ford Taurus, 1999-2003 Ford Windstar, 1999-2004 Ford Mustang, 2002-2003 Ford Thunderbird, 2004-2007 Ford Freestar, 1999-2000 Ford Explorer, 1998-2005 Mercury Sable, and 1998-2007 Mazda B3000 applications, with 2-pin notes shown on select Ranger, Explorer, and Windstar listings. The 4E-1009 part number is also useful when cross-checking replacement options during diagnosis or catalog lookup. This part cross-references Standard Ignition PC321 for the same application.

What It Helps Resolve

• Camshaft position sensor fault codes
• Hard starting or extended crank conditions
• Intermittent stalling or rough running
• Misfire complaints tied to cam signal loss
• Check engine light concerns related to camshaft position input

Installation Notes and Tips

Verify the connector style, terminal count, and vehicle application before installation. Confirm the harness matches the rectangular, female, 2-terminal blade design and compare the old sensor location and mounting style, since no mounting bracket is included. On vehicles with 2-pin notes in the fitment data, match the existing connector configuration before ordering. After installation, clear diagnostic trouble codes and verify the camshaft signal with a scan tool if needed.

Quality Assurance

Prenco 4E-1009 is cataloged as a regular-grade replacement sensor for the listed Ford and Mazda applications. Use the part number and connector details to confirm the correct replacement before service.
