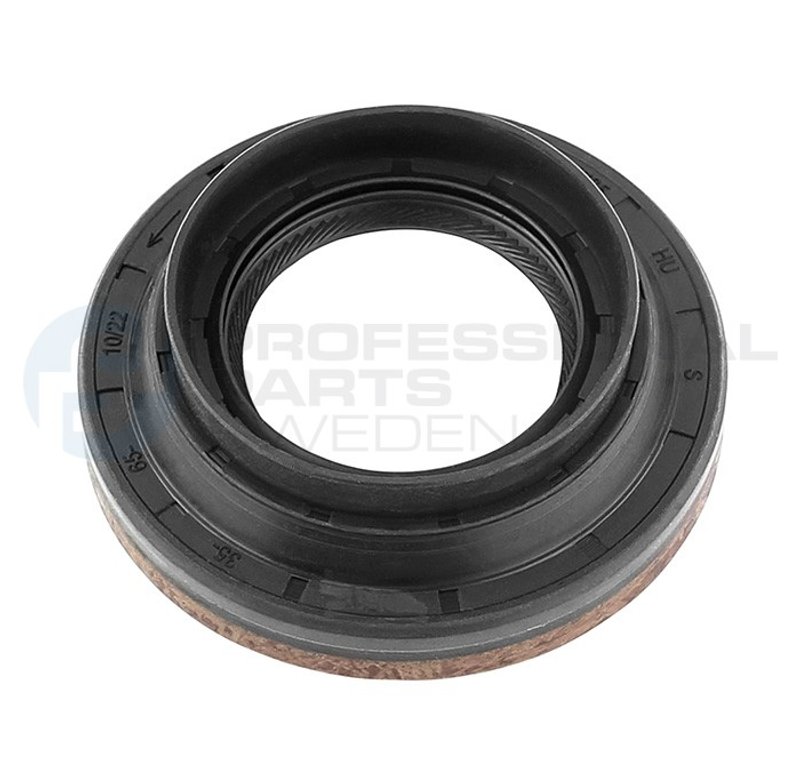

Professional Parts Sweden 41435765 Transfer Case Output Shaft Seal - Rear

Transfer Case Output Shaft Seal for Volvo Rear Applications

Professional Parts Sweden 41435765 is a transfer case output shaft seal built around the listed dimensions for a precise sealing fit: 10 mm height 1, 22 mm height 2, 35 mm inner diameter, and 65 mm outer diameter. It is used on rear transfer case applications for select Volvo S60, S80, XC60, and XC70 models.

Key Features

• Transfer case output shaft seal for rear applications
• Dimensions: 10 mm height 1, 22 mm height 2, 35 mm inner diameter, 65 mm outer diameter
• Direct fitment coverage for select Volvo S60, Volvo S80, Volvo XC60, and Volvo XC70 models
• Professional Parts Sweden part number 41435765
• Cross-reference: 30735765

Detailed Description

This seal is specified for rear transfer case output shaft service on 2007-2011 Volvo S80, 2008 and 2009-2011 Volvo XC70, 2010-2011 Volvo XC60, and 2011 Volvo S60 applications. The dimensional data is important for matching the shaft and housing interface, helping maintain proper sealing at the transfer case output area. If you are replacing a leaking rear transfer case output shaft seal on a Volvo S80, XC60, XC70, or S60, part number 41435765 provides the listed OE-style size profile for the application.

What This Part Helps Address

• Transfer case fluid seepage at the output shaft
• Oil residue around the rear transfer case area
• Seal wear from age, heat, and mileage
• Loss of sealing at the shaft-to-housing interface
• Maintenance replacement during transfer case service

Installation Notes and Tips

Confirm the seal dimensions against the removed part before installation, especially the 35 mm inner diameter and 65 mm outer diameter. Inspect the shaft surface and sealing bore for wear, scoring, or contamination before fitting the new seal. Clean the mating surfaces thoroughly and verify the seal seats evenly to avoid leaks after service. Fits 2011 Volvo S60, rear. Fits 2007-2008 Volvo S80, rear. Fits 2009-2011 Volvo S80, rear. Fits 2008 Volvo XC70, rear. Fits 2009-2011 Volvo XC70, rear. Fits 2010-2011 Volvo XC60, rear.

Quality Assurance

Professional Parts Sweden 41435765 is cataloged with defined dimensional specifications and confirmed vehicle fitment for the listed Volvo rear transfer case applications. Use the part number and measurements to verify application match before installation.
