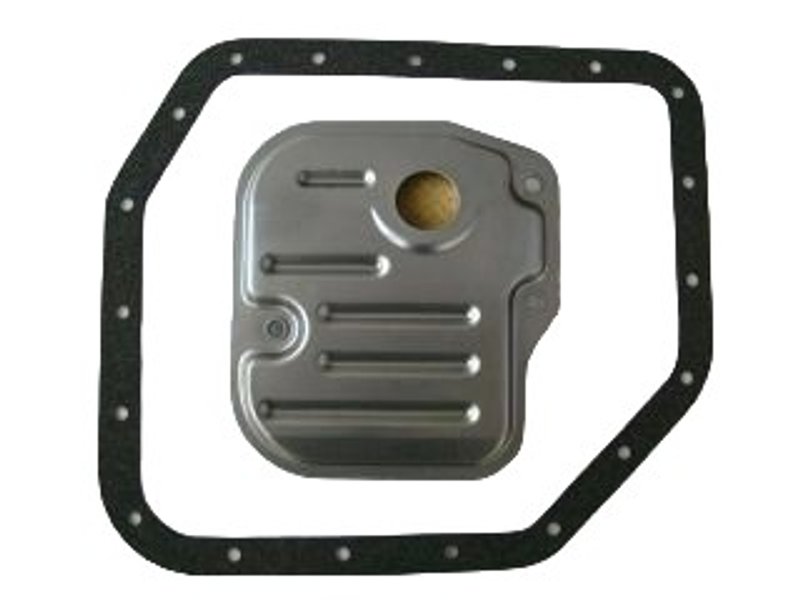

Pronto PTK1294 Transmission Filter Kit
| Brand | Pronto PTK1294 |
|---|---|
| Bolt Hole Quantity | 19 |
| Gasket Material | NBR |
| Fits | Toyota, Scion, and Pontiac · 73 vehicles |
Transmission filter kit. Includes a gasket with NBR material for a reliable seal.
Cross-references ATP B-207, Premium Guard PT1294 and Pronto PTK1294 for the same application. See all 16.
Pronto PTK1294 Transmission Filter Kit
The Pronto PTK1294 transmission filter kit is built for Toyota, Scion, and Pontiac automatic transmissions that use a 19-bolt-hole filter and an NBR gasket. It is a direct-fit service kit for routine transmission maintenance on applications such as Toyota Corolla, Yaris, Matrix, Celica, Echo, Scion xB, and Pontiac Vibe.
Key Features
- Transmission filter kit for automatic transmission service
- 19 bolt hole quantity for the specified applications
- NBR gasket material for sealing performance during service
- Fits a wide range of Toyota, Scion, and Pontiac models
- Part number PTK1294 for easy identification and ordering
Fitment and Application Details
Compatible with 2009-2019 Toyota Corolla, 2006-2019 Toyota Yaris, 2016-2019 Toyota Yaris R, 2017-2018 Toyota Corolla iM, 2008-2014 Scion xD, 2009-2014 Toyota Matrix, 2003-2006 Toyota Matrix, 2009-2010 Pontiac Vibe, 2003-2005 Pontiac Vibe, 2006 Pontiac Vibe, 2004-2006 Scion xA, 2004-2006 Scion xB, 2000-2005 Toyota Celica, and 2000-2005 Toyota Echo. Fits 2006 Pontiac Vibe, automatic; drive type: AWD.
This part cross-references ATP B-207 and Premium Guard PT1294 for the same application.
What This Kit Is Used For
- Replacing a clogged or restricted transmission filter
- Addressing fluid flow issues during transmission service
- Restoring proper sealing at the transmission pan gasket
- Supporting routine maintenance on high-mileage automatic transmissions
- Servicing Toyota Corolla and Toyota Yaris automatic transmission applications
Installation Notes and Tips
Confirm the transmission type and pan pattern before installation, and verify the 19-bolt-hole layout matches the original filter. Clean the mating surfaces thoroughly, inspect the pan and magnet for debris, and replace the gasket during service to maintain a proper seal. Always follow the vehicle service procedure for fluid level checks after reassembly.
Quality Assurance
Pronto transmission service parts are cataloged for direct-fit replacement use on the listed applications. PTK1294 is identified by the PTK1294 part number for accurate fitment matching during transmission maintenance.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2019 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2019 | Toyota | Yaris R | LE | — | — | 1.5L | L4 | N/A | — |
| 2018 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2018 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | N/A | — |
| 2018 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2018 | Toyota | Yaris R | LE | — | — | 1.5L | L4 | N/A | — |
| 2017 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2017 | Toyota | Corolla iM | — | — | — | 1.8L | L4 | N/A | — |
| 2017 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2017 | Toyota | Yaris R | LE | — | — | 1.5L | L4 | N/A | — |
| 2016 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2016 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2016 | Toyota | Yaris R | Base | — | — | 1.5L | L4 | N/A | — |
| 2015 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2015 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2014 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2014 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2014 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2014 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2013 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2013 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2013 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2013 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2012 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2011 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Corolla | — | — | — | 2.4L | L4 | N/A | — |
| 2011 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | N/A | — |
| 2010 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | N/A | — |
| 2009 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Corolla | — | — | — | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Matrix | — | — | — | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2008 | Scion | xD | — | — | — | 1.8L | L4 | N/A | — |
| 2008 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2007 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2006 | Pontiac | Vibe | — | AWD | Automatic | 1.8L | L4 | N/A | Automatic; Drive Type: AWD |
| 2006 | Scion | xA | — | — | — | 1.5L | L4 | N/A | — |
| 2006 | Scion | xB | — | — | — | 1.5L | L4 | N/A | — |
| 2006 | Toyota | Matrix | — | AWD | — | 1.8L | L4 | N/A | — |
| 2006 | Toyota | Yaris | — | — | — | 1.5L | L4 | N/A | — |
| 2005 | Pontiac | Vibe | — | AWD | Automatic | 1.8L | L4 | N/A | — |
| 2005 | Scion | xA | — | — | — | 1.5L | L4 | N/A | — |
| 2005 | Scion | xB | — | — | — | 1.5L | L4 | N/A | — |
| 2005 | Toyota | Celica | GT | — | — | 1.8L | L4 | N/A | — |
| 2005 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
| 2005 | Toyota | Matrix | — | AWD | — | 1.8L | L4 | N/A | — |
| 2004 | Pontiac | Vibe | — | AWD | Automatic | 1.8L | L4 | N/A | — |
| 2004 | Scion | xA | — | — | — | 1.5L | L4 | N/A | — |
| 2004 | Scion | xB | — | — | — | 1.5L | L4 | N/A | — |
| 2004 | Toyota | Celica | — | — | — | 1.8L | L4 | N/A | — |
| 2004 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
| 2004 | Toyota | Matrix | — | AWD | — | 1.8L | L4 | N/A | — |
| 2003 | Pontiac | Vibe | — | AWD | Automatic | 1.8L | L4 | N/A | — |
| 2003 | Toyota | Celica | — | — | — | 1.8L | L4 | N/A | — |
| 2003 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
| 2003 | Toyota | Matrix | — | AWD | — | 1.8L | L4 | N/A | — |
| 2002 | Toyota | Celica | — | — | — | 1.8L | L4 | N/A | — |
| 2002 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
| 2001 | Toyota | Celica | GT | — | — | 1.8L | L4 | N/A | — |
| 2001 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
| 2000 | Toyota | Celica | GT | — | — | 1.8L | L4 | N/A | — |
| 2000 | Toyota | Echo | — | — | — | 1.5L | L4 | N/A | — |
