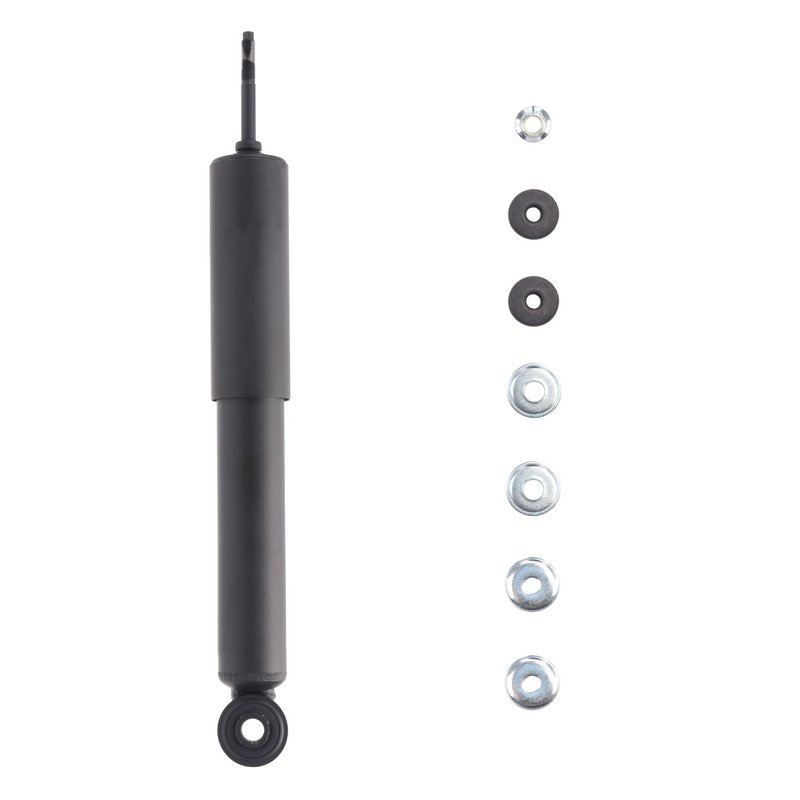

PRT Performance Ride 193819 Suspension Shock Absorber - Front
| Brand | PRT Performance Ride 193819 |
|---|---|
| Position | Front |
| Compressed Length | 11.06 |
| Travel Length | 4.17 |
| Coil Over Springs Included | No |
| Dust Shield | Yes |
| Extended Length | 15.24 |
| Shock Stroke | 4.17 |
| Adjustable | No |
| Shock Absorber Rod End Measuring Point | Stage of the bolt |
| Shock Absorber Body End Measuring Point | Center of the loop |
| Lower Mount Type | Loop |
| Upper Mount Type | Bolt |
| Boot Included | No |
| Gas Charged | Yes |
| Body Diameter | 1.77 |
| Dust Shield Material | Metal |
| Product line | PRT Shock Absorber |
| Fits | Hummer · 5 vehicles |
Gas charged. Delivers consistent damping performance.
Dust shield included. Helps protect the shock from debris.
Bolt-and-loop mounts. Simplifies installation with a direct-fit design.
Front Shock Absorber for Hummer H2
PRT Performance Ride 193819 is a front suspension shock absorber for the 2003-2007 Hummer H2. It is a gas-charged replacement shock built with a metal dust shield and OE-style mounting points for direct front suspension service.
Key Features
- Fits 2003-2007 Hummer H2, front
- PRT Shock Absorber line from PRT Performance Ride
- Gas charged construction for consistent damping response
- Compressed length: 11.06 in; extended length: 15.24 in
- Shock stroke / travel length: 4.17 in
- Upper mount type: bolt; lower mount type: loop
- Metal dust shield included; boot not included
- Non-adjustable design
- Body diameter: 1.77 in
Product Details
PRT Performance Ride 193819 is built for front suspension use on the Hummer H2 and follows the PRT Shock Absorber product line. The shock uses a bolt-style upper mount and loop-style lower mount, with measuring points defined from the stage of the bolt to the center of the loop for accurate replacement matching. Its gas-charged design and 4.17-inch stroke support controlled suspension movement, while the metal dust shield helps protect the shaft area from road debris.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Addresses
- Excessive front-end bounce over bumps
- Reduced ride control on rough pavement
- Front suspension noise from worn shock components
- Uneven damping response during braking or cornering
- Loss of stability from tired original front shocks
Installation Notes and Tips
Verify front mounting style, compressed length, and extended length before installation on the Hummer H2. Inspect the upper bolt mount and lower loop mount points for wear, and confirm the dust shield is positioned correctly during assembly. Because this shock is non-adjustable and does not include a coil spring or boot, transfer only the components required by the vehicle application.
Quality Assurance
PRT Performance Ride suspension components are built for direct-fit replacement use in the specified application. PRT Shock Absorber 193819 is listed for the 2003-2007 Hummer H2 front position and is specified with OE-style mounting geometry for fitment verification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Hummer | H2 | 6.0L | V8 | Front | PRT Shock Absorber |
| 2006 | Hummer | H2 | 6.0L | V8 | Front | PRT Shock Absorber |
| 2005 | Hummer | H2 | 6.0L | V8 | Front | PRT Shock Absorber |
| 2004 | Hummer | H2 | 6.0L | V8 | Front | PRT Shock Absorber |
| 2003 | Hummer | H2 | 6.0L | V8 | Front | PRT Shock Absorber |
