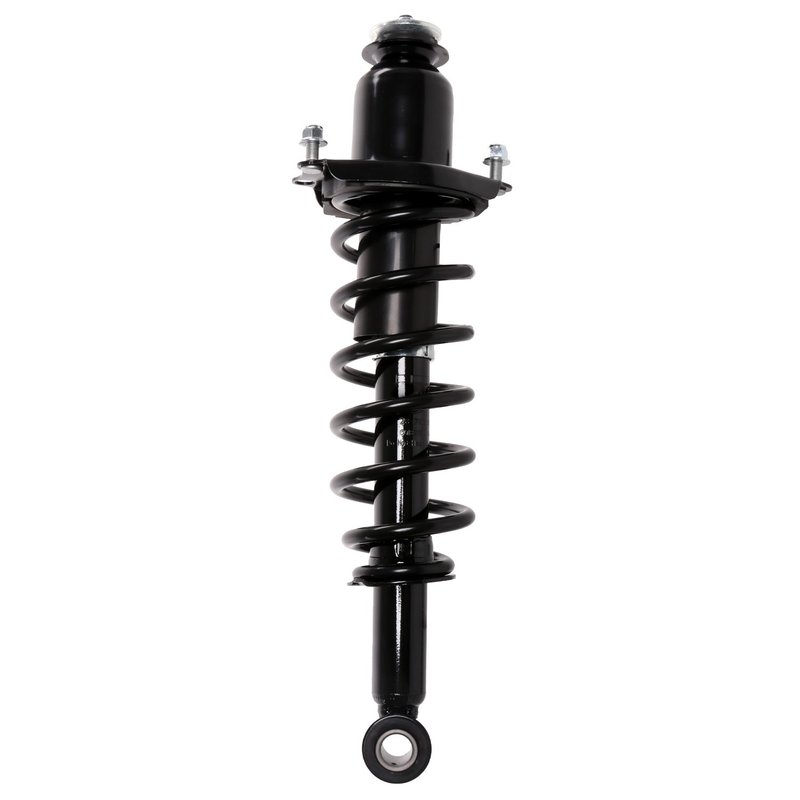

PRT Performance Ride 710017L Suspension Strut and Coil Spring Assembly - Front Left or Rear Left

PRT Suspension Strut and Coil Spring Assembly for Prius

The PRT Performance Ride 710017L is a suspension strut and coil spring assembly built for specific Toyota Prius front left and rear left applications. It combines a regular-grade strut housing with a single coil spring, dust shield, and OE-style mounting layout for direct replacement service on listed vehicles.

PRT Suspension Strut and Coil Spring Assembly parts are focused on restoring original suspension geometry and ride control for everyday driving. This assembly is listed for 2007-2009 Toyota Prius front left models with 16" wheels, as well as 2004-2006 Toyota Prius rear left applications.

Key Features

• Part number 710017L for identified Toyota Prius applications
• Fits 2007-2009 Toyota Prius, front left, with 16" wheels
• Fits 2007-2009 Toyota Prius, front left
• Fits 2004-2006 Toyota Prius, rear left
• Compressed length: 12.17 in.; relaxed length: 18.78 in.; travel length: 6.61 in.
• Single coil spring construction with TDCrSi spring material
• Q235B housing material with loop lower mount and bolt upper mount
• Dust shield included
• Regular grade type with non-adjustable damping and rebound

Detailed Description

The PRT Performance Ride 710017L suspension strut and coil spring assembly is engineered as a direct-fit replacement for select Toyota Prius models. Its fixed damping design, loop lower mount, and bolt upper mount support straightforward suspension service while maintaining the original mounting style used on the listed front left and rear left positions. The PRT Suspension Strut and Coil Spring Assembly line is aimed at replacement applications where consistent ride height and controlled suspension movement are required.

Built with a Q235B housing and TDCrSi spring material, this assembly includes a dust shield to help protect the strut shaft area from road debris. The part number 710017L is listed for 2007-2009 Toyota Prius front left vehicles with 16" wheels, plus 2007-2009 Toyota Prius front left and 2004-2006 Toyota Prius rear left applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front-left or rear-left suspension wear on listed Toyota Prius models
• Noisy or unstable ride caused by a worn strut assembly
• Loss of ride control from a fatigued coil spring and strut unit
• Uneven suspension response at the specified wheel position
• Replacement needs after inspection reveals leakage, sagging, or damaged mounting points

Installation Notes and Tips

Verify the vehicle year, position, and wheel-size note before ordering. This assembly uses a bolt upper mount and loop lower mount, and mounting hardware is not included. Confirm that the replacement matches the original Prius suspension layout for the listed front left or rear left application before installation.

Quality Assurance

PRT Performance Ride suspension components are built for replacement use on the specified Toyota Prius applications and follow the listed dimensional and material specifications for fitment-focused service.
