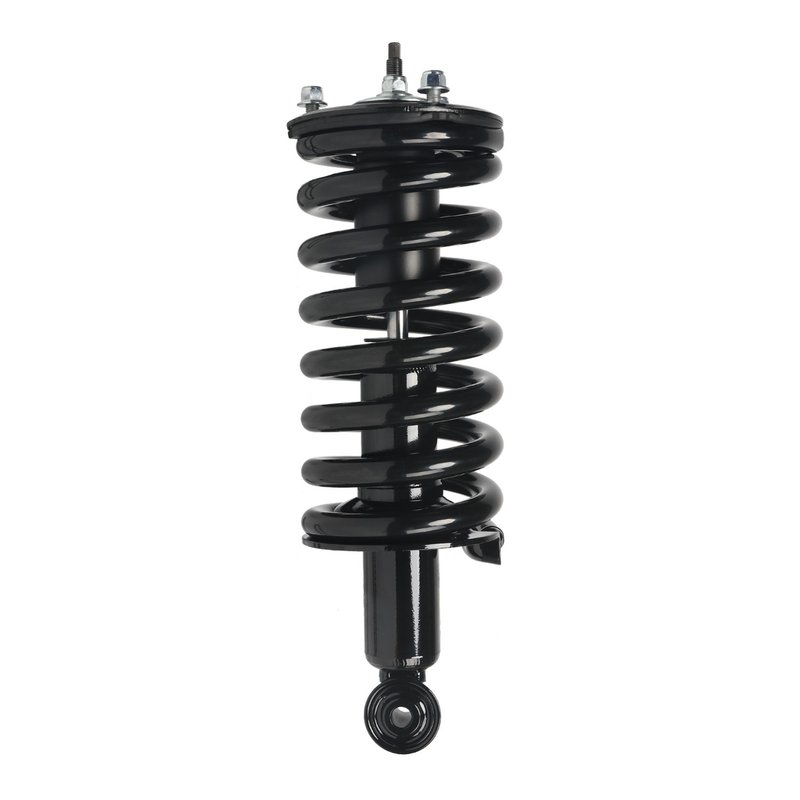

PRT Performance Ride 715024 Suspension Strut and Coil Spring Assembly - Front

Front Suspension Strut Assembly for Armada and QX56

PRT Performance Ride 715024 is a front suspension strut and coil spring assembly for select Nissan Armada and INFINITI QX56 applications. It combines the strut body and coil spring into one service part for direct front-end suspension replacement on the listed vehicles.

Built under the PRT Suspension Strut and Coil Spring Assembly line, this unit is configured with a bolt upper mount, loop lower mount, a dust shield, and a regular-grade housing. The spring uses 60Si2MnA material, while the housing is made from Q235B steel for the specified application.

Key Features

• Part number: 715024
• Front suspension strut and coil spring assembly
• Upper mount type: bolt
• Lower mount type: loop
• Dust shield included
• Housing material: Q235B
• Spring material: 60Si2MnA
• Compressed length: 10.47 in.
• Travel length: 4.45 in.
• Relaxed length: 14.92 in.
• Adjustable damping: no
• Adjustable rebound: no
• Progressive spring rate: no

Detailed Description

PRT Performance Ride 715024 is a front strut assembly for 2008-2010 Nissan Armada, front and 2014-2015 Nissan Armada, front, as well as 2008-2010 INFINITI QX56, front. It is a direct-fit suspension service part for vehicles that use a bolt upper mount and loop lower mount configuration. The PRT Suspension Strut and Coil Spring Assembly line focuses on complete front suspension replacement components, and this unit follows that format with the spring and strut integrated for the listed fitments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Front-end bounce or excessive road movement
• Uneven ride height at the front suspension
• Noisy or worn strut assembly during driving
• Reduced stability over bumps and rough pavement
• Need for replacement on Nissan Armada or INFINITI QX56 front suspension service

Installation Notes and Tips

Verify the vehicle’s front suspension mount style before installation and compare the original strut dimensions to the listed compressed, travel, and relaxed lengths. Because mounting hardware is not included, reuse or source the required hardware separately as needed. After installation, perform a front-end alignment and confirm proper seating of the upper and lower mounts.

Quality Assurance

PRT Performance Ride supplies this suspension strut and coil spring assembly with a regular-grade housing and application-specific dimensions for the listed Nissan Armada and INFINITI QX56 front fitments. Confirm part number 715024 against the vehicle’s suspension configuration before ordering.
