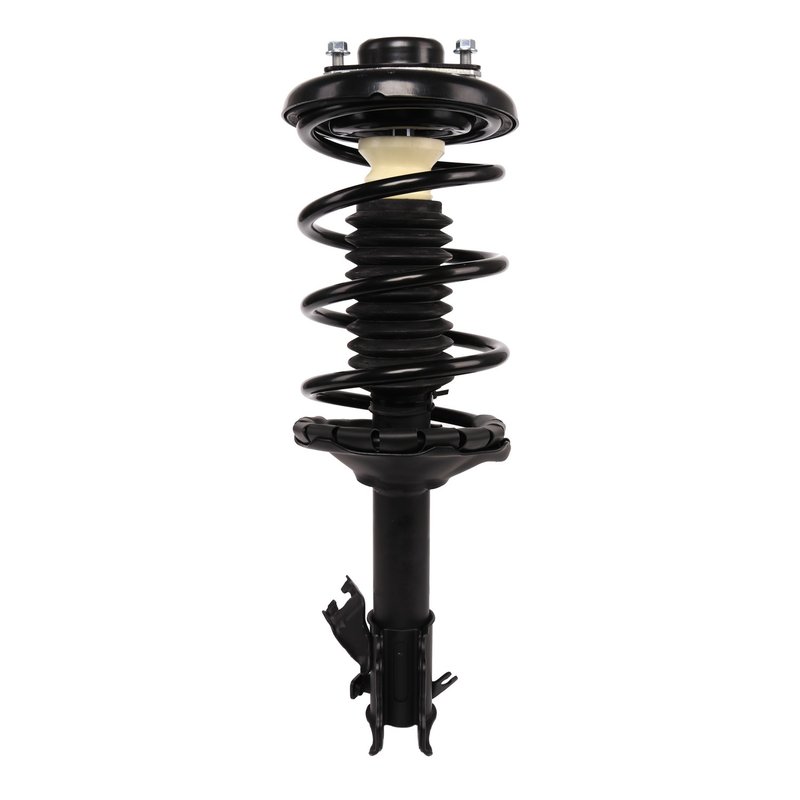

PRT Performance Ride 813104 Suspension Strut and Coil Spring Assembly - Front Left

Overview of PRT Suspension Strut and Coil Spring Assembly

The PRT Performance Ride Suspension Strut and Coil Spring Assembly 813104 is engineered for Nissan Maxima models, providing reliable suspension performance. Designed with durable materials and precise dimensions, this assembly supports vehicle stability and ride comfort.

• Compatible with Nissan Maxima
• Part Number: 813104
• Compressed Length: 14.21 inches
• Travel Length: 7.72 inches
• Spring Material: Tdsicr
• Housing Material: Q235b steel
• Upper Mount Type: Bolt
• Lower Mount Type: Bracket hole
• Includes Dust Shield
• Mounting Hardware Not Included

Details on the PRT Suspension Strut and Coil Spring Assembly Line

The PRT Suspension Strut and Coil Spring Assembly product line focuses on integrating struts and coil springs into a single unit for streamlined installation and consistent suspension performance. This assembly is designed with a regular grade type and features a single spring coil, making it suitable for standard driving conditions on Nissan Maxima vehicles. The use of Q235b steel for the housing ensures structural integrity, while the Tdsicr spring material supports reliable spring action.

Technical Description and Features

This suspension strut and coil spring assembly offers a compressed length of 14.21 inches and a relaxed length of 21.93 inches, allowing for a travel length of 7.72 inches. The upper mount uses a bolt type connection, and the lower mount features a bracket hole design, facilitating secure attachment to the vehicle chassis. The assembly includes a dust shield to protect internal components from debris and extend service life. Note that mounting hardware is not included, so existing or separately purchased hardware will be required for installation. This assembly does not have adjustable damping or rebound features and does not use a progressive spring rate, aligning it with regular grade suspension needs.

Common Applications and Problem Solving

• Replacement for worn or damaged suspension struts on Nissan Maxima
• Restores proper ride height and suspension travel
• Addresses issues with uneven tire wear due to suspension faults
• Improves vehicle stability and handling compromised by faulty struts
• Eliminates noise and vibration caused by failing coil springs or struts

Installation Notes and Tips

Installation requires removal of the old strut and coil spring assembly and mounting the new unit using the vehicle’s existing hardware or separately sourced mounting components. Ensure the upper bolt mount and lower bracket hole align correctly with the Nissan Maxima chassis points. Use appropriate tools to compress the spring safely if needed during removal. Verify the dust shield is properly positioned to protect the assembly. Professional installation is recommended to ensure safety and correct suspension geometry.

Quality Assurance and Warranty

The PRT Performance Ride Suspension Strut and Coil Spring Assembly 813104 is manufactured with quality materials including Q235b steel housing and Tdsicr spring material to meet regular grade suspension standards. While specific warranty details are not provided, PRT products typically adhere to industry quality controls to ensure durability and performance. Confirm warranty terms with the product supplier or manufacturer prior to installation.
