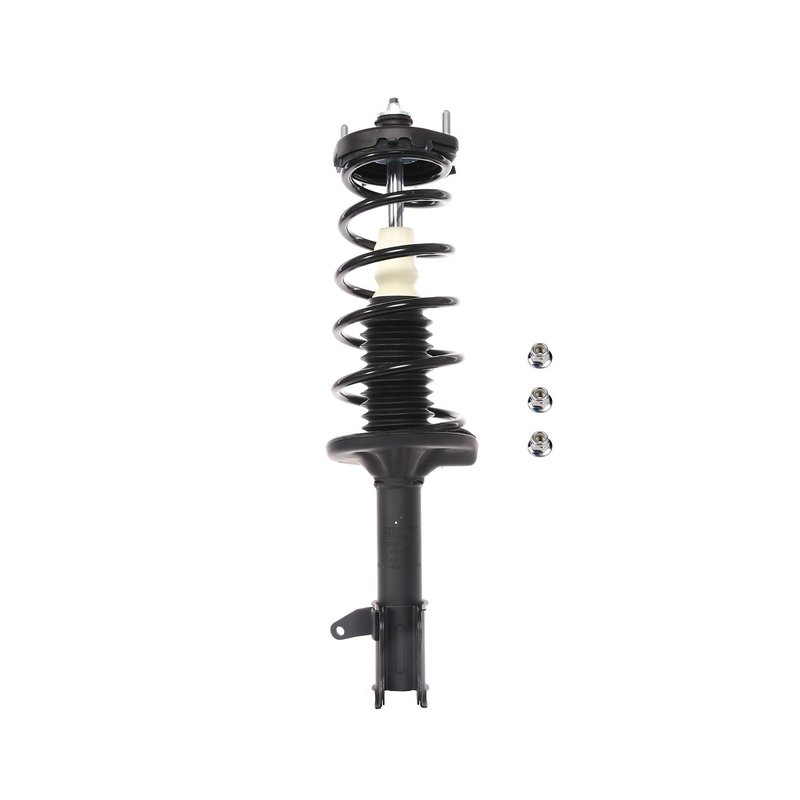

PRT Performance Ride 815927 Suspension Strut and Coil Spring Assembly - Rear Right

Overview of PRT Suspension Strut and Coil Spring Assembly

The PRT Performance Ride Suspension Strut and Coil Spring Assembly 815927 is engineered for Mazda Protege models, providing reliable suspension support. Designed to maintain vehicle stability and ride comfort, this assembly integrates both strut and coil spring components in one unit.

• Compatible with Mazda Protege vehicles
• Compressed length: 16.30 inches
• Travel length: 7.76 inches
• Spring material: Tdcrsi
• Housing material: Q235b steel
• Lower mount type: Bracket hole
• Upper mount type: Bolt
• Includes dust shield for protection
• Mounting hardware not included
• Regular grade type, non-adjustable damping and rebound
• Single spring coil design

About the PRT Suspension Strut and Coil Spring Assembly Line

The PRT Suspension Strut and Coil Spring Assembly product line focuses on delivering integrated suspension components that combine struts and coil springs for streamlined installation and consistent performance. This line is designed to meet standard suspension requirements without adjustable damping or progressive spring rates, making it suitable for regular driving conditions on compatible vehicles like the Mazda Protege.

Product Details and Specifications

This suspension strut and coil spring assembly features a compressed length of 16.30 inches and a relaxed length of 20.24 inches, allowing for a travel length of 7.76 inches. The spring is made from Tdcrsi material, known for its durability and strength, while the housing is constructed from Q235b steel, providing structural integrity. The assembly mounts with a bracket hole on the lower end and a bolt on the upper end, ensuring secure attachment to the vehicle chassis. A dust shield is included to protect internal components from debris and extend service life. Note that mounting hardware is not included with this part.

Common Applications and Problem Solving

• Replacement for worn or damaged suspension struts on Mazda Protege
• Restores proper ride height and suspension travel
• Improves vehicle stability and handling consistency
• Addresses noise or vibration issues related to faulty struts or springs
• Supports safe braking and cornering performance

Installation Notes and Tips

Installation requires removal of the existing strut and coil spring assembly. Since mounting hardware is not included, ensure you have the necessary bolts and brackets compatible with the Mazda Protege. Proper torque specifications should be followed for both upper and lower mounts. It is recommended to inspect related suspension components during installation and replace any worn parts to maintain overall system integrity.

Quality Assurance and Warranty

The PRT Performance Ride Suspension Strut and Coil Spring Assembly 815927 is manufactured with quality materials such as Tdcrsi spring steel and Q235b housing steel to meet regular grade suspension standards. While specific warranty details are not provided, PRT products typically adhere to industry quality controls to ensure durability and performance on compatible vehicles like the Mazda Protege.
