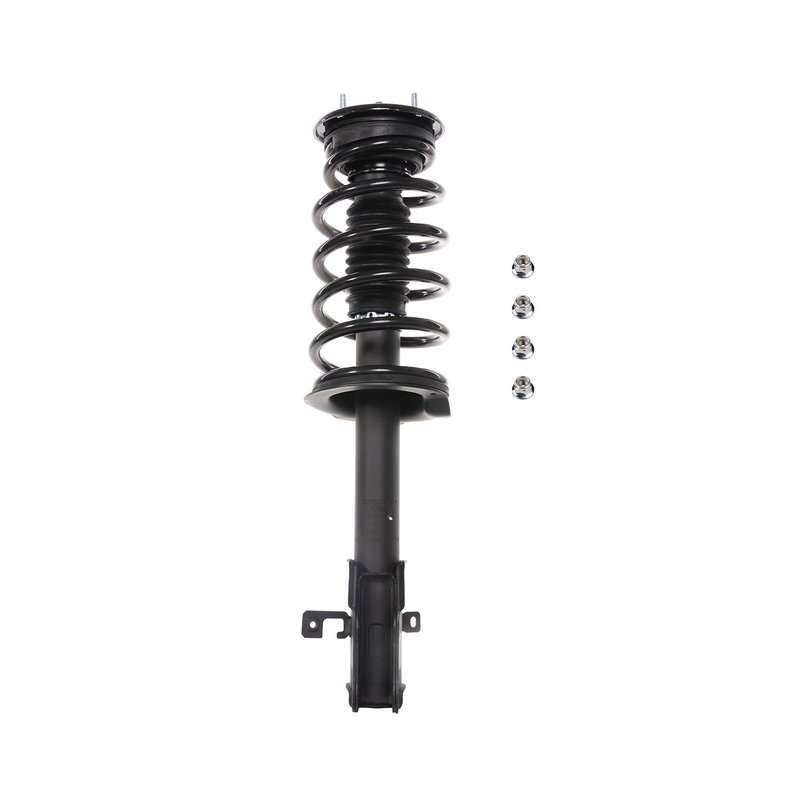

PRT Performance Ride 817154 Suspension Strut and Coil Spring Assembly - Front Left

Overview of PRT Suspension Strut and Coil Spring Assembly

The PRT Performance Ride Suspension Strut and Coil Spring Assembly (part number 817154) is engineered for Ford Edge and Lincoln MKX models. Designed to restore your vehicle's suspension performance, this assembly combines a durable strut with a high-quality coil spring to maintain ride comfort and handling stability.

• Compatible with Ford Edge and Lincoln MKX
• Compressed length: 17.01 inches
• Travel length: 7.09 inches
• Spring material: 55crsi steel
• Housing material: Q235b steel
• Upper mount type: Bolt
• Lower mount type: Bracket hole
• Includes dust shield for protection
• Mounting hardware not included
• Regular grade type, non-adjustable damping and rebound
• Single coil spring with relaxed length of 24.09 inches

About the PRT Suspension Strut and Coil Spring Assembly Line

The PRT Suspension Strut and Coil Spring Assembly product line focuses on providing integrated suspension components that combine struts and coil springs into a single unit. This design simplifies installation and ensures compatibility with specific vehicle models such as the Ford Edge and Lincoln MKX. The assemblies are built with quality materials like 55crsi spring steel and Q235b housing steel to meet regular grade suspension requirements.

Detailed Product Description

This suspension strut and coil spring assembly (part number 817154) features a compressed length of 17.01 inches and a travel length of 7.09 inches, allowing for effective suspension movement and shock absorption. The spring is made from 55crsi steel, known for its strength and durability, while the housing is constructed from Q235b steel, providing structural integrity. The assembly includes a dust shield to protect internal components from debris and extend service life. The upper mount uses a bolt type connection, and the lower mount features a bracket hole design, ensuring secure attachment to the vehicle chassis. This assembly does not include mounting hardware and does not offer adjustable damping or rebound settings, making it suitable for standard suspension setups.

Common Applications and Problem Solving

• Restores suspension performance on Ford Edge and Lincoln MKX models
• Replaces worn or damaged struts and coil springs
• Addresses issues with uneven ride height or sagging suspension
• Improves handling stability and ride comfort
• Eliminates noise and vibration caused by faulty suspension components

Installation Notes and Tips

Installation of the PRT Performance Ride Suspension Strut and Coil Spring Assembly (part number 817154) requires removal of the old strut and spring assembly. Since mounting hardware is not included, ensure you have the necessary bolts and brackets compatible with your Ford Edge or Lincoln MKX. Proper torque specifications should be followed for both upper and lower mounts to maintain safety and performance. It is recommended to have a professional alignment performed after installation to optimize handling and tire wear.

Quality Assurance and Warranty

The PRT Suspension Strut and Coil Spring Assembly is manufactured using high-grade materials such as 55crsi spring steel and Q235b housing steel to meet regular suspension standards. The inclusion of a dust shield helps protect the assembly from environmental damage. While specific warranty details are not provided, PRT Performance Ride products typically adhere to industry quality controls to ensure reliable performance and durability.
