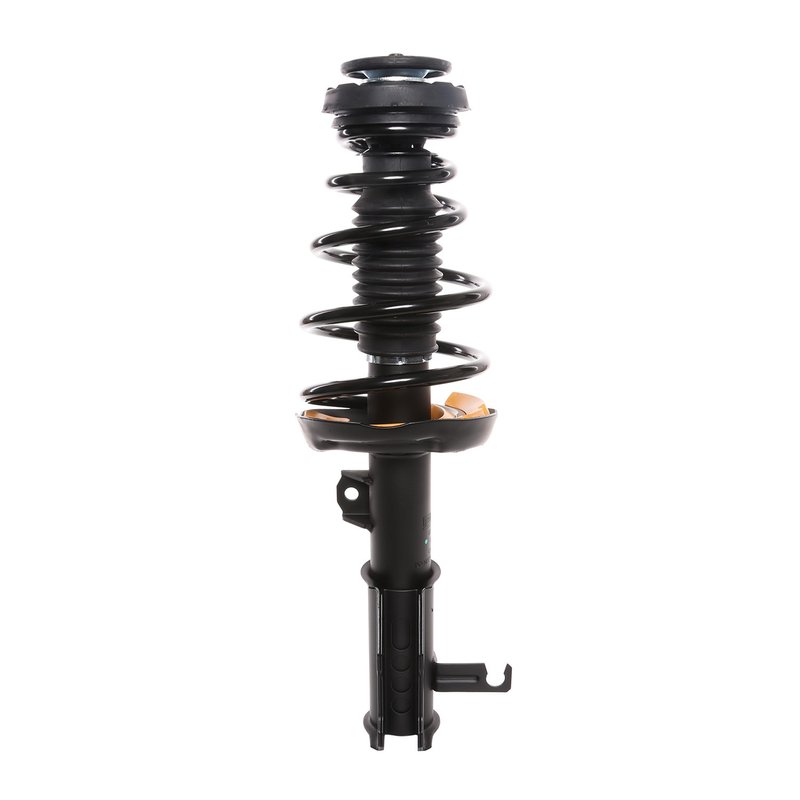

PRT Performance Ride 818197 Suspension Strut and Coil Spring Assembly - Front Right

Overview of PRT Suspension Strut and Coil Spring Assembly

The PRT Performance Ride Suspension Strut and Coil Spring Assembly (part number 818197) is designed specifically for Buick LaCrosse models. This assembly combines a durable suspension strut with a coil spring to restore your vehicle's ride quality and handling performance.

• Compressed length: 13.94 inches
• Travel length: 5.95 inches
• Spring material: Tdcrsi
• Housing material: Q235b steel
• Lower mount type: Bracket hole
• Upper mount type: Bolt
• Dust shield included
• Grade type: Regular
• Single spring coil design
• Non-adjustable damping and rebound
• Progressive spring rate: No

Details on the PRT Suspension Strut and Coil Spring Assembly Line

The PRT Suspension Strut and Coil Spring Assembly product line focuses on providing reliable suspension components engineered for specific vehicle applications. This line integrates both the strut and coil spring into a single assembly, simplifying replacement and ensuring compatibility with the original suspension geometry. The assemblies use quality materials such as Q235b steel for the housing and Tdcrsi for the spring, offering consistent performance for regular driving conditions.

Technical Description and Features

This suspension strut and coil spring assembly features a compressed length of 13.94 inches and a travel length of 5.95 inches, designed to match the suspension travel requirements of the Buick LaCrosse. The spring is made from Tdcrsi material, known for its strength and durability, while the housing is constructed from Q235b steel, providing structural integrity. The assembly includes a dust shield to protect internal components from debris and extend service life. Mounting is facilitated by a bracket hole on the lower mount and a bolt-type upper mount, ensuring secure installation. This assembly does not include adjustable damping or rebound features and uses a single coil spring without a progressive spring rate, suitable for standard suspension setups.

Common Applications and Problem Solving

• Restores proper suspension height and ride comfort on Buick LaCrosse vehicles
• Replaces worn or damaged struts and coil springs to improve handling stability
• Addresses issues with excessive suspension noise or vibration
• Corrects uneven tire wear caused by faulty suspension components
• Improves vehicle control and braking response by maintaining suspension geometry

Installation Notes and Tips

Installation of the PRT Suspension Strut and Coil Spring Assembly (part number 818197) requires proper tools and mechanical knowledge. Note that mounting hardware is not included, so original hardware should be inspected and replaced if necessary. Ensure the vehicle is securely lifted and supported before removing the old assembly. Align the bracket hole lower mount and bolt-type upper mount carefully to avoid damage. Verify the dust shield is properly positioned to protect the assembly. After installation, a wheel alignment is recommended to maintain optimal handling and tire wear.

Quality Assurance and Warranty

The PRT Performance Ride Suspension Strut and Coil Spring Assembly is manufactured using quality materials and tested to meet regular grade suspension standards. While specific warranty details are not provided, PRT products typically adhere to industry quality controls to ensure durability and performance. For additional warranty information, consult the product documentation or manufacturer.
