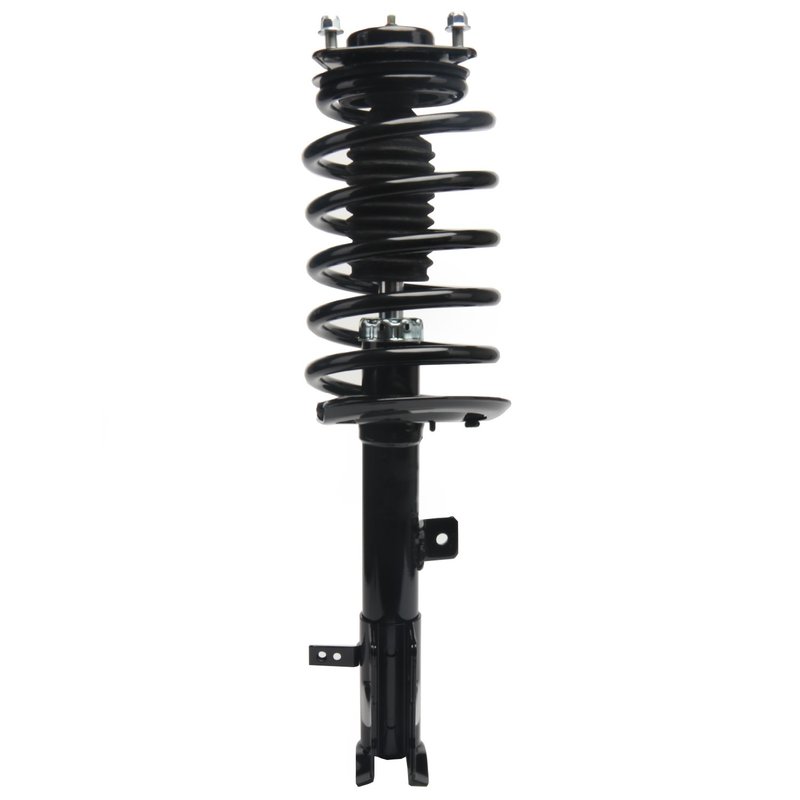

PRT Performance Ride 818342 Suspension Strut and Coil Spring Assembly - Front Left

Front Left Strut for Jeep Patriot

PRT Performance Ride 818342 is a suspension strut and coil spring assembly for the front left position on select Jeep Patriot models. It combines the strut body and coil spring into one service assembly for direct replacement of the front suspension unit.

Key Features

• Fits 2012-2017 Jeep Patriot, front left
• PRT Suspension Strut and Coil Spring Assembly line
• Compressed length: 15.32 in.; travel length: 7.95 in.; relaxed length: 23.27 in.
• Spring material: 55CrSi coil spring with one coil spring configuration
• Housing material: Q235B steel construction
• Upper mount type: bolt; lower mount type: bracket hole
• Dust shield included
• Regular grade type with non-adjustable damping and rebound

Product Details

PRT Performance Ride part number 818342 is built for the front left suspension position on 2012-2017 Jeep Patriot models. The PRT Suspension Strut and Coil Spring Assembly line focuses on a complete strut-and-spring service unit, using a 55CrSi spring and Q235B housing to match the demands of everyday suspension service. With fixed damping and rebound settings, this assembly is set up as a straightforward OE-style replacement for the front suspension corner.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Restores front left ride height after a worn or sagging strut assembly
• Addresses clunking, knocking, or noise from the front suspension
• Replaces a leaking or weak strut on a Jeep Patriot
• Helps correct uneven front-end stance and handling response
• Supports service replacement when the original coil spring assembly is fatigued

Installation Notes

Fits 2012-2017 Jeep Patriot, front left. Verify the upper bolt mount and lower bracket-hole mount before installation, and compare compressed, relaxed, and travel lengths to the removed unit. Because mounting hardware is not listed as included, reuse or source the required fasteners separately as needed. A professional spring compressor and suspension alignment are recommended after installation.

Quality Assurance

PRT Performance Ride 818342 is a regular-grade suspension assembly built with a steel housing, 55CrSi spring material, and an included dust shield for service replacement on the specified Jeep Patriot applications.
