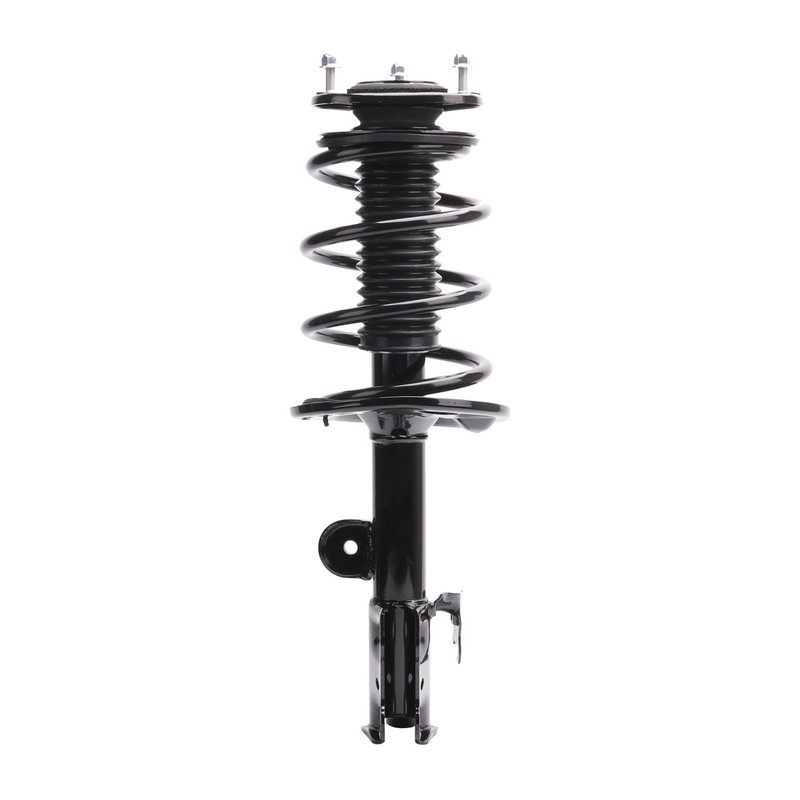

PRT Performance Ride 920323 Suspension Strut and Coil Spring Assembly - Front Left
| Brand | PRT Performance Ride 920323 |
|---|---|
| Position | Front Left |
| Compressed Length | 14.8 |
| Travel Length | 6.61 |
| Spring Material | 55crsi |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Housing Material | Q235b |
| Relaxed Length | 22.99 |
| Lower Mount Type | Bracket hole |
| Upper Mount Type | Bolt |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Progressive Spring Rate | No |
| Dust Shield Included | Yes |
| Spring Coil Quantity | 1 |
| Product line | PRT Suspension Strut and Coil Spring Assembly |
| Fits | Toyota · 3 vehicles |
Direct replacement. Suspension strut and coil spring assembly for application-specific service.
Built with steel materials. Q235B housing and 55CrSi spring construction for the listed assembly.
Dust shield included. Adds protection around the strut assembly during everyday driving.
Compatible With Toyota RAV4 Front Left
This PRT Performance Ride suspension strut and coil spring assembly is built for direct replacement service on the front left side of the Toyota RAV4. Part number 920323 is specified for 2006-2008 applications and combines the strut and coil spring into one service assembly.
- Compatible with 2006-2008 Toyota RAV4, front left.
- Suspension strut and coil spring assembly for direct replacement service.
- Dust shield included for added protection around the strut assembly.
- Upper bolt mount and lower bracket-hole mount for application-specific fitment.
- Regular-grade construction with Q235B housing and 55CrSi spring material.
Product Details
PRT Performance Ride 920323 is a suspension strut and coil spring assembly engineered around the listed fitment for Toyota RAV4 models from 2006 through 2008. The assembly uses a Q235B housing, a 55CrSi spring, and a dust shield, with no adjustable damping or rebound. Its compressed, relaxed, and travel lengths are specified to match the application requirements for this front left suspension position. Part number 920323 is a direct-reference option for buyers replacing a worn strut assembly on the Toyota RAV4.
Common Replacement Reasons
- Restores ride control when the original strut assembly is worn.
- Addresses noise or reduced suspension response from aging components.
- Replaces a damaged dust shield or compromised strut housing.
- Helps correct uneven suspension performance on the front left corner.
Installation Notes
Verify the vehicle’s year, make, model, and front left position before installation. Confirm upper bolt and lower bracket-hole mounting points against the removed part, and compare the listed compressed length, travel length, and relaxed length to the original assembly. Because mounting hardware is not listed as included, reuse or source hardware as needed based on the vehicle and service procedure.
Quality Assurance
PRT Performance Ride identifies this as a regular-grade suspension assembly with application-specific dimensions and materials for the listed Toyota RAV4 fitment. Part number 920323 should be matched to the vehicle configuration shown in the fitment data before installation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Toyota | RAV4 | Base | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
| 2007 | Toyota | RAV4 | Base | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
| 2006 | Toyota | RAV4 | Base | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
