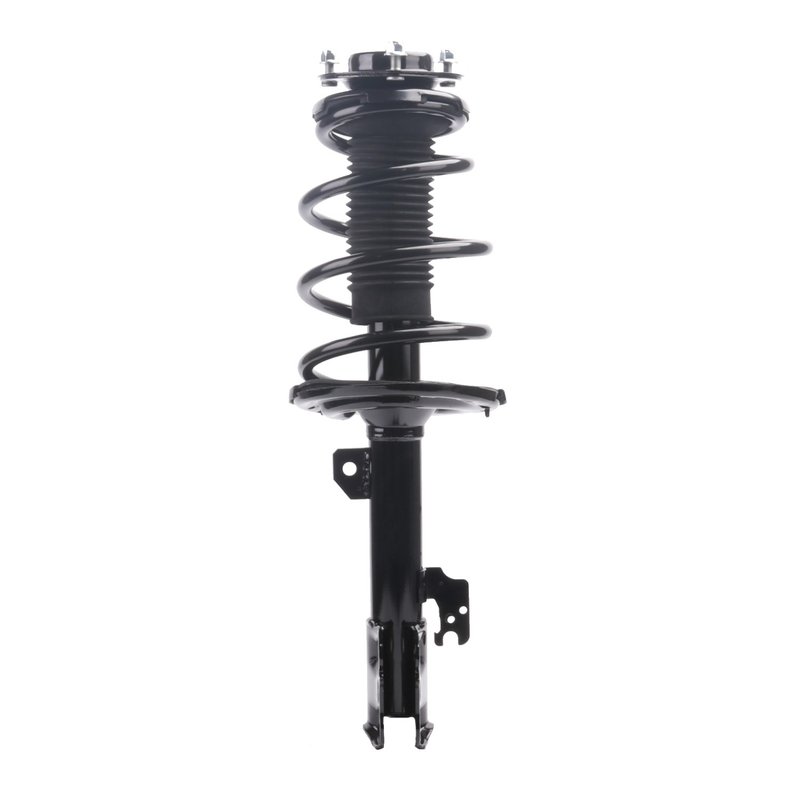

PRT Performance Ride 920406 Suspension Strut and Coil Spring Assembly - Front Right

Front Right Strut and Spring Assembly

PRT Performance Ride 920406 is a suspension strut and coil spring assembly for the front right position on select Toyota Sienna models. It combines the strut body and coil spring into one direct-fit suspension unit for 2015-2020 Toyota Sienna vehicles with 7 passenger seating.

Built for the front right corner, this PRT Suspension Strut and Coil Spring Assembly is a practical replacement for worn ride-height and damping components on the Toyota Sienna. The part number 920406 is listed for the front right side and follows the original mounting layout with a bolt upper mount and bracket lower mount.

Key Features

• Fits 2015-2020 Toyota Sienna, front right
• PRT Performance Ride part number 920406
• Suspension strut and coil spring assembly for direct replacement use
• Upper mount type: bolt
• Lower mount type: bracket
• Dust shield included
• Housing material: Q235B steel
• Spring material: 55Crsi
• Relaxed length: 23.5
• Compressed length: 16.1
• Travel length: 7.4

Product Details

The PRT Performance Ride suspension strut and coil spring assembly is engineered for the Toyota Sienna front right suspension position. It uses a regular-grade housing with a single coil spring and fixed damping characteristics, with no adjustable damping, no adjustable rebound, and no progressive spring rate. The included dust shield adds protection for the strut assembly in everyday driving conditions. This part number 920406 is a fitment-specific replacement for 2015-2020 Toyota Sienna models with 7 passenger seating.

PRT Suspension Strut and Coil Spring Assembly products are built as complete suspension service components for vehicles that need a matched strut-and-spring replacement at one corner. For shoppers searching for a 2015-2020 Toyota Sienna front right strut assembly or a Toyota Sienna suspension strut and coil spring assembly, 920406 provides the listed OE-style mounting configuration and dimensions.

Common Problems This Part Can Address

• Front right suspension noise from a worn strut assembly
• Uneven ride height at the front corner
• Excessive bouncing or reduced damping performance
• Spring fatigue or loss of support in the front suspension
• Need for a direct replacement on a 2015-2020 Toyota Sienna, front right

Installation Notes

Install this assembly only on the listed front right position for 2015-2020 Toyota Sienna models with 7 passenger seating. Verify the upper bolt mount and lower bracket mount before installation, and confirm suspension orientation matches the vehicle side. Because mounting hardware is not listed as included, reuse or replacement hardware should be verified during service. A professional alignment is recommended after suspension replacement.

Quality Assurance

PRT Performance Ride 920406 uses Q235B housing material and 55Crsi spring material for a service replacement built to match the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
