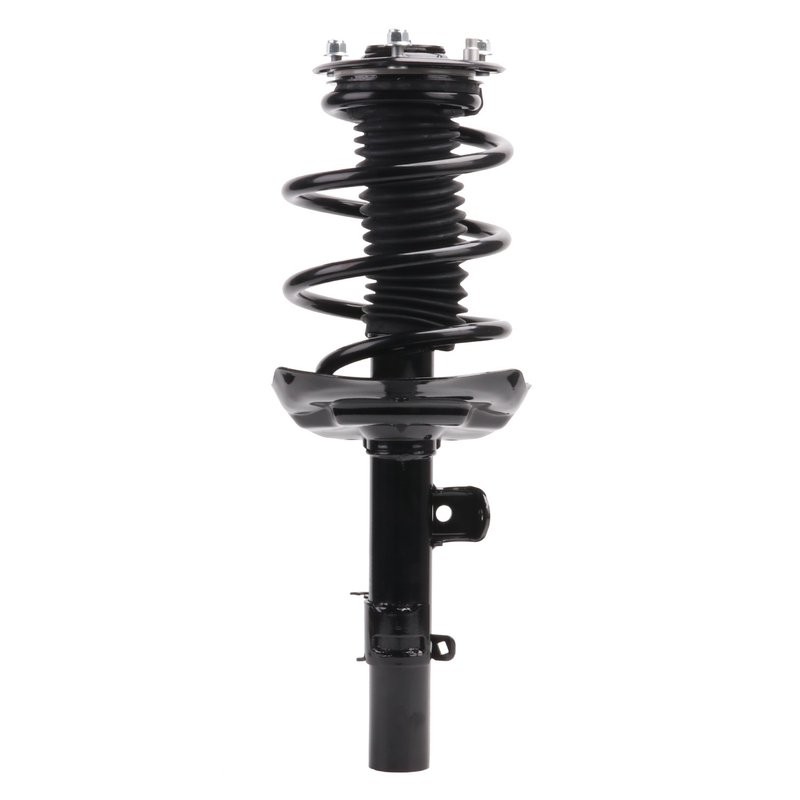

PRT Performance Ride 920415 Suspension Strut and Coil Spring Assembly - Front Left
| Brand | PRT Performance Ride 920415 |
|---|---|
| Position | Front Left |
| Compressed Length | 11.42 |
| Travel Length | 6.73 |
| Spring Material | Tdcrsi |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Housing Material | Q235b |
| Relaxed Length | 18.15 |
| Lower Mount Type | Insert |
| Upper Mount Type | Bolt |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Progressive Spring Rate | No |
| Dust Shield Included | Yes |
| Spring Coil Quantity | 1 |
| Product line | PRT Suspension Strut and Coil Spring Assembly |
| Fits | Acura · 4 vehicles |
Strut and coil spring assembly. Combines suspension support and springing in one unit.
Dust shield included. Helps protect the assembly from road debris and wear.
Steel housing. Built with Q235B housing material for durable support.
Front Left Strut Assembly for Acura TLX
PRT Performance Ride 920415 is a suspension strut and coil spring assembly for the front left position on select 2015-2018 Acura TLX models. It combines the strut body and coil spring in one service assembly to restore ride height and front suspension control.
Built for the Acura TLX front left corner, this assembly uses a bolt upper mount and insert lower mount. The housing is made from Q235B steel, the spring material is TDCrsi, and a dust shield is included for added protection around the strut shaft.
Key Features
- Fits 2015-2018 Acura TLX, front left
- PRT Suspension Strut and Coil Spring Assembly line
- Part number 920415
- Compressed length: 11.42 in; relaxed length: 18.15 in; travel length: 6.73 in
- Upper mount type: bolt; lower mount type: insert
- Housing material: Q235B steel
- Spring material: TDCrsi with one coil spring
- Dust shield included
- No adjustable damping or rebound
- No progressive spring rate
Product Details
The PRT Suspension Strut and Coil Spring Assembly line focuses on direct-fit suspension service parts for vehicles that need a complete front corner replacement. On this Acura TLX application, PRT 920415 provides a matched strut and spring setup that supports consistent front-end ride characteristics and simplifies replacement of worn suspension components. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Front-left ride height loss on a 2015-2018 Acura TLX
- Noise or clunking from a worn strut assembly
- Uneven front suspension response during braking or cornering
- Replacement of a leaking or fatigued front strut
- Service for a sagging or weakened coil spring
Installation Notes
Fits 2015-2018 Acura TLX, front left. Verify mount style, position, and suspension configuration before installation. Because mounting hardware is not included, reuse or source the required fasteners as needed. After installation, perform a wheel alignment and confirm proper ride height and steering wheel center.
Quality Assurance
PRT Performance Ride supplies suspension components built around OE-style fitment and application-specific construction. Part number 920415 is engineered for the listed Acura TLX front left application and uses a steel housing with a protective dust shield for service durability.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Acura | TLX | Automatic | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
| 2017 | Acura | TLX | Automatic | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
| 2016 | Acura | TLX | Automatic | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
| 2015 | Acura | TLX | Automatic | 3.5L | V6 | Front Left | PRT Suspension Strut and Coil Spring Assembly |
