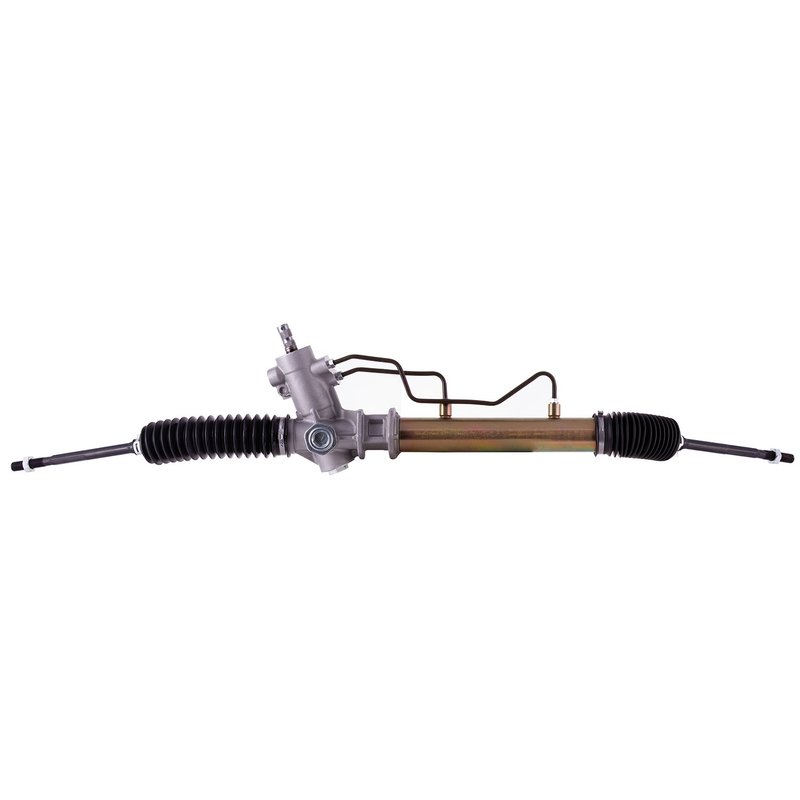

PWR 42-1663 Rack and Pinion Assembly

PWR 42-1663 Rack and Pinion Assembly

PWR 42-1663 is a hydraulic rack and pinion assembly for select Toyota Corolla, Chevrolet Prizm, and Geo Prizm applications. It is built as a direct-fit replacement to simplify installation and is engineered for steering performance, leak control, and consistent function.

Key Features

• Hydraulic rack and pinion assembly
• Direct-fit design for easier replacement
• Inner tie rods included
• Gasket or seal included
• 36-spline steering input shaft
• 17.3 mm steering input shaft diameter
• Female inlet and outlet line fittings
• 1185 mm end-to-end length
• 3.1 turns lock-to-lock

Detailed Description

This PWR rack and pinion assembly is engineered for steering systems that require hydraulic assist and OE-style fitment. The unit is USA engineering approved and tested for leaks, pressure, noise, and function before release. With inner tie rods included and seals supplied, it supports a cleaner replacement process on 1993-1997 Toyota Corolla, 1998-2002 Toyota Corolla, 1993-1997 Geo Prizm, and 1998-2002 Chevrolet Prizm applications. This part cross-references Maval 9191M for the same application.

What It Helps Fix

• Steering play or looseness in the rack assembly
• Hydraulic fluid leaks from worn rack seals
• Noisy or inconsistent steering assist
• Binding or rough steering response
• Wear-related steering performance loss

Installation Notes and Tips

• Verify spline count, shaft diameter, and line fitting sizes before installation.
• Inspect hydraulic lines and related steering components for wear before reassembly.
• Because mounting hardware and brackets are not included, reuse or source the correct vehicle-specific hardware as needed.
• Perform a professional alignment after installation.
• Bleed the power steering system thoroughly to remove air from the hydraulic circuit.

Quality Assurance

PWR states that its pumps, racks, and gears are tested for leaks, pressure, noise, and function, and this assembly is backed by that inspection process. The direct-fit design and engineering approval support a dependable replacement for Toyota Corolla, Chevrolet Prizm, and Geo Prizm steering service.
