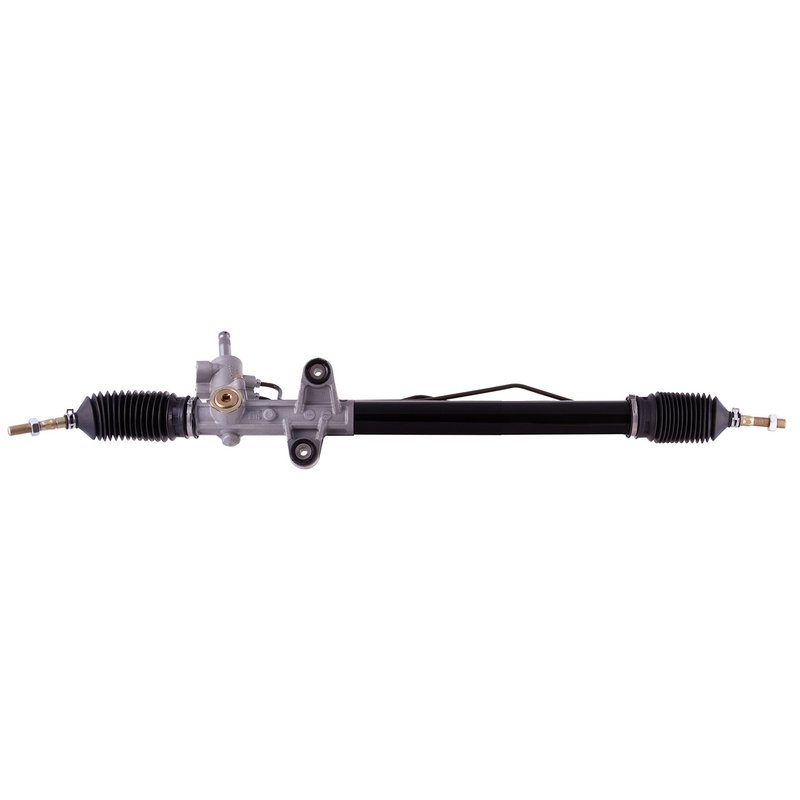

PWR 42-1723 Rack and Pinion Assembly
| Brand | PWR 42-1723 |
|---|---|
| End To End Length | 1060 |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Inlet Line Fitting Diameter | 14 |
| Inlet Line Fitting Gender | Female |
| Inner Tie Rods Included | Yes |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Outer Tie Rods Included | No |
| Outlet Line Fitting Diameter | 16 |
| Outlet Line Fitting Gender | Female |
| Steering Input Shaft Diameter | 16.4 |
| Steering Input Shaft Spline Quantity | 36 |
| Total Turns Lock To Lock | 3.1 |
| Type | Hydraulic |
| Fits | Acura and Honda · 14 vehicles |
Direct fit. Makes installation easy with a straightforward replacement.
Hydraulic design. Delivers responsive steering performance through a proven system.
Seal included. Helps simplify installation with a gasket or seal already provided.
Cross-references Anchor 3421, Maval 9312M and Standard Ignition 2029 for the same application. See all 7.
PWR 42-1723 Rack and Pinion Assembly
PWR 42-1723 is a hydraulic rack and pinion assembly built for direct-fit replacement on select Acura CL and Honda Accord applications. It is engineered for straightforward installation and is 100% tested for leaks, pressure, noise, and function before release.
Key Features
- Hydraulic rack and pinion assembly for steering system service
- Direct-fit design for easier installation on confirmed applications
- Inner tie rods included; outer tie rods not included
- Gasket or seal included for sealing support during installation
- USA engineering approved
- End-to-end length: 1060
- 3.1 turns lock to lock
- 36-spline steering input shaft with 16.4 diameter
- Female inlet and outlet line fittings
Detailed Description
This PWR rack and pinion assembly is built for hydraulic steering systems and is intended for vehicles that require a direct replacement unit with the specified input shaft, line fitting, and mounting dimensions. It cross-references Standard Ignition 2029 for the same application. Use PWR 42-1723 when servicing steering response, fluid sealing, or rack wear on 1998-2002 Honda Accord, 2001-2003 Acura CL, and 2000 Honda Accord with ID #S82 A5. The part number 42-1723 is also a useful reference when verifying the correct steering gear before ordering.
What This Part Helps Address
- Steering play or looseness caused by worn rack internals
- Hydraulic fluid leakage from a failing rack and pinion assembly
- Noise or rough steering feel during turning
- Incorrect steering response from a damaged or worn steering gear
- Fitment issues when replacing the original rack on Acura CL or Honda Accord models
Installation Notes and Tips
- Confirm the 36-spline input shaft, 16.4 shaft diameter, and 14 mm inlet / 16 mm outlet fitting sizes before installation.
- Mounting hardware and mounting brackets are not included.
- Outer tie rods are not included; inner tie rods are included.
- Verify vehicle identification details, including the 2000 Honda Accord note with ID #S82 A5, before ordering.
- Bleed the hydraulic steering system after installation and inspect all line connections for leaks.
Quality Assurance
PWR states that its racks and gears are tested for leaks, pressure, noise, and function, and this unit is USA engineering approved. The part number 42-1723 is built to meet the listed fitment and dimensional requirements for confirmed Acura CL and Honda Accord applications.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003 | Acura | CL | Base | — | 3.2L | V6 | N/A | — |
| 2002 | Acura | CL | Base | — | 3.2L | V6 | N/A | — |
| 2002 | Honda | Accord | — | Sedan | 2.3L | L4 | N/A | — |
| 2002 | Honda | Accord | — | Coupe | 2.3L | L4 | N/A | — |
| 2002 | Honda | Accord | — | Coupe | 3.0L | V6 | N/A | — |
| 2001 | Acura | CL | Premium | — | 3.2L | V6 | N/A | — |
| 2001 | Honda | Accord | — | Sedan | 2.3L | L4 | N/A | — |
| 2001 | Honda | Accord | — | Coupe | 2.3L | L4 | N/A | — |
| 2001 | Honda | Accord | — | Coupe | 3.0L | V6 | N/A | — |
| 2000 | Honda | Accord | — | Sedan | 2.3L | L4 | N/A | — |
| 2000 | Honda | Accord | — | Coupe | 2.3L | L4 | N/A | With ID #S82 A5 |
| 2000 | Honda | Accord | — | Coupe | 3.0L | V6 | N/A | With ID #S82 A5 |
| 1999 | Honda | Accord | — | Sedan | 2.3L | L4 | N/A | — |
| 1998 | Honda | Accord | — | Sedan | 2.3L | L4 | N/A | — |
