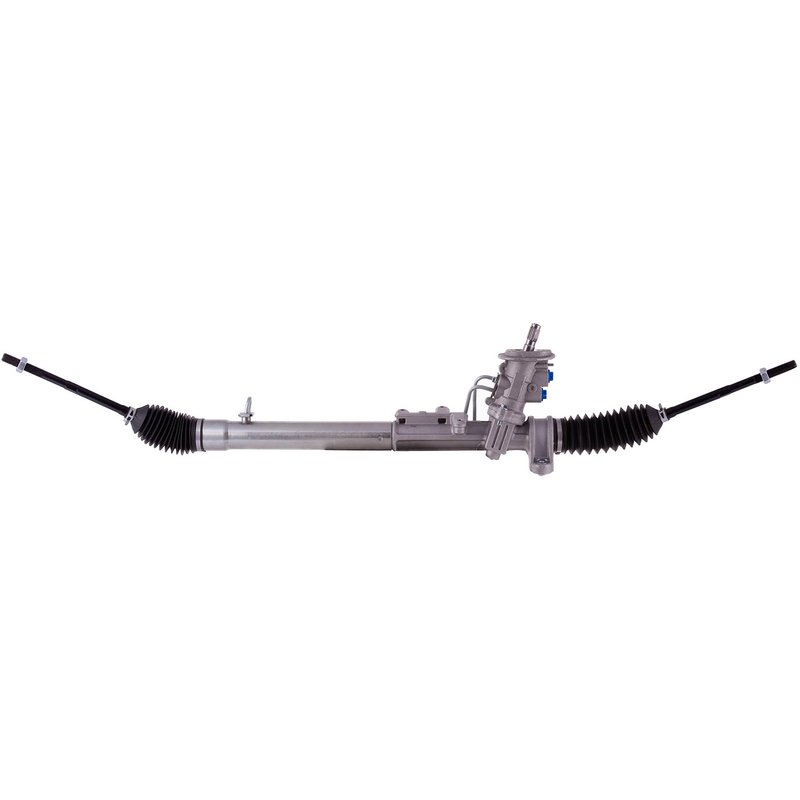

PWR 42-1731 Rack and Pinion Assembly

Reliable Hydraulic Rack and Pinion Assembly for Volkswagen Models

The PWR 42-1731 hydraulic rack and pinion assembly is engineered for precise steering control in Volkswagen Beetle, Golf, Jetta, and R32 models. Designed to meet regular grade specifications, this component ensures consistent performance and durability for your vehicle's steering system.

• Hydraulic type rack and pinion assembly
• Includes inner tie rods and gasket/seal for secure installation
• Two mounting holes with 1260mm end-to-end length
• Steering input shaft with 25 splines and 16.4mm diameter
• Female inlet and outlet line fittings with 14mm and 16mm diameters respectively
• Total steering turns lock to lock: 3.1
• Compatible with Volkswagen Beetle, Golf, Jetta, and R32

Detailed Product Description

The PWR 42-1731 rack and pinion assembly is a hydraulic steering component designed specifically for select Volkswagen models including the Beetle, Golf, Jetta, and R32. This assembly features a 1260mm end-to-end length and two mounting holes for secure attachment. It includes inner tie rods and a gasket or seal to maintain system integrity and prevent leaks. The steering input shaft is engineered with 25 splines and a diameter of 16.4mm, ensuring precise steering input transfer. Both inlet and outlet line fittings are female, with diameters of 14mm and 16mm respectively, compatible with standard hydraulic steering lines. The total steering turns from lock to lock is 3.1, providing responsive and controlled steering feel.

Common Applications and Problem Resolution

• Restores steering precision in Volkswagen Beetle, Golf, Jetta, and R32 models
• Replaces worn or leaking hydraulic rack and pinion assemblies
• Addresses steering play or excessive free play issues
• Eliminates hydraulic fluid leaks from seals or fittings
• Improves steering response and handling stability

Installation Notes and Tips

• Mounting hardware and brackets are not included; reuse existing components or source separately
• Ensure proper alignment of the two mounting holes during installation
• Verify compatibility of inlet and outlet line fittings with vehicle hydraulic lines
• Inspect and replace outer tie rods separately if needed, as they are not included
• Bleed the hydraulic steering system thoroughly after installation to remove air

Quality Assurance and Warranty

The PWR 42-1731 rack and pinion assembly is manufactured to meet regular grade standards for durability and performance. It includes a gasket or seal to ensure leak-free operation. While mounting hardware and brackets are not included, the assembly is designed for direct compatibility with specified Volkswagen models. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
