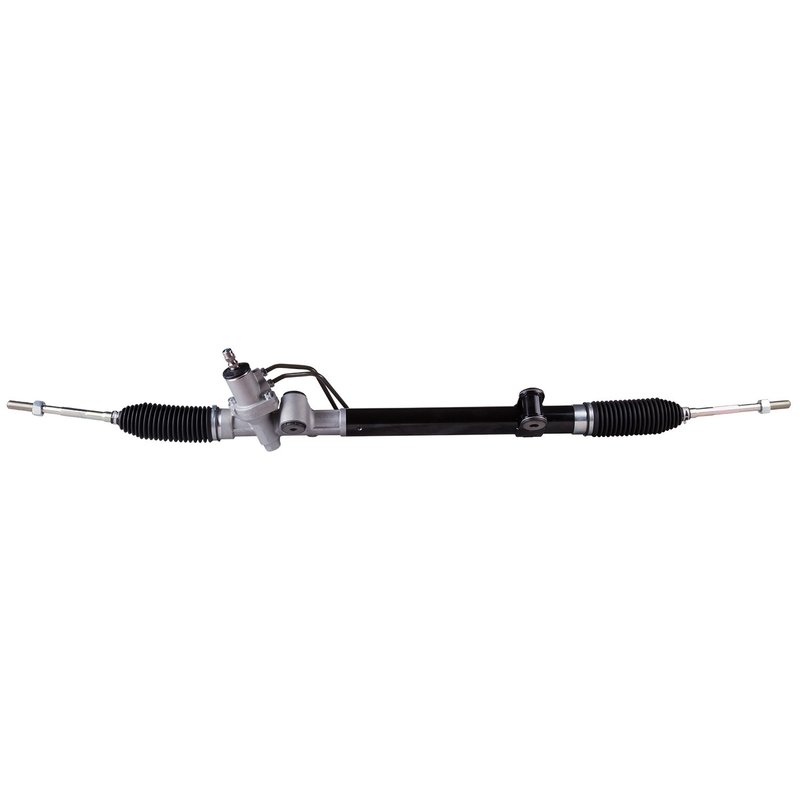

PWR 42-2098 Rack and Pinion Assembly

Reliable Hydraulic Rack and Pinion Assembly for Toyota Tacoma

The PWR 42-2098 hydraulic rack and pinion assembly is designed specifically for Toyota Tacoma models, providing precise steering control and durability. Engineered to meet regular grade standards, this component ensures consistent performance for your vehicle's steering system.

Key Features of PWR 42-2098 Rack and Pinion Assembly

• Hydraulic type rack and pinion for smooth steering response
• Includes inner tie rods and gasket/seal for secure installation
• Two mounting holes for proper fitment and stability
• End-to-end length of 1266 mm suitable for Toyota Tacoma
• 36 spline steering input shaft with 17.3 mm diameter
• Female inlet and outlet line fittings with 16 mm and 17 mm diameters respectively
• Total steering turns lock to lock: 3.5 for controlled maneuvering

Detailed Description of the PWR 42-2098 Steering Component

This hydraulic rack and pinion assembly from PWR is engineered to replace the steering gear in Toyota Tacoma vehicles. The assembly features a 36-spline input shaft with a diameter of 17.3 mm, ensuring compatibility with the factory steering column. The unit includes inner tie rods and a gasket or seal to maintain hydraulic integrity and prevent leaks. With two mounting holes, the assembly secures firmly to the vehicle chassis, maintaining alignment and steering precision. The female inlet and outlet line fittings, sized at 16 mm and 17 mm respectively, allow for proper hydraulic fluid flow. The total lock-to-lock turns of 3.5 provide a balance between responsive steering and control, suitable for daily driving conditions.

Common Applications and Problem Solving

• Replacement for worn or leaking hydraulic rack and pinion in Toyota Tacoma
• Restores steering precision and reduces play or looseness in the steering wheel
• Addresses hydraulic fluid leaks due to damaged seals or fittings
• Improves vehicle handling by correcting misaligned or damaged steering components
• Suitable for Tacoma models requiring a 1266 mm end-to-end rack length

Installation Notes and Tips

• Mounting hardware and brackets are not included; reuse existing components or source separately
• Ensure proper alignment of the two mounting holes during installation for optimal steering performance
• Verify compatibility with your Toyota Tacoma model year before installation
• Bleed the hydraulic steering system thoroughly after installation to remove air and ensure smooth operation
• Inspect and replace outer tie rods separately if necessary, as they are not included

Quality Assurance and Warranty Information

The PWR 42-2098 rack and pinion assembly is manufactured to meet industry standards for regular grade steering components. It includes a gasket or seal to maintain hydraulic system integrity. While mounting hardware and brackets are not included, the assembly is designed for direct fitment on compatible Toyota Tacoma models. Warranty details should be confirmed with the product provider, as coverage may vary.
