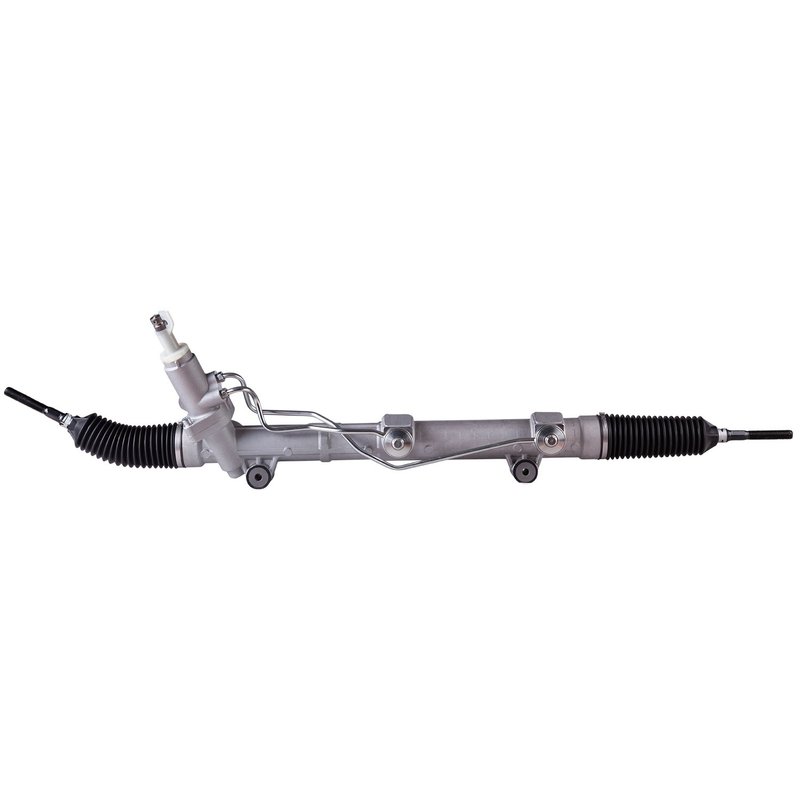

PWR 42-2323 Rack and Pinion Assembly

PWR 42-2323 Rack and Pinion Assembly

PWR 42-2323 is a hydraulic rack and pinion assembly built for direct-fit replacement on select Mercedes-Benz SUVs. It is engineered for straightforward installation and is 100% tested for leaks, pressure, noise, and function before release.

• Hydraulic rack and pinion assembly
• Direct-fit design for easier installation
• USA engineering approved
• Gasket or seal included
• Mounting brackets included
• Inner tie rods included
• 54-spline steering input shaft
• 16.8 mm steering input shaft diameter
• Female inlet and outlet line fittings, 11 mm
• 3.11 turns lock to lock

Vehicle Fitment

• Fits 2010-2012 Mercedes-Benz GL350, N/A, with hydraulic power steering.
• Fits 2008-2012 Mercedes-Benz GL450, N/A.
• Fits 2008-2012 Mercedes-Benz GL550, N/A.
• Fits 2010-2011 Mercedes-Benz ML350, N/A.
• Fits 2010-2011 Mercedes-Benz ML350, N/A, with hydraulic power steering.
• Fits 2010-2011 Mercedes-Benz ML450, N/A.
• Fits 2010-2011 Mercedes-Benz ML550, N/A.
• Fits 2008-2009 Mercedes-Benz GL320, N/A.
• Fits 2007-2009 Mercedes-Benz ML320, N/A, excluding speed sensitive steering.
• Fits 2006-2009 Mercedes-Benz ML350, N/A, excluding speed sensitive steering.
• Fits 2008-2009 Mercedes-Benz ML550, N/A, excluding speed sensitive steering.
• Fits 2007-2009 Mercedes-Benz ML63 AMG, N/A, excluding speed sensitive steering.
• Fits 2006-2007 Mercedes-Benz ML500, N/A, excluding speed sensitive steering.

Detailed Description

This PWR rack and pinion assembly is built for Mercedes-Benz GL-Class and ML-Class vehicles that use hydraulic steering. The unit includes inner tie rods, mounting brackets, and seals, and it is configured with female 11 mm inlet and outlet fittings, a 54-spline input shaft, and a 3.11 lock-to-lock ratio. PWR 42-2323 cross-references Cardone New 97-4022 for the same application.

Common Repair Symptoms

• Steering play or looseness at the wheel
• Fluid leakage from the steering gear
• Noise during steering input
• Uneven or inconsistent steering response
• Wear-related failure in the original rack and pinion assembly

Installation Notes

Verify hydraulic power steering configuration and confirm whether the vehicle is listed with or without speed sensitive steering before ordering. Compare the input shaft spline count, shaft diameter, and line fitting sizes to the original unit before installation. Because mounting hardware is not included, reuse or source the required fasteners as needed during replacement.

Quality Assurance

PWR states that its pumps, racks, and gears are tested for leaks, pressure, noise, and function, and that this unit is USA engineering approved. That testing helps support consistent steering performance on Mercedes-Benz GL350, GL450, GL550, ML350, ML450, ML550, GL320, ML320, ML63 AMG, and ML500 applications covered by the fitment data.
